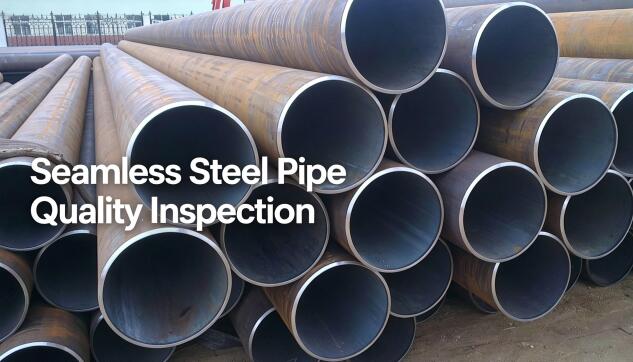

Quality Inspection of Seamless Steel Pipe

Seamless steel pipes & tubes are widely used in the petroleum, chemical, and natural gas industries, and their quality directly affects the safety and reliability of the entire pipeline system. Therefore, strict quality inspection must be carried out during the production process.

This guide provides a complete overview of seamless steel pipe quality inspection methods, covering dimensional inspection, mechanical testing, non-destructive testing (NDT), and hydrostatic testing. It also includes a quick reference table of key international standards (ASTM, API, GB) to help engineers and buyers understand the full quality assurance framework.

1. Dimensional & Geometric Inspection

Dimensional inspection is the most basic step in quality control. It ensures the pipe meets specified size tolerances and is suitable for installation and connection.

Key inspection items:
● Outer diameter (OD): Checked with calipers or micrometers to ensure compliance with standard specifications (e.g., ASTM A530).
● Wall thickness: Measured with ultrasonic thickness gauges or mechanical micrometers to detect eccentricity or insufficient thickness.
● Length: Verified with steel tape measures to ensure compliance with ordered length requirements (e.g., single random length, double random length).
● Straightness: Checked with straightedges or laser alignment tools to ensure the pipe is free from excessive bending.
● Ovality: Measured to verify that the pipe's cross-section remains round within allowable tolerances.

Common standards: ASTM A530, ASME B36.10.

2. Mechanical & Performance Testing

Mechanical properties testing verifies that the pipe material meets the required strength, hardness, and ductility for its intended application. These tests are typically performed on samples cut from the pipe.

Key test types:
● Tensile test: Measures tensile strength, yield strength, and elongation. Performed according to ASTM A370.
● Hardness test: Evaluates material hardness using Rockwell, Brinell, or Vickers methods.
● Impact test: Measures toughness at low temperatures (e.g., Charpy V-notch test) for critical applications.
● Flattening test: Checks the pipe's ability to deform under compression without cracking (common for welded and seamless pipes).
● Flaring test: Evaluates the pipe's ability to expand without failure.
● Bending test: Verifies ductility and bendability for structural applications.

Common standards: ASTM A370, ASTM E23, GB/T 229.

3. Non-Destructive Testing (NDT)

Non-destructive testing is used to detect internal and surface defects in seamless steel pipes without damaging the pipe. Common NDT methods include:

● Ultrasonic Testing (UT): Uses high-frequency sound waves to detect internal defects (inclusions, cracks, voids). Deep penetration, high accuracy.
● Eddy Current Testing (ET): Detects surface and near-surface defects in conductive materials. Fast, no couplant needed.
● Magnetic Flux Leakage Testing (MFL): Detects surface and near-surface defects in ferromagnetic materials.
● Magnetic Particle Testing (MT): Detects surface and near-surface defects in ferromagnetic materials. Simple, low cost, high sensitivity.
● Penetrant Testing (PT): Detects surface-open defects (cracks, porosity). Works on all materials.

▶ For a detailed breakdown of each NDT method, their advantages, limitations, and applicable standards, see our dedicated guide: [Seamless Steel Pipe Non-Destructive Testing (NDT): Methods & Selection].

Common standards: ASTM E213 (UT), ASTM E309 (ET), ASTM E1444 (MT).

4. Hydrostatic Testing

Hydrostatic testing is a mandatory quality assurance step for most seamless steel pipes. It verifies the pipe's ability to withstand internal pressure without leaking or bursting.

Key points:
The pipe is filled with water and pressurized to a specified test pressure (e.g., 1.5× design pressure per ASME B31.3).
The pressure is held for a required duration (e.g., ≥5 seconds per ASTM A53).
The pipe is inspected for pressure drop, visible leaks, or deformation.

Common standards: ASTM A53, API 5L, ASME B31.3, GB/T 8163.

▶ For a complete guide to hydrostatic test procedure, pressure calculation, and holding time requirements, see our detailed article: [Seamless Steel Pipe Hydrostatic Test: Complete Guide].

Seamless Steel Pipe Inspection: Standards Reference

FAQs

Q1: What is the difference between NDT and mechanical testing?
A: NDT (non-destructive testing) detects defects without damaging the pipe (e.g., ultrasonic, eddy current). Mechanical testing involves cutting samples from the pipe and testing them to failure to verify strength, hardness, and toughness.

Q2: Is hydrostatic testing mandatory for all seamless pipes?
A: Yes, for most standards (ASTM A53, API 5L, GB/T 8163), hydrostatic testing is a mandatory requirement. However, some standards allow NDT as an alternative if accepted by the purchaser.

Q3: What is the most common NDT method for seamless steel pipes?
A: Ultrasonic Testing (UT) and Eddy Current Testing (ET) are the most common due to their speed, accuracy, and ability to be automated for production-line inspection.

Q4: How do ASTM and GB standards differ?
A: ASTM standards (e.g., ASTM A53, A106) are widely used internationally, especially in North America. GB standards (e.g., GB/T 8163, GB/T 5777) are Chinese national standards with similar scope but may have different testing parameters, tolerances, and classification systems.

Q5: What is the most critical quality inspection for seamless pipes?
A: It depends on the application. For general use, hydrostatic testing is essential. For high-pressure or critical service, a combination of UT (for internal defects) and mechanical testing is considered the most reliable approach.
