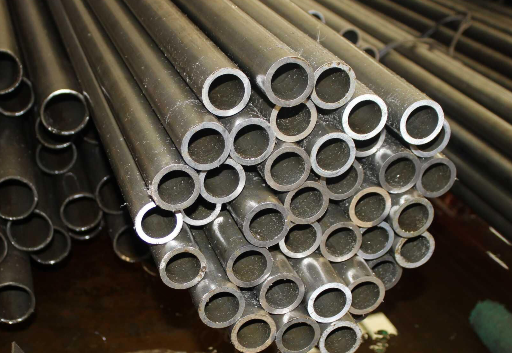

What is Carbon Steel Pipe?

Carbon Steel Pipe (CS pipe) is a durable material made of carbon steel, which is a steel alloy of iron and carbon that contains less than 2% carbon. Carbon steel can be further divided into low carbon steel, medium carbon steel and high carbon steel, mainly depending on the carbon content in the steel. Due to its strength and ability to withstand pressure, carbon steel pipes are used in a variety of heavy industries such as infrastructure, ships, stills, and fertilizer equipment.

Advantages of Carbon Steel Pipes:

1. Carbon steel piping provides safety and durability. It is an ideal material for structural applications due to its impact resistance and its imperceptibility to harsh environmental conditions such as stress or extreme weather.



2. The superior strength of carbon steel means that carbon steel pipe can be made thinner, using less material, while still being able to transport large quantities of material. Compared with stainless steel and alloy steel pipes, carbon steel pipe has lower raw material costs, making it an economical and efficient material. Furthermore, carbon steel is recyclable, making it both environmentally friendly and economical.



3. Carbon steel pipe is a versatile material due to its ease of fabrication. We can produce products in various thicknesses and sizes. It's also easy to cut and bend to fit wherever needed. It also connects easily to fittings, valves and other plumbing fittings.

Types and Grades of Carbon Steel:

1. Classification by Carbon Content (The Most Intuitive Method)

This is the most basic classification of CS materials and directly determines the steel's strength, hardness, and plasticity.

Type	Carbon Content	Characteristics	Common Grade Examples	Welding Performance
Low Carbon Steel (Mild Steel)	0.02%-0.25%	Good ductility and toughness, can be hot-worked or cold-worked, lower strength and hardness	20#, Q235, ASTM A36, AISI 1020, S235, C22E	Good
Medium Carbon Steel	0.25%-0.60%	High strength and hardness, poor ductility and toughness	45#, AISI 1045, C45E	Average
High Carbon Steel	0.60%-2.11%	High strength and hardness, poor ductility and toughness, not suitable for welding	65#, 65Mn, AISI 1065, T8/T8A, T10/T10A, AISI W1/W2, C60E, C80U	Poor (requires special processing)

2. Classification by Application and Form

This is a very practical classification method in engineering and procurement.

a. Carbon Structural Steel: Used for manufacturing engineering structures (buildings, bridges) and mechanical parts. Emphasizes mechanical properties (strength and toughness).

For example: ASTM A36: General-purpose structural steel
ASTM A500 Gr.B/Gr.C: Used for manufacturing structural hollow sections (square, rectangular, and round tubes).
ASTM A53 Gr.B: Used for pressurized fluid transportation and structural applications. In the structural pipe industry, ASTM A53 welded pipe is the absolute mainstream and preferred choice. A53 seamless pipe is generally only used for structural components in specific circumstances.
GB/T 700: Q235
GB/T 699: 20, 35, 45 (high-quality carbon structural steel)

b. Carbon Tool Steel: Used for manufacturing cutting tools, gauges, and molds. Emphasizes high hardness and wear resistance.
For example: AISI: W1, W2;
GB/T 1298: T8, T10A.

c. Specialty Carbon Steel: Standards developed for specific industries or products.
For example: ASTM A53/ASTM A106: Carbon steel for seamless steel pipe (Gr. B)
ASTM A516: Steel for medium and low temperature pressure vessels (Gr. 60/70)
GB/T 713: Steel for boilers and pressure vessels (Q245R)

Classification of Carbon Steel Pipe:

Carbon steel pipes can be divided into seamless pipes and welded steel pipes according to the production method:

1) Seamless Steel Pipes: Manufactured using hot-rolling or cold-rolling (drawing) processes, these pipes are characterized by high strength and excellent sealing. Seamless steel pipes have no weld seams, which is the fundamental difference between them and welded steel pipes.

a. Hot-rolled carbon steel pipes

These pipes generally have an outer diameter greater than 32mm and a wall thickness between 2.5-75mm. Hot-rolled seamless steel pipes are mainly used for ordinary steel pipes, medium and low-pressure boiler tubes, high-pressure boiler tubes, alloy steel pipes, oil cracking pipes, geological steel pipes, and other special-purpose steel pipes.

b. Cold-rolled (drawn) carbon steel pipes

Compared to hot-rolled carbon steel pipes, cold-rolled carbon steel pipes have higher dimensional accuracy, with an outer diameter reaching 6mm and a wall thickness reaching 0.25mm. Types of cold-rolled seamless steel pipes include carbon thin-walled steel pipes, alloy steel thin-walled steel pipes, and shaped steel pipes. These pipes are commonly used in precision engineering machinery tubing, hydraulic equipment, and mechanical parts, such as shafts, bearings, sleeves, and transmission parts.

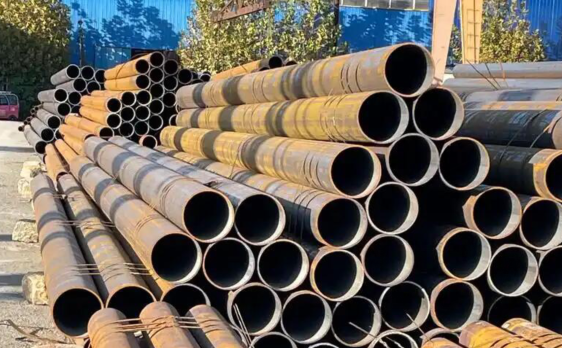

2) Welded steel pipes: Made by rolling steel plates or strips into cylindrical shapes and then joining them using welding processes such as resistance welding and submerged arc welding.

Furthermore, carbon steel pipes can be further subdivided according to the weld shape:

Weld Type	Abbreviation	Brief Description
Seamless steel pipe	SMLS	No weld seam, integrally formed.
High-frequency straight seam welded steel pipe	ERW	Welded using high-frequency current, suitable for small and medium diameters.
Straight seam submerged arc welded steel pipe	LSAW	Straight weld seam, submerged arc welding, suitable for large diameters.
Spiral seam submerged arc welded steel pipe	SSAW	Spiral weld seam, suitable for large-diameter long-distance pipelines.

These classifications are based on different manufacturing processes and application requirements to meet various industrial and civil needs.

Application Fields of Carbon Steel Pipe:

Carbon steel pipe has good corrosion resistance, pressure bearing capacity and machinability, and is widely used in many fields.

1. Oil and natural gas industry: Carbon steel pipe is an important pipeline material for transporting oil and natural gas, with high strength, reliability and corrosion resistance.
2. Construction and structural engineering: Carbon steel pipes are used in construction and structural engineering, such as bridges, high-rise buildings, roads and tunnels, etc., to support and transmit loads.
3. Automobile manufacturing industry: Carbon steel pipes are used in exhaust pipes, frame and chassis and other components in the automobile manufacturing industry, and have good wear resistance and strength.
4. Mechanical engineering: Carbon steel pipes are used in conveying systems, pressure vessels, hydraulic systems and other components in mechanical engineering, and have pressure bearing capacity and reliability.

5. Chemical industry: Carbon steel pipes are used in the chemical industry for conveying systems, reactors, storage tanks and other components, with corrosion resistance and high temperature resistance.

Go here to learn more about" Carbon Steel Pipe Sizes" or  "Schedule 80 Carbon Steel Pipe"

Carbon Steel Material Introduction:

Carbon steel, as a type of steel material, mainly consists of iron and carbon. The carbon content will affect the hardness, strength and plasticity of the steel. This steel is one of the most commonly used materials in industry and construction and is widely used due to its relatively low cost and easy workability. According to the different carbon content, carbon steel can be divided into three categories: low carbon steel (mild steel pipe), medium carbon steel and high carbon steel.

1) Chemical composition and properties of carbon steel

The performance of carbon steel mainly depends on its chemical composition. The main elements include:
• Carbon (C): Increases hardness and strength, decreases plasticity.
• Manganese (Mn): Enhances hardness, improves weldability and impact toughness.
• Silicon (Si): Increases strength, but excessive amounts reduce plasticity and toughness.
• Sulfur (S) and Phosphorus (P): Usually present as impurities, excess can reduce the properties of steel.

2) Physical properties of carbon steel

The physical properties of carbon steel are mainly reflected in:
• Mechanical properties: including tensile strength, yield strength, hardness and toughness, etc.
• Heat treatability: Heat treatments such as annealing, normalizing, quenching and tempering can be carried out to change the internal structure of the steel to obtain different properties.
• Weldability: Low carbon steel has good weldability, while high carbon steel is prone to cracks during welding due to its high hardness.

3) Carbon steel processing technology

There are various processing techniques for carbon steel, the main techniques are:
• Cold working: such as cold rolling, cold drawing, etc., can improve the strength and hardness of steel.
• Hot processing: such as hot rolling, forging, etc., usually performed after heating to a certain temperature to obtain the required shape and size.
• Surface treatment: Such as galvanizing, painting or spraying anti-corrosion layer, etc., which can improve the corrosion resistance of carbon steel.

4) Corrosion resistance of carbon steel

Carbon steel is less resistant to corrosion than other types of steel, such as stainless steel. However, through surface treatment such as galvanizing or coating with special coatings, its ability to resist environmental factors can be improved to a certain extent.

5) Application fields of carbon steel

Due to its excellent performance and economy, carbon steel is widely used in:

• Construction industry: used in building structures, support frames, steel beams, etc.
• Manufacturing: Materials as machine parts, automotive components, tools and cutters.
• Infrastructure: plays an important role in the construction of bridges, railways, and highways.
• Pipeline transportation: Mild steel pipes are widely used to transport water, gas, etc.

6) Sustainability and recycling of carbon steel

Carbon steel meets the requirements of sustainable development due to its high recyclability and renewability. Waste carbon steel materials can be recycled through smelting and reprocessing, reducing resource consumption and environmental impact.

As a basic industrial material, carbon steel plays an important role in various fields. Through continuous research and improvement of its performance, its irreplaceability in modern industry is ensured. With the advancement of technology and the strengthening of awareness of environmental protection, the production and application of carbon steel will pay more attention to efficiency and sustainability.
