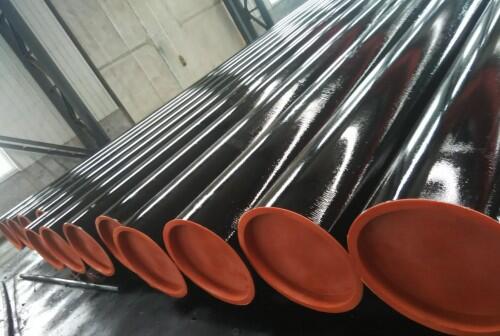

Carbon Steel ERW Pipe Specification

When selecting Carbon Steel ERW (Electric Resistance Welded) Pipes, it's essential to consider various specifications to ensure they meet the requirements of your application. This article examines the common standards, chemical composition, material grades, mechanical properties, and dimensional specifications for CS ERW pipe.

1. Standard Specifications

API 5L ERW: Specifies requirements for line pipe used in the oil and gas industry, covering both seamless and welded pipes.
ASTM A53: Covers black and hot-dipped galvanized welded and seamless steel pipes for mechanical and pressure applications.

ASTM A500: Covers cold-formed welded and seamless carbon steel structural tubing in round, square, and rectangular shapes.

2. Material Grades & Chemical Composition

Common grades for carbon steel ERW pipes include:

● Grade A: Suitable for low-pressure applications.
● Grade B: Higher strength and widely used in oil and gas applications.

● X42, X52, X60, X65: Higher-grade options with enhanced mechanical properties for high-pressure pipelines.

The table below outlines the typical chemical composition for these grades:

3. Mechanical Properties

The mechanical strength varies by grade, ensuring suitability for different pressure environments:

Note:

Yield Strength: Generally ranges from 35,000 psi (Grade A) to 65,000 psi (Grade X65).

Tensile Strength: Typically ranges from 58,000 psi to 80,000 psi depending on the grade.

Elongation: Varies based on thickness but generally ranges from 20% to 30%.

4. Dimensions & Pressure Rating

Nominal Pipe Size (NPS): Typically ranges from 1/2 inch to 24 inches and larger, depending on the application.

Wall Thickness: Varies based on pressure requirements, commonly from schedule 10 to schedule 160 (e.g., Sch 40, Sch 80 pipe).

Pressure Rating Note:

For a given size, the working pressure capacity (erw pipe pressure rating) is directly related to the wall thickness. A Schedule 80 pipe will handle significantly higher pressure than a Schedule 40 pipe. (For specific pressure ratings, refer to ASME B31.3 calculations based on your design conditions.)

5. Coating & Testing

Coatings: Hot-dipped galvanized, polyethylene, or epoxy for corrosive environments.
Testing: Every pipe undergoes hydrostatic testing to ensure pressure integrity. Non-Destructive Testing (NDT), such as ultrasonic or radiographic inspection, is used to verify weld quality.

6. Applications

Suitable for transporting fluids in oil and gas pipelines, construction, and structural applications.
