What is a pipe elbow?

What is a pipe elbow?

A pipe elbow is a pipe fitting used in plumbing systems to connect two pipes of the same or different nominal diameter. It’s bent at an angle to allow straight pipes to be joined at an angle, thereby realizing a change of direction. Of all pipe fittings, pipe elbow is the most widely used one, which is used in a variety of applications in industries such as electrical power, marine, heating, paper making, metallurgy, petrochemical, chemical, oil, gas and so on.

Husteel's pipe elbows are made of a variety of materials, such as alloy steel, carbon steel, stainless steel, etc. The material used depends on the function of the pipe unit. According to the angle, there are three most commonly used elbows: 45°, 90° and 180°. In addition, according to project needs, other abnormal angle elbows such as 60° are also included.

The methods of connecting to pipes include: direct welding (the most common method) flange connection, hot melt connection, electrofusion connection, threaded connection and socket connection, etc.
According to the production process, it can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, butt welding elbow, etc. Other names: 90-degree elbow, right-angle bend, etc.

Elbow usage:

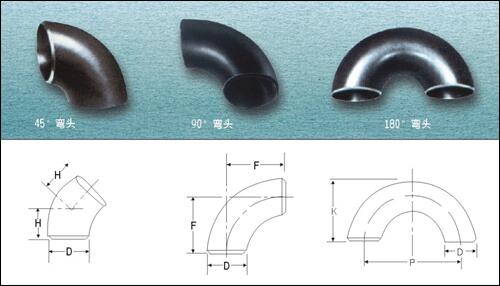

Connect two pipes with the same or different nominal diameters to make the pipes turn at 90° elbow, 45° elbow, 180° elbow and various degrees.

Elbow vs bend pipe: A bend radius less than or equal to 1.5 times the pipe diameter is an elbow, and a bend radius greater than 1.5 times the pipe diameter is a bend pipe.

Standard specification for pipe elbow:

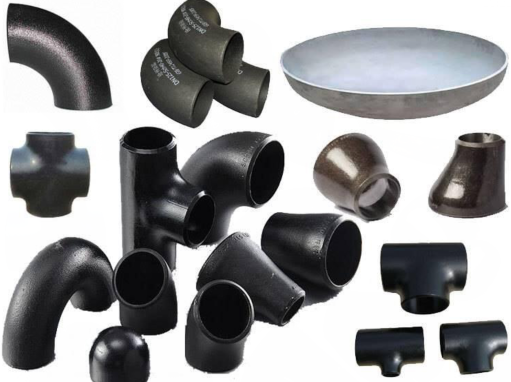

The standard specification for carbon steel pipe fittings is an important guarantee for ensuring the safety and quality of pipeline system operations. Various standard-setting organizations at home and abroad have formulated corresponding standards, such as the international pipe fitting standard ASME B16.9, the domestic steel pipe fitting standard GB/T12459, etc. There are corresponding regulations on the specifications, dimensions, surface treatment, pipe wall thickness, etc. of pipe fittings.

The internationally accepted pipe flange standards can be summarized into two different and non-interchangeable pipe flange systems: one is the European pipe flange system represented by Germany; the other is the American pipe flange system represented by the United States.

Classification of pipe elbows:

1. Divide by material
● Carbon steel:

ASTM/ASME A234 WPB, WPC (Applicable temperature: -29℃ ~ 425℃, general petrochemical piping)

● Alloy steel:

ASTM/ASME A234 WP11, WP22 (Suitable for high-temperature creep conditions, such as steam piping)
ASTM/ASME A234 WP91 (Used for high-temperature and high-pressure piping in ultra-supercritical units)
15CrMoV, 35CrMoV (Commonly used for heat-resistant and wear-resistant pipe fittings)

● Stainless Steel: ASTM/ASME A403
WP304/304L/304H/304LN/304N (Applicable Temperature: -196℃ ~ 870℃)
WP316/316L/316H/316LN/316N/316Ti (Applicable Temperature: -196℃ ~ 870℃, contains molybdenum, superior pitting resistance)
WP321/321H (Applicable Temperature: -196℃ ~ 870℃, titanium stabilized, resistant to intergranular corrosion)
WP347/347H (Applicable Temperature: -196℃ ~ 900℃, niobium stabilized, superior high-temperature strength)

● Low temperature steel: ASTM/ASME A420 WPL3-WPL 6
● High performance pipeline steel fittings: ASTM/ASME A860 WPHY 42/46/52/60/65/70 (mainly used for long-distance pipelines)
● Cast steel (such as ASTM A216 WCB), copper and copper alloys, aluminum alloys, plastics (such as PVC, PPR, RFPP), etc.

2. According to the production method, it can be divided into pushing, pressing, forging, casting, etc.
3. According to manufacturing standards, it can be divided into: Chinese Standard (GB), Petrochemical Standard (SH), Chemical Standard (HG), Power Standard (DL), American Standard (ASTM/ASME), German Standard (DIN), Japanese Standard (JIS), etc.

4. According to its radius of curvature: it can be divided into long radius elbow and short radius elbow. A long-radius elbow means that its radius of curvature is equal to 1.5 times the outer diameter of the pipe, that is, R=1.5D; a short-radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is, R=1.0D. (D is the elbow diameter, R is the radius of curvature).

5. If divided by pressure level: there are about seventeen types, which are the same as the American pipe standards, including: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS, Sch80, Sch100, Sch120, Sch140, Sch160, XXS; the most commonly used ones are STD and XS.

Features:
1. Since most pipe fittings are used for welding, in order to improve the welding quality, the ends are beveled, leaving a certain angle and a certain edge. This requirement is also relatively strict, how thick the edge is, what the angle is, and the deviation. The scope is specified. The surface quality and mechanical properties are basically the same as those of pipes. For ease of welding, the steel grade of the pipe fittings and the pipes being connected should be the same.

2. All pipe fittings must undergo surface treatment. The iron oxide scale on the inner and outer surfaces must be shot blasted and then coated with anti-corrosion paint. This is for export needs. Moreover, domestically, it is also to facilitate transportation and prevent rust and oxidation, so work in this area must be done.

3. It is the requirement for packaging. For small pipe fittings, such as export, they need to be made into wooden boxes, about 1 cubic meter. It is stipulated that the number of elbows in such boxes cannot exceed one ton. The standard allows sets, that is, large sets and small sets. But the total weight generally cannot exceed 1 ton. For large items, they must be packaged individually, such as 24" items. The other is the packaging mark. The mark should indicate the size, steel number, batch number, manufacturer's trademark, etc.

Application fields of pipe elbow:

Elbow is a pipe connecting device, which is mainly used to change the direction of pipes. Its design allows pipes to be connected in horizontal, vertical or oblique positions and to change the flow direction of the pipes. Elbows are widely used in many fields. The following are some common application fields:

1. Construction projects: Elbows are often used in water supply, drainage, HVAC and other systems in construction projects to adjust the direction of water flow and connect different pipes.
2. Chemical engineering: In the chemical process, the flow direction of pipelines needs to be changed frequently. Elbows are used to connect different parts of pipelines to facilitate operation and maintenance.
3. Electric power engineering: Elbows are widely used in power plants, substations and other power systems to connect transmission lines, heat dissipation systems, cooling systems, etc.
4. Petroleum and natural gas engineering: Elbows play a key role in the extraction, transportation and storage of oil and natural gas, and are often used for the connection and flow direction adjustment of oil and gas pipelines.

5. Shipbuilding industry: In shipbuilding, elbows are widely used in pipeline systems, such as water supply and drainage, fire protection, cooling and other systems.
6. Food processing: Elbows are mainly used in pipeline systems for transporting liquids, gases and powder materials in the food processing industry to meet the requirements of different processes.
7. Sewage treatment: In sewage treatment plants, a large number of elbows are used to connect pipes in different parts to facilitate treatment and maintenance.
8. Metallurgical industry: Elbows are widely used in the metallurgical industry, such as steel plants, railway transportation and other fields, to adjust the flow of ore, coke and smelting products.

How to Make Pipe Elbow?

There are three ways to make pipe elbows: hot pushing forming, stamping forming and medium plate welding.

1. Hot push forming
It requires the use of a pushing machine, a mandrel and heating equipment. The finished tube blank is placed on the mandrel and pushed, heated and shaped at the same time. This production speed is fast, suitable for mass production, and the manufactured elbow is , beautiful appearance and relatively uniform thickness.

2. Stamping molding
Depending on the material, you can choose cold pressing or hot pressing. Put the tube blank into the outer mold. After the upper and lower molds are merged, under the push of the press, the tube blank moves along the gap reserved between the inner mold and the outer mold to complete the forming process.

3. Medium plate welding
Medium plate welding is for the production of large elbows. First, cut two middle plates, then use a press to press half of the elbow section, and then weld the two sections together, so that the manufactured elbow will have two welds. Therefore, the welds must be inspected after production to ensure that they meet the standards.

Manufacturing process of pipe elbow fittings:

Quality control of pipe elbow fittings:
Quality control of pipe elbow fittings is the key to ensuring the quality and safety of the pipeline system. The quality inspection of pipe fittings includes appearance quality inspection, chemical composition analysis, physical performance testing, non-destructive testing and other aspects. Only pipe fittings that have passed the inspection can be put into use to ensure the safe and effective operation of the pipeline system.

Wall Thickness Inspection: Uneven wall thickness in elbows is one of the most easily overlooked problems. Standards stipulate that the maximum wall thickness reduction should not exceed 12.5% of the nominal thickness, but on-site measurements have revealed some reductions reaching 20%-30%. These problems are difficult to detect with ordinary calipers and must be detected using an ultrasonic thickness gauge.

Common Quality Problems and Cause Analysis:

1. What are the common quality problems with elbows?

a. Cracks and fissures: Cracks appear on the surface or inside the elbow, sometimes penetrating.
Causes: Raw material defects, improper processing temperature, welding defects, lack of heat treatment.

b. Uneven wall thickness
Causes: Outer arc stretching and inner arc compression deformation during bending.

c. Springback and deformation: Inaccurate bending angle, excessive ellipticity.
Causes: Elastic recovery after plastic deformation.

d. Sealing problems
Causes: Uneven sealing surface, aging sealing material, improper installation.

e. Material and specification mismatch: Incorrect material grade, substandard wall thickness.
Reasons: Inadequate procurement oversight and supplier qualification issues.

f. Excessive hardness: The elbow has excessive hardness and high brittleness.
Reason: Improper heat treatment process after forming.

2. What are the typical causes of elbow cracking?

Based on the analysis and research of multiple failure cases, the most common causes of elbow cracking can be summarized as follows:

(1) Forming process problems
Low forming temperature: Improper temperature control during hot-push elbow forming can lead to insufficient material plasticity and microcracks.
No heat treatment after cold working: After cold bending deformation of the steel pipe, work hardening occurs. If annealing heat treatment at 600-650℃ is not performed, residual stress and hardening will reduce the toughness of the material.

(2) Raw material problems
The billet has metallurgical defects such as central porosity and dendritic segregation.
Excessive chemical composition (such as excessive C and S elements) increases brittleness.
The presence of a large number of non-metallic inclusions (such as MnS and oxides) becomes a source of crack initiation.

(3) Heat Treatment Issues

Stress-relieving annealing is only performed after forming, without normalizing or full annealing, which fails to fundamentally refine the grains and improve the microstructure.
Abnormal microstructures such as Widmanstätten and martensite appear in the metallographic structure, significantly reducing toughness and plasticity.

(4) Service Environment Factors

The medium contains corrosive components such as H₂S, leading to hydrogen-induced cracking.
Corrosion pits exist on the outer surface of the elbow, causing stress concentration.
High residual tensile stress exists, promoting crack initiation and propagation.

FAQ:

1. What is the difference between an elbow and a bend?

The core difference between an elbow and a bend is that an elbow is a "standard part" mass-produced according to standards, while a bend is a "non-standard part" customized on demand. The former has a small radius of curvature and a fixed angle; the latter has a large radius of curvature and a flexible angle.

2. How to choose between long-radius (1.5D) and short-radius (1.0D) elbows? Can a short-radius elbow be used as a substitute?

This directly relates to the safe operation and fluid efficiency of the piping system.

Preferred Choice: Unless installation space is extremely limited, it is strictly forbidden to arbitrarily replace long radius (LR) elbows with short radius (SR) elbows. Long radius elbows (R=1.5D) have lower fluid resistance and less erosion wear, making them the default choice for high-pressure, high-speed, and critical pipelines.

Risk Warning: Short radius elbows have sharp turns, resulting in large abrupt changes in medium flow velocity, significant local pressure drops, and are prone to generating eddies and vibrations. If the design drawings require 1.5D, but the actual supplied elbow is 1.0D, this constitutes a major safety hazard and may cause the pipeline to fail pressure testing or cleaning operations.

3. How to ensure the dimensional accuracy of elbows and avoid uneven wall thickness or angle deviations?

Professional manufacturers strictly control production tolerances according to standards (such as ASME B16.9). For example, for large-diameter or high-pressure elbows, an additional wall thickness is added during production (e.g., using a 114×4 pipe to produce a 114×3.5 elbow) to ensure the wall thickness at the back arc is not lower than the standard requirement.

During acceptance, do not rely solely on calipers to measure the port; an ultrasonic thickness gauge must be used to check the wall thickness of the elbow's back and side arcs. The thinning amount should not exceed 12.5% of the nominal thickness. Simultaneously, checking whether four 90° elbows can be joined to form a flat circular ring is a quick and simple method to verify angle accuracy.

4. What is the difference between cold-push/cold-pressed elbows and hot-push elbows?

Hot-push processing involves heating the pipe blank before pushing it, resulting in uniform deformation, low stress, and more uniform wall thickness. While cold-push/cold-pressing processes produce a more aesthetically pleasing appearance, they introduce work hardening and residual stress within the material.

All elbows formed by cold working must undergo solution treatment (stainless steel) or annealing/normalizing (carbon steel/alloy steel) to eliminate internal stress. Without heat treatment, elbows are highly susceptible to stress corrosion cracking during service. When purchasing, it is essential to confirm whether the contract explicitly specifies heat treatment requirements.

5. What are the precautions for procurement and acceptance?

● Strict supplier vetting: Select qualified and reputable manufacturers;

● Verify quality assurance certificates: Require MTR (Material Certificate of Reliability) reports that include chemical composition, mechanical properties, heat treatment reports, and non-destructive testing reports;

● Re-inspection upon arrival: Conduct random or full inspections of key items (wall thickness, hardness, material);

● Monitor heat treatment status: Confirm that the elbows have undergone final heat treatment (normalizing or full annealing) as required, and not just stress-relieving annealing.

Read more: Stainless steel pipe fittings vs Carbon steel pipe fittings or Pipe Elbow Dimensions & Sizes
