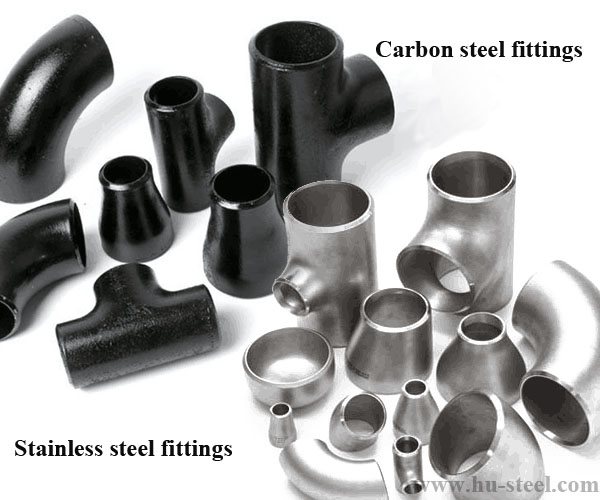

Carbon Steel vs Stainless Steel vs Alloy Steel Pipe Fittings – How to Choose?

Carbon steel pipe fittings:

Carbon steel pipe fittings are the most widely used type of pipe fitting. They are made of carbon steel, and common grades include ASTM A234 WPB/WPC (most commonly used), ASTM A420 (low-temperature use), and ASTM A860 (high-strength). Main products include elbows, flanges, tees, crosses, reducers, and pipe caps. The applicable standards system includes: Chinese standards (GB, HG, SH, GD), American standards (e.g., ASME, ASTM), and Japanese standards (JIS).

Stainless steel pipe fittings:

Stainless steel pipe fittings refer to pipe fittings made of stainless steel. Common grades include WP304, WP304L, WP316, and WP316L. They can be classified by connection method into: weld neck fittings, socket weld fittings, threaded fittings, and pipe flanges. Common products include: elbows (for pipe bends), tees (three-way junctions), crosses (cross junctions), reducers (diameter reduction connections), and pipe caps (for sealing pipe ends). Commonly used American standards include ASTM A403 (stainless steel weld neck fittings) and ASTM A815 (duplex stainless steel fittings).

Alloy Steel Pipe Fittings:

Alloy steel pipe fittings are manufactured from steel with additional alloying elements like chromium (Cr), molybdenum (Mo), and vanadium (V) to enhance mechanical properties at high temperatures. They are the preferred choice for high-temperature and high-pressure services where carbon steel loses strength and stainless steel may not be cost-effective.

Common ASTM A234 grades include:

● WP11 (1.25Cr-0.5Mo): Suitable for temperatures up to 565°C, widely used in power plant steam piping.
● WP22 (2.25Cr-1Mo): Offers enhanced creep resistance for high-temperature hydrogen service.
● WP91 (9Cr-1Mo-V): Used in ultra-supercritical power plants for extreme conditions.

When selecting alloy steel fittings, it is critical to match the grade with the specific operating temperature and pressure, and to verify compliance with project standards like ASME B16.9.

Which is better, carbon steel, stainless steel or alloy steel?

When purchasing pipe fittings, the choice of material directly affects cost and service life. The table below compares the core parameters of stainless steel and carbon steel pipe fittings to help you make a quick decision.

Comparison Items	Carbon Steel Pipe Fittings	Stainless Steel Pipe Fittings	Alloy Steel Pipe Fittings
Temperature Resistance	Up to 425°C	Up to 800°C (derated for pressure)	Up to 565°C (WP11/WP22), 650°C (WP91)
Corrosion Resistance	Poor (Coating Required)	Excellent	Moderate (Better than carbon, less than stainless)
Cost	Low	High (Approx. 2-4 times carbon)	Medium-High
Magnetic Properties	Yes	None (Austenitic grades)	Yes (Martensitic grades)
Applicable Media	Water, Oil, Gas	Acids, Alkalis, Salts, Food, Pharma	High-Temperature Steam, Hydrogen, High-Pressure Fluids
Key Applications	General piping, long-distance pipelines	Chemical plants, offshore, food/drink	Power plants, refinery process lines

Purchasing Notes:
Stainless steel requires pickling and passivation after welding; carbon steel does not.
Stainless steel is non-magnetic; carbon steel and alloy steel are magnetic.
Thick-walled carbon steel may require heat treatment after welding.

Alloy steels have high hardenability and almost always require preheating and rigorous post-weld heat treatment (PWHT). They must be stored in a dry and contaminated environment to prevent surface damage.

Common Pipe Fitting Materials and ASTM Grades

Note: Alloy steel fittings (e.g., A234 WP11/WP22) typically correspond to pipe grades like A335 P11/P22, which are not listed here for brevity.

Key Technical Notes on Material Selection

While the tables above provide a quick comparison, a few technical nuances are worth noting:

1. Strength vs. Toughness
The choice between strength and toughness is not always straightforward. High-strength carbon steel (e.g., A234 WPC) can offer higher yield strength than standard stainless steel (304), but stainless steel provides superior impact resistance and ductility, which is critical in low-temperature or cyclic loading services. Alloy steel grades (e.g., WP11/WP22) are engineered to balance both properties for high-temperature creep resistance.

2. Corrosion Mechanisms
While stainless steel resists general corrosion, it is susceptible to localized attacks like chloride stress corrosion cracking (Cl-SCC) in specific environments (e.g., high-chloride, high-temperature conditions). In such cases, duplex stainless steel or nickel alloys might be required. Carbon steel primarily suffers from general rusting, which can be managed with coatings or cathodic protection.

3. High-Temperature Performance
The temperature limits in the table are general guidelines. For stainless steel, the maximum service temperature is significantly derated as internal pressure increases. For alloy steel, the specific grade (WP11 vs. WP91) must be carefully matched to the design temperature to ensure adequate creep life. ▶ [Understand Carbon Steel Material Temperature Limits]

4. Applications

Alloy steel fittings bridge the gap between carbon steel and stainless steel, offering the necessary strength for high-temperature environments without the high cost of stainless steel. They are critical for power generation and refinery applications.

Stainless Steel vs. Alloy Steel vs. Carbon Steel Pipe Fittings: How to Choose?

FAQ:

Q: When should I choose alloy steel over carbon steel or stainless steel?
A: Choose alloy steel when your operating temperature exceeds 425°C (the limit for carbon steel) and the environment is not highly corrosive (where stainless steel would be over-specified and costly). Alloy steel provides the necessary high-temperature strength and creep resistance for applications like power plant steam lines and refinery process piping.

Q: Can stainless steel and carbon steel pipe fittings be used together in the same system?
A: While possible, it requires caution. Direct contact between stainless steel and carbon steel in the presence of an electrolyte (e.g., water) can cause galvanic corrosion. Use dielectric unions, isolation kits, or non-conductive gaskets to separate them. Also, avoid using carbon steel tools on stainless steel to prevent contamination and subsequent rusting.

Q3: What are the main welding considerations for alloy steel fittings?
A: Alloy steel fittings generally require preheating and strict post-weld heat treatment (PWHT) due to their higher hardenability compared to carbon steel. This is essential to prevent hydrogen-induced cracking and to maintain the material's mechanical properties for high-temperature service. Always follow qualified welding procedure specifications (WPS) and relevant codes like ASME B31.3. For critical applications, consult a welding engineer.

Conclusion:

Choosing the right material for pipe fittings depends on your specific operating conditions:

●  Carbon steel is the most cost-effective choice for general, non-corrosive services.
●  Stainless steel is essential when corrosion resistance or hygiene is a priority.
●  Alloy steel is required for high-temperature and high-pressure applications where carbon steel would fail.

Evaluate your temperature, pressure, media, and budget to make the final decision. For carbon steel fittings, plan for corrosion protection; for stainless steel fittings, select the correct grade (such as 304, 316, duplex steel, etc.); for alloy steel fittings, strictly control welding and heat treatment. The right material ensures safety, reliability, and long-term performance.
