Rectangular Tube & Pipe, Rectangular Hollow Section (RHS), Carbon Steel Rectangular Tube, Rectangular Structural Steel Tubing
Standard
EN 10210:S235JRH,S355J2H,S355NH
EN 10219:S235-S550
ASTM A500:Gr.b
ASTM A501:Gr.b
Types
Stainless rectangular tube,
Galvanized rectangular tube,
MS rectangular tube

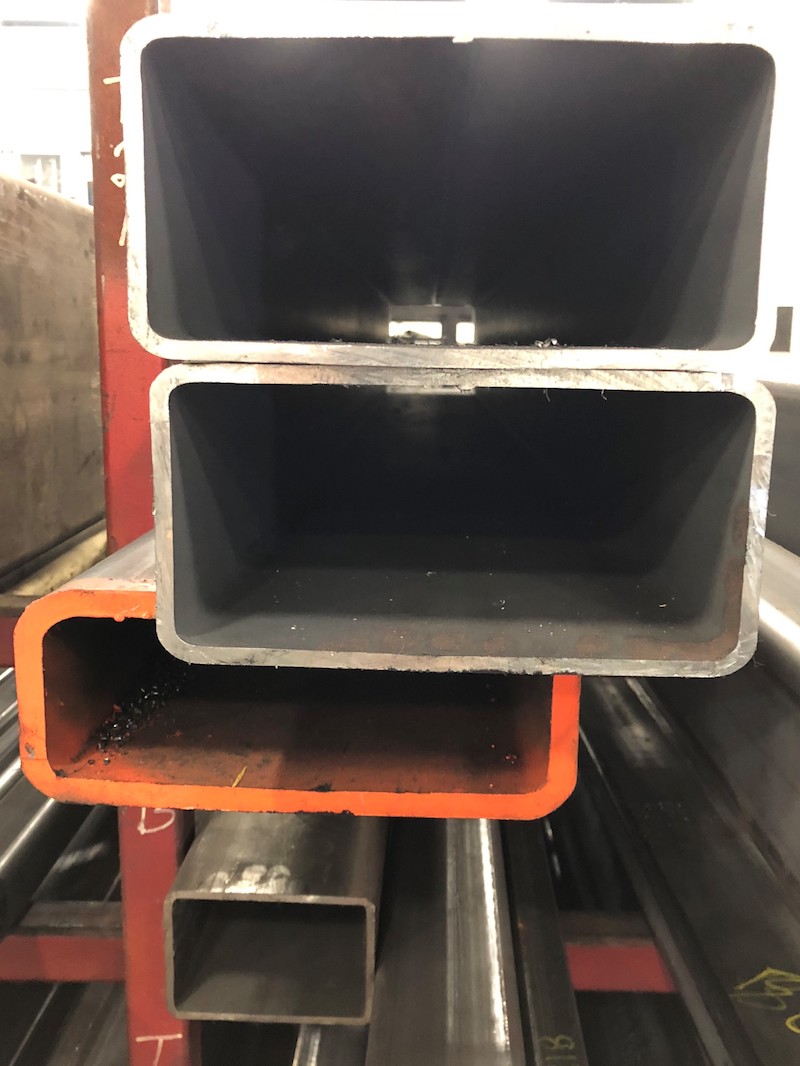

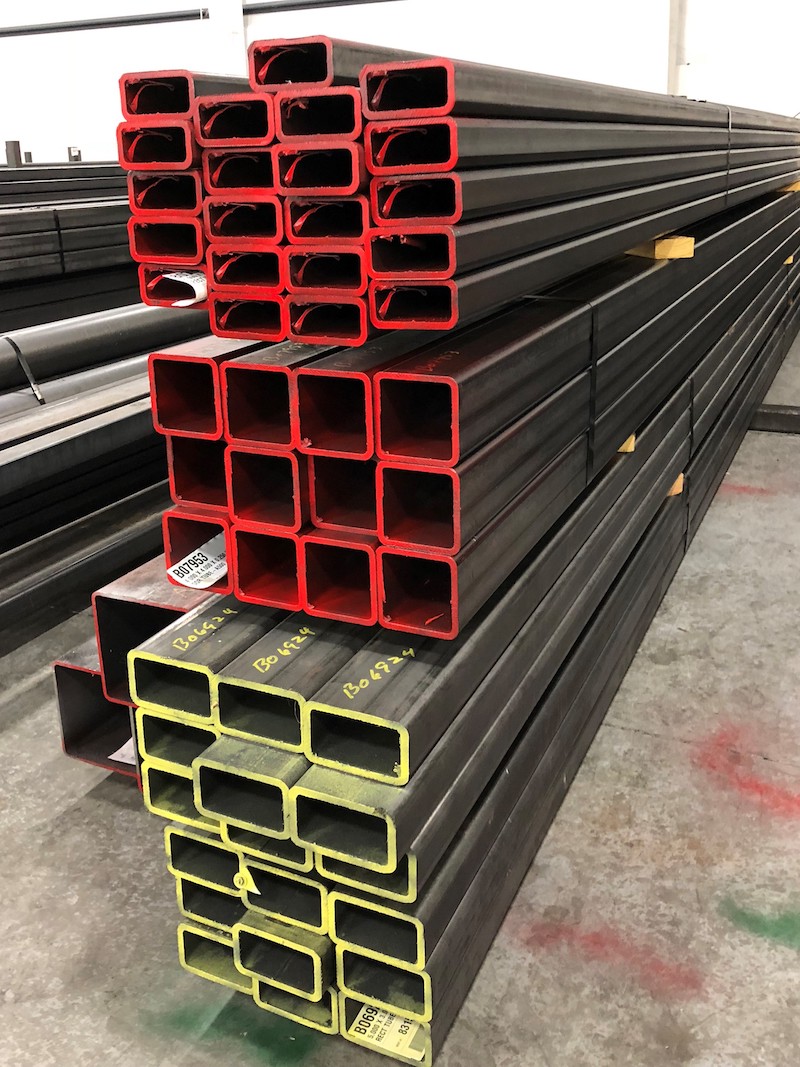

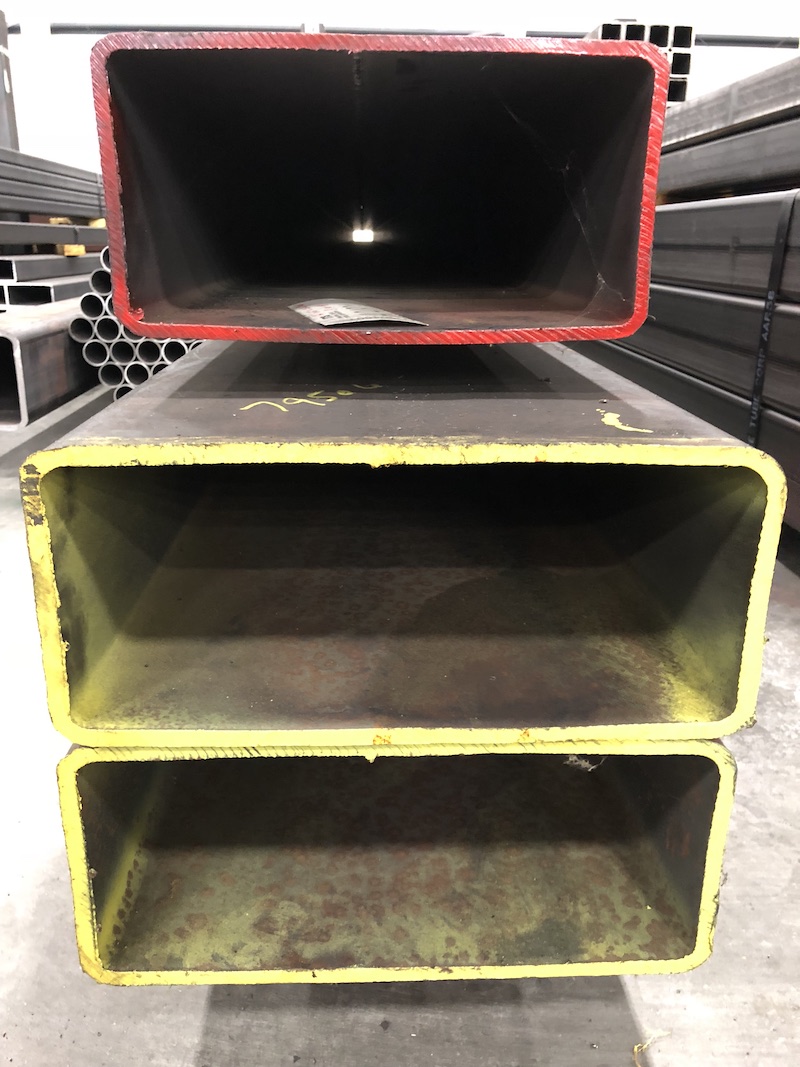

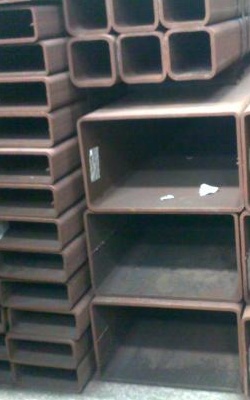

Rectangular tube: A rectangular tube is a hollow rectangular cross-section lightweight thin-walled steel tube, that is, a steel tube with unequal side lengths. Its structure is simple and stable, and it has high load-bearing capacity. The specifications of square tubes are usually expressed in terms of side length and wall thickness.
Rectangular tubes are divided into seamless and welded. Seamless rectangular tubes are formed by perforating and extruding seamless round tubes. Welded rectangular tubes are rolled from strip steel through process treatment. Generally, the strip steel is unpacked, flattened, curled, and welded to form a round tube. The round tube is then rolled into a rectangular tube and then cut to the required length.
Features of rectangular tube:
High strength: Rectangular tubes have high tensile, compressive and bending strengths, can withstand large loads and pressures, and are suitable for making various structural parts.
Good stability: The rectangular tube has high dimensional accuracy, stable structure, and is not easy to deform, which can ensure that the processed products have high precision and stability.
Good corrosion resistance: After surface treatment such as galvanizing and plastic spraying, the rectangular pipe has good corrosion resistance and can adapt to various complex environments.
Low cost: The production cost of rectangular tubes is low, easy to process, and suitable for large-scale production and application.
Rectangular Tube Size:
|
SIZE mm |
WEIGHT kg/m |
EST. LBS. PER FT. |
|
SIZE mm |
WEIGHT kg/m |
|
| EST. LBS. PER FT. | ||||||
|
40 x 20 x 1.60 |
1.380 |
0.93 |
150 x 100 x 6.30 |
22.400 |
15.08 |
|
|
40 x 20 x 2.60 |
2.100 |
1.41 |
150 x 100 x 8.00 |
27.700 |
18.64 |
|
|
50 x 30 x 1.60 |
1.880 |
1.27 |
150 x 100 x 10.00 |
35.714 |
24.04 |
|
|
50 x 30 x 2.60 |
2.920 |
1.97 |
160 x 80 x 3.20 |
11.500 |
7.74 |
|
|
50 x 30 x 2.90 |
3.320 |
2.23 |
160 x 80 x 4.00 |
14.300 |
9.62 |
|
|
50 x 30 x 3.20 |
3.490 |
2.35 |
160 x 80 x 5.00 |
17.400 |
11.71 |
|
|
50 x 30 x 4.00 |
4.410 |
2.97 |
160 x 80 x 6.30 |
21.400 |
14.40 |
|
|
60 x 40 x 2.60 |
3.730 |
2.51 |
160 x 80 x 8.00 |
26.400 |
17.77 |
|
|
60 x 40 x 2.90 |
4.230 |
2.85 |
160 x 80 x 10.00 |
32.545 |
21.87 |
|
|
60 x 40 x 3.20 |
4.500 |
3.03 |
160 x 90 x 4.50 |
16.600 |
11.17 |
|
|
60 x 40 x 4.00 |
5.670 |
3.82 |
160 x 90 x 5.60 |
20.400 |
13.73 |
|
|
70 x 40 x 2.90 |
4.690 |
3.16 |
160 x 90 x 7.10 |
25.300 |
17.03 |
|
|
70 x 40 x 4.00 |
6.300 |
4.24 |
160 x 90 x 8.80 |
30.500 |
20.53 |
|
|
80 x 40 x 2.60 |
4.550 |
3.06 |
160 x 90 x 10.00 |
34.100 |
22.95 |
|
|
80 x 40 x 2.90 |
5.140 |
3.46 |
180 x 100 x 4.00 |
16.800 |
11.31 |
|
|
80 x 40 x 3.20 |
5.500 |
3.70 |
180 x 100 x 5.00 |
20.500 |
13.80 |
|
|
80 x 40 x 4.00 |
6.930 |
4.66 |
180 x 100 x 5.60 |
23.000 |
15.48 |
|
|
80 x 40 x 5.00 |
8.470 |
5.70 |
180 x 100 x 6.30 |
25.400 |
17.09 |
|
|
80 x 40 x 6.30 |
10.400 |
7.00 |
180 x 100 x 7.10 |
28.600 |
19.25 |
|
|
90 x 50 x 2.60 |
5.370 |
3.61 |
180 x 100 x 8.80 |
34.700 |
23.35 |
|
|
90 x 50 x 3.20 |
6.640 |
4.47 |
180 x 100 x 10.00 |
38.800 |
26.11 |
|
|
90 x 50 x 4.00 |
8.180 |
5.51 |
180 x 100 x 12.50 |
46.900 |
31.56 |
|
|
90 x 50 x 5.00 |
10.000 |
6.73 |
200 x 100 x 4.00 |
18.000 |
12.11 |
|
|
90 x 50 x 6.30 |
12.300 |
8.28 |
200 x 100 x 5.00 |
22.100 |
14.20 |
|
|
90 x 50 x 7.10 |
13.700 |
9.22 |
200 x 100 x 6.30 |
27.400 |
18.44 |
|
|
100 x 50 x 3.60 |
7.980 |
5.37 |
200 x 100 x 8.00 |
34.000 |
22.88 |
|
|
100 x 50 x 4.50 |
9.830 |
6.62 |
200 x 100 x 10.00 |
40.600 |
27.32 |
|
|
100 x 50 x 5.60 |
12.000 |
8.08 |
200 x 120 x 4.00 |
19.300 |
12.99 |
|
|
100 x 50 x 7.10 |
14.800 |
9.96 |
200 x 120 x 5.00 |
23.700 |
15.95 |
|
|
100 x 50 x 8.00 |
16.400 |
11.04 |
200 x 120 x 6.30 |
29.600 |
19.92 |
|
|
100 x 60 x 3.20 |
7.510 |
5.05 |
200 x 120 x 8.00 |
36.500 |
24.56 |
|
|
100 x 60 x 3.60 |
8.550 |
5.75 |
200 x 120 x 8.80 |
36.900 |
24.83 |
|
|
100 x 60 x 4.50 |
10.500 |
7.07 |
200 x 120 x 10.00 |
45.100 |
31.62 |
|
|
100 x 60 x 5.60 |
12.900 |
8.68 |
200 x 120 x 12.50 |
54.700 |
38.87 |
|
|
100 x 60 x 6.30 |
13.500 |
9.09 |
200 x 120 x 14.20 |
60.900 |
43.64 |
|
|
100 x 60 x 7.10 |
15.900 |
10.70 |
220 x 80 x 6.00 |
26.816 |
18.02 |
|
|
100 x 60 x 8.80 |
19.200 |
12.92 |
220 x 120 x 6.30 |
31.600 |
21.27 |
|
|
100 x 80 x 6.3 |
16.370 |
11.02 |
220 x 120 x 8.00 |
39.400 |
26.52 |
|
|
110 x 60 x 3.60 |
9.050 |
6.09 |
220 x 120 x 10.00 |
46.200 |
31.09 |
|
|
110 x 60 x 4.50 |
11.100 |
7.47 |
220 x 120 x 12.50 |
58.700 |
39.51 |
|
|
110 x 60 x 5.60 |
13.600 |
9.15 |
220 x 120 x 14.20 |
65.400 |
44.01 |
|
|
110 x 60 x 7.10 |
16.800 |
11.31 |
250 x 150 x 5.00 |
29.900 |
20.12 |
|
|
110 x 60 x 8.80 |
20.100 |
13.53 |
250 x 150 x 6.30 |
37.300 |
25.10 |
|
|
110 x 70 x 3.20 |
8.510 |
5.73 |
250 x 150 x 8.00 |
46.500 |
31.29 |
|
|
110 x 70 x 4.00 |
10.800 |
7.27 |
250 x 150 x 10.00 |
56.300 |
37.89 |
|
|
110 x 70 x 5.00 |
12.700 |
8.55 |
250 x 150 x 12.50 |
68.300 |
45.97 |
|
|
110 x 70 x 6.30 |
15.500 |
10.43 |
260 x 140 x 6.30 |
37.500 |
25.23 |
|
|
120 x 60 x 3.20 |
8.510 |
5.73 |
260 x 140 x 8.00 |
46.900 |
31.56 |
|
|
120 x 60 x 4.00 |
10.600 |
7.13 |
260 x 140 x 10.00 |
57.600 |
38.76 |
|
|
120 x 60 x 5.00 |
13.000 |
8.75 |
260 x 140 x 12.50 |
70.400 |
47.38 |
|
|
120 x 60 x 6.30 |
16.100 |
10.84 |
260 x 140 x 14.20 |
78.800 |
53.03 |
|
|
120 x 60 x 7.10 |
17.900 |
12.05 |
260 x 180 x 6.30 |
41.500 |
27.93 |
|
|
120 x 60 x 8.80 |
21.500 |
14.47 |
260 x 180 x 8.00 |
52.000 |
35.00 |
|
|
120 x 80 x 3.20 |
12.100 |
8.14 |
260 x 180 x 10.00 |
63.900 |
43.00 |
|
|
120 x 80 x 6.30 |
17.500 |
11.78 |
260 x 180 x 12.50 |
78.300 |
52.70 |
|
|
140 x 70 x 4.00 |
12.500 |
8.41 |
260 x 180 x 14.20 |
87.700 |
59.02 |
|
|
140 x 70 x 5.00 |
15.400 |
10.36 |
300 x 100 x 5.00 |
30.268 |
20.34 |
|
|
140 x 70 x 6.30 |
19.000 |
12.79 |
300 x 100 x 8.00 |
47.679 |
32.04 |
|
|
140 x 70 x 7.10 |
21.200 |
14.27 |
300 x 100 x 10.00 |
58.979 |
39.63 |
|
|
140 x 70 x 8.80 |
25.600 |
17.23 |
300 x 200 x 5.00 |
37.800 |
25.44 |
|
|
140 x 80 x 3.20 |
10.500 |
7.07 |
300 x 200 x 6.30 |
47.100 |
31.70 |
|
|
140 x 80 x 4.00 |
13.100 |
8.82 |
300 x 200 x 8.00 |
59.100 |
39.77 |
|
|
140 x 80 x 5.00 |
16.200 |
10.90 |
300 x 200 x 10.00 |
72.000 |
48.46 |
|
|
140 x 80 x 6.30 |
20.000 |
13.46 |
300 x 200 x 12.00 |
88.000 |
59.22 |
|
|
140 x 80 x 8.00 |
24.800 |
16.69 |
||||
|
140 x 80 x 10.00 |
30.200 |
20.32 |
||||
|
150 x 100 x 3.20 |
12.000 |
8.08 |
||||
|
150 x 100 x 4.00 |
14.900 |
10.03 |
|
SIZE mm |
WEIGHT kg/m |
EST. LBS. PER FT. |
|
SIZE mm |
WEIGHT kg/m |
|
| EST. LBS. PER FT. | ||||||
|
40 x 20 x 1.60 |
1.380 |
0.93 |
150 x 100 x 6.30 |
22.400 |
15.08 |
|
|
40 x 20 x 2.60 |
2.100 |
1.41 |
150 x 100 x 8.00 |
27.700 |
18.64 |
|
|
50 x 30 x 1.60 |
1.880 |
1.27 |
150 x 100 x 10.00 |
35.714 |
24.04 |
|
|
50 x 30 x 2.60 |
2.920 |
1.97 |
160 x 80 x 3.20 |
11.500 |
7.74 |
|
|
50 x 30 x 2.90 |
3.320 |
2.23 |
160 x 80 x 4.00 |
14.300 |
9.62 |
|
|
50 x 30 x 3.20 |
3.490 |
2.35 |
160 x 80 x 5.00 |
17.400 |
11.71 |
|
|
50 x 30 x 4.00 |
4.410 |
2.97 |
160 x 80 x 6.30 |
21.400 |
14.40 |
|
|
60 x 40 x 2.60 |
3.730 |
2.51 |
160 x 80 x 8.00 |
26.400 |
17.77 |
|
|
60 x 40 x 2.90 |
4.230 |
2.85 |
160 x 80 x 10.00 |
32.545 |
21.87 |
|
|
60 x 40 x 3.20 |
4.500 |
3.03 |
160 x 90 x 4.50 |
16.600 |
11.17 |
|
|
60 x 40 x 4.00 |
5.670 |
3.82 |
160 x 90 x 5.60 |
20.400 |
13.73 |
|
|
70 x 40 x 2.90 |
4.690 |
3.16 |
160 x 90 x 7.10 |
25.300 |
17.03 |
|
|
70 x 40 x 4.00 |
6.300 |
4.24 |
160 x 90 x 8.80 |
30.500 |
20.53 |
|
|
80 x 40 x 2.60 |
4.550 |
3.06 |
160 x 90 x 10.00 |
34.100 |
22.95 |
|
|
80 x 40 x 2.90 |
5.140 |
3.46 |
180 x 100 x 4.00 |
16.800 |
11.31 |
|
|
80 x 40 x 3.20 |
5.500 |
3.70 |
180 x 100 x 5.00 |
20.500 |
13.80 |
|
|
80 x 40 x 4.00 |
6.930 |
4.66 |
180 x 100 x 5.60 |
23.000 |
15.48 |
|
|
80 x 40 x 5.00 |
8.470 |
5.70 |
180 x 100 x 6.30 |
25.400 |
17.09 |
|
|
80 x 40 x 6.30 |
10.400 |
7.00 |
180 x 100 x 7.10 |
28.600 |
19.25 |
|
|
90 x 50 x 2.60 |
5.370 |
3.61 |
180 x 100 x 8.80 |
34.700 |
23.35 |
|
|
90 x 50 x 3.20 |
6.640 |
4.47 |
180 x 100 x 10.00 |
38.800 |
26.11 |
|
|
90 x 50 x 4.00 |
8.180 |
5.51 |
180 x 100 x 12.50 |
46.900 |
31.56 |
|
|
90 x 50 x 5.00 |
10.000 |
6.73 |
200 x 100 x 4.00 |
18.000 |
12.11 |
|
|
90 x 50 x 6.30 |
12.300 |
8.28 |
200 x 100 x 5.00 |
22.100 |
14.20 |
|
|
90 x 50 x 7.10 |
13.700 |
9.22 |
200 x 100 x 6.30 |
27.400 |
18.44 |
|
|
100 x 50 x 3.60 |
7.980 |
5.37 |
200 x 100 x 8.00 |
34.000 |
22.88 |
|
|
100 x 50 x 4.50 |
9.830 |
6.62 |
200 x 100 x 10.00 |
40.600 |
27.32 |
|
|
100 x 50 x 5.60 |
12.000 |
8.08 |
200 x 120 x 4.00 |
19.300 |
12.99 |
|
|
100 x 50 x 7.10 |
14.800 |
9.96 |
200 x 120 x 5.00 |
23.700 |
15.95 |
|
|
100 x 50 x 8.00 |
16.400 |
11.04 |
200 x 120 x 6.30 |
29.600 |
19.92 |
|
|
100 x 60 x 3.20 |
7.510 |
5.05 |
200 x 120 x 8.00 |
36.500 |
24.56 |
|
|
100 x 60 x 3.60 |
8.550 |
5.75 |
200 x 120 x 8.80 |
36.900 |
24.83 |
|
|
100 x 60 x 4.50 |
10.500 |
7.07 |
200 x 120 x 10.00 |
45.100 |
31.62 |
|
|
100 x 60 x 5.60 |
12.900 |
8.68 |
200 x 120 x 12.50 |
54.700 |
38.87 |
|
|
100 x 60 x 6.30 |
13.500 |
9.09 |
200 x 120 x 14.20 |
60.900 |
43.64 |
|
|
100 x 60 x 7.10 |
15.900 |
10.70 |
220 x 80 x 6.00 |
26.816 |
18.02 |
|
|
100 x 60 x 8.80 |
19.200 |
12.92 |
220 x 120 x 6.30 |
31.600 |
21.27 |
|
|
100 x 80 x 6.3 |
16.370 |
11.02 |
220 x 120 x 8.00 |
39.400 |
26.52 |
|
|
110 x 60 x 3.60 |
9.050 |
6.09 |
220 x 120 x 10.00 |
46.200 |
31.09 |
|
|
110 x 60 x 4.50 |
11.100 |
7.47 |
220 x 120 x 12.50 |
58.700 |
39.51 |
|
|
110 x 60 x 5.60 |
13.600 |
9.15 |
220 x 120 x 14.20 |
65.400 |
44.01 |
|
|
110 x 60 x 7.10 |
16.800 |
11.31 |
250 x 150 x 5.00 |
29.900 |
20.12 |
|
|
110 x 60 x 8.80 |
20.100 |
13.53 |
250 x 150 x 6.30 |
37.300 |
25.10 |
|
|
110 x 70 x 3.20 |
8.510 |
5.73 |
250 x 150 x 8.00 |
46.500 |
31.29 |
|
|
110 x 70 x 4.00 |
10.800 |
7.27 |
250 x 150 x 10.00 |
56.300 |
37.89 |
|
|
110 x 70 x 5.00 |
12.700 |
8.55 |
250 x 150 x 12.50 |
68.300 |
45.97 |
|
|
110 x 70 x 6.30 |
15.500 |
10.43 |
260 x 140 x 6.30 |
37.500 |
25.23 |
|
|
120 x 60 x 3.20 |
8.510 |
5.73 |
260 x 140 x 8.00 |
46.900 |
31.56 |
|
|
120 x 60 x 4.00 |
10.600 |
7.13 |
260 x 140 x 10.00 |
57.600 |
38.76 |
|
|
120 x 60 x 5.00 |
13.000 |
8.75 |
260 x 140 x 12.50 |
70.400 |
47.38 |
|
|
120 x 60 x 6.30 |
16.100 |
10.84 |
260 x 140 x 14.20 |
78.800 |
53.03 |
|
|
120 x 60 x 7.10 |
17.900 |
12.05 |
260 x 180 x 6.30 |
41.500 |
27.93 |
|
|
120 x 60 x 8.80 |
21.500 |
14.47 |
260 x 180 x 8.00 |
52.000 |
35.00 |
|
|
120 x 80 x 3.20 |
12.100 |
8.14 |
260 x 180 x 10.00 |
63.900 |
43.00 |
|
|
120 x 80 x 6.30 |
17.500 |
11.78 |
260 x 180 x 12.50 |
78.300 |
52.70 |
|
|
140 x 70 x 4.00 |
12.500 |
8.41 |
260 x 180 x 14.20 |
87.700 |
59.02 |
|
|
140 x 70 x 5.00 |
15.400 |
10.36 |
300 x 100 x 5.00 |
30.268 |
20.34 |
|
|
140 x 70 x 6.30 |
19.000 |
12.79 |
300 x 100 x 8.00 |
47.679 |
32.04 |
|
|
140 x 70 x 7.10 |
21.200 |
14.27 |
300 x 100 x 10.00 |
58.979 |
39.63 |
|
|
140 x 70 x 8.80 |
25.600 |
17.23 |
300 x 200 x 5.00 |
37.800 |
25.44 |
|
|
140 x 80 x 3.20 |
10.500 |
7.07 |
300 x 200 x 6.30 |
47.100 |
31.70 |
|
|
140 x 80 x 4.00 |
13.100 |
8.82 |
300 x 200 x 8.00 |
59.100 |
39.77 |
|
|
140 x 80 x 5.00 |
16.200 |
10.90 |
300 x 200 x 10.00 |
72.000 |
48.46 |
|
|
140 x 80 x 6.30 |
20.000 |
13.46 |
300 x 200 x 12.00 |
88.000 |
59.22 |
|
|
140 x 80 x 8.00 |
24.800 |
16.69 |
||||
|
140 x 80 x 10.00 |
30.200 |
20.32 |
||||
|
150 x 100 x 3.20 |
12.000 |
8.08 |
||||
|
150 x 100 x 4.00 |
14.900 |
10.03 |
|
Saudi Arabia A-500 grade A 40 x 80 x 1.5 mm 100 x 50 x 1.8 mm 650 Tons |
Mexico A500 gr. B 50 mm x 30mm x 3.2 thk 1200 pieces |
Singapore A500 Grade B 7"x 4" x Wall Thk 0.375"x LG 6M 35000 Tons (project) |
Nigeria |
|
UAE |
Singapore 304L 1"*2"*1/4" 265 Tons |
Irap A500 Grade B 20"*8"*0.625" 1050 Nos |
Spain A-500 GR. A 250 X 150 X 6 MM X 6 M 23600 meters |
Copyright @2017 Hunan Standard Steel Co.,Ltd and Husteel Industry Group All Rights Reserved
