ASTM A860 High-Strength Butt-Welding Pipe Fittings

ASTM A860/ A860M is a standard specification for high-strength pipe fittings designed specifically for high-pressure oil and gas transmission and distribution systems. Its full name is "Standard Specification for Wrought High-Strength Ferritic Steel Butt-Welding Pipe Fittings." It specifies high-strength pipe fittings for use with API 5L line pipes and is a core component in long-distance pipeline projects.

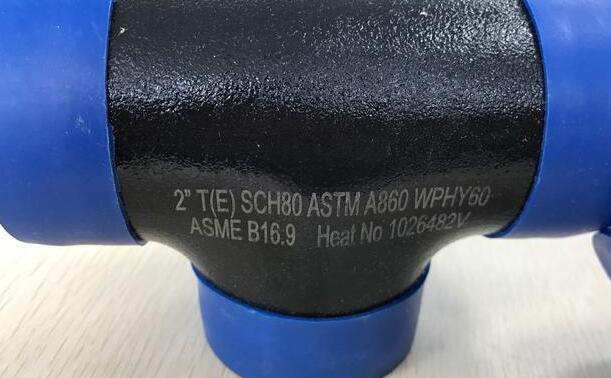

What are ASTM A860 Standard Pipe Fittings?

ASTM A860 standard pipe fittings refer to high-strength butt-welding pipe fittings, which are connected to pipelines by welding. This standard is specifically designed to match high-strength line steel pipes such as API 5L X42 to X70, ensuring that the strength of the fitting and the pipeline are matched, eliminating weak points in the system. It covers a variety of butt-welding fittings, such as elbows, tees, reducers, and caps.

● Material Grades: ASTM A860 standard covers six strength grades of WPHY: 42, 46, 52, 60, 65, and 70, corresponding to API 5L pipeline steel grades X42 to X70, respectively. WPHY is an abbreviation for "Wrought Pipe High-Yield," with the suffix number representing its minimum yield strength (unit: ksi).

Among them, grade WPHY 42 is suitable for lower-pressure oil and gas gathering and transmission pipelines, WPHY 52 is most widely used in medium- and high-pressure pipeline systems, and WPHY 60-70 is commonly used in high-pressure and ultra-high-pressure long-distance pipelines.

● Specifications: Different standards apply depending on the diameter. Small sizes (typically ≤DN350/NPS 14) follow ASME B16.9; large sizes (≥DN400/NPS 16) follow MSS SP-75.

Our Supply Range:
Grades: ASTM A860 WHPY 42, 46, 52, 56, 60, 65, 70
Outer Diameters: 1/2'' to 14'' in ASME B16.9, 14'' to 48'' in MSS-SP-75
Wall Thickness Schedule: SCH 10, SCH 40, SCH 160 comply with ASME B16.9
Pressure Class: Class 150, 300, 600, 900, 1500, 2500
Manufacturing Standards: ASME B16.9, ASME B16.28, MSS-SP-75

Manufacturing Process:

Can be manufactured using seamless or electrofusion welding processes, with raw materials including plate, forgings, or steel pipe. After manufacturing, heat treatment (such as normalizing + tempering or quenching + tempering) is necessary to relieve stress and obtain stable microstructure and properties.

Quality Inspection: According to ASTM A860, the quality inspection requirements for pipe fittings mainly cover four aspects: chemical composition, mechanical properties, manufacturing process verification, and non-destructive testing. However, this standard explicitly does not require hydrostatic testing, which is a significant difference from pressure piping standards.

ASTM A860 Standard Mechanical Properties:

All WPHY grades under ASTM A860 require impact toughness testing at a low temperature of -46°C to ensure safety in cold regions and under high-pressure conditions.

Steel Grade	Minimum Yield Strength (MPa)	Tensile Strength Range (MPa)	Minimum Elongation (Gazette 4D)	Impact Energy Requirement* (-46℃)
WPHY 42	290	415-585	25%	40 J (Average) / 34 J (Single Value)
WPHY 46	315	435 - 605	25%	Same as above
WPHY 52	360	455 - 625	25%	Same as above
WPHY 60	415	515 - 690	20%	Same as above
WPHY 65	450	530 - 705	20%	Same as above
WPHY 70	485	550 - 725	20%	Same as above

Note: Impact energy requirements are based on standard Charpy V-notch specimens (10mm × 10mm). For smaller specimens, the allowable values will be reduced accordingly.

Relationship with Related Standards:

In practical engineering, ASTM A860 pipe fittings are always used in conjunction with other standards:

● Matching Piping Standard: API 5L (e.g., X42, X52, X65, X70)
● Matching Flange Standard: ASTM A694 (e.g., F42, F52, F60, F65, F70)
● Matching Size Standard: ASME B16.9 or MSS SP-75

Version Update: This standard is continuously updated; the latest valid version is ASTM A860/A860M-25a (released in 2025), maintaining its advanced technology.

How Widely Are ASTM A860 Standard Pipe Fittings Used? — From Real-World Case Studies

Judging from recent key domestic and international projects, the application of ASTM A860 standard pipe fittings is very active, making it the first choice for high-pressure conditions:

1. Domestic Major Project Procurement: Sinopec recently procured a large number of WPHY52 grade pipe fittings for acidic environments resistant to hydrogen sulfide (ANTI-H2S) in its Puguang Dawan project. The procurement scope covered various fittings such as seamless elbows, tees, and concentric/eccentric reducers.

2. Frequent International Project Delivery: Hebei Haihao Group, a globally renowned pipe fitting manufacturer, has delivered multiple batches of A860 WPHY65 and WPHY60 pipe fittings to countries such as Singapore and the UAE in the past year for high-pressure transmission pipelines, refinery systems, and energy infrastructure.

3. Continued Academic Research Focus: Even in 2025, research papers on the heat treatment process of A860 WPHY65 material were published in academic journals, aiming to optimize its performance in high-pressure pipelines. This also indirectly confirms the material's important position in the industry.

Conclusion:

ASTM A860 standard pipe fittings are dedicated products for high-pressure oil and gas pipelines. Their core feature is that through strict control of chemical composition and low-temperature impact toughness requirements, the material can safely withstand high-pressure transmission tasks even in harsh environments such as -46℃.
