High Performance Drill Pipe

What is high performance drill pipe?

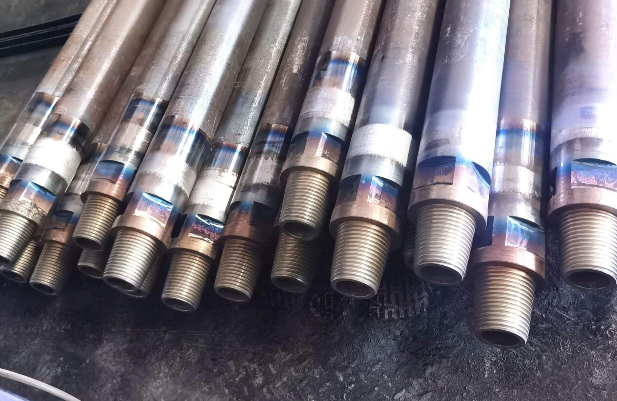

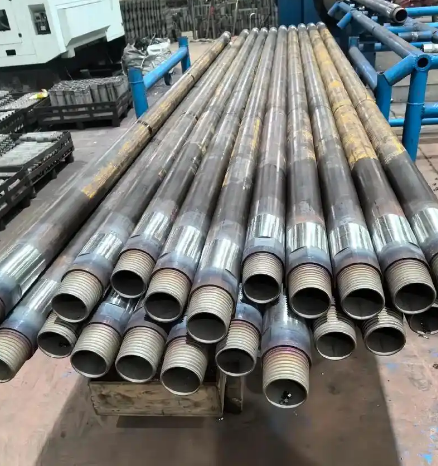

High Performance Drill Pipe (HPDP) is a term used in contrast to conventional API standard drill pipe. It does not refer to a single product but rather a general term for drill pipe optimized for specific drilling challenges, such as deep wells, ultra-deep wells, extended-reach horizontal wells, and high-temperature and high-pressure environments. Through specialized design, materials, and manufacturing processes, HPDP significantly improves overall performance in demanding drilling environments. HPDP offers higher strength, better fatigue resistance, and enhanced corrosion resistance than conventional drill pipe.

Drill pipe grade classification:

Drill pipe is typically classified by grade and performance, and is primarily divided into the following categories:
1. Conventional drill pipe: For less complex drilling operations.
2. High-strength drill pipe: For deep or demanding wells.

3. Ultra-high-strength drill pipe: For drilling complex, deep, or high-pressure wells.

Why is high-performance drill pipe necessary?

As oil and gas exploration and development move deeper and into more complex formations, drilling operations face significant challenges:

Deeper well depths: The drill pipe itself is extremely heavy, requiring extremely high strength.
More complex wellbore trajectories: Horizontal wells and extended-reach wells subject the drill pipe to significant bending, torsional, and frictional stresses.
Harder underground environments: High temperatures, high pressures, and corrosive formation fluids (such as hydrogen sulfide and carbon dioxide).

Advantages of high-performance drill pipe:

1. Extremely high torsional strength

The double-shouldered joint design withstands extreme torque, making it suitable for high-torque motors, rotary steerable systems, and extended-reach wells.

2. Excellent fatigue resistance

The optimized, thickened transition zone significantly reduces stress concentration, increasing fatigue life several times, making it particularly suitable for directional and horizontal wells with severe dogleg depths.

3. Excellent corrosion resistance

The internal coating effectively isolates the pipe from corrosive fluids, significantly extending service life in environments containing CO₂ and H₂S.

4. Improved hydraulic performance
Due to the shorter and smoother thickened transition zone and the potentially optimized inner diameter, drilling fluid flow resistance is reduced, facilitating the delivery of greater hydraulic horsepower.

5. Enhanced casing protection
The advanced hardband not only protects the wear band itself but also the expensive casing, reducing the lifecycle cost of the entire drilling project.

6. Higher strength-to-weight ratio
Providing higher strength for the same weight, or reducing weight for the same strength, facilitates the drilling of ultra-deep wells.

Material Grades for High-Performance Drill Pipe:

1. Basic High-Performance Grade (Improved Chromium-Molybdenum Steel)
This is the most common HPDP material category, based on the standard AISI 41xx series chromium-molybdenum steel, but with improved features.

4140H / 4142H: Contains chromium (Cr) and molybdenum (Mo), providing improved hardenability (H) and strength. Its strength, toughness, and fatigue resistance surpass those of conventional grades such as API 5DP E-75 and X-95.

4145H / 4150H: Contains higher carbon (C) and chromium (Cr) content. This provides enhanced hardenability, enabling the manufacture of thicker-walled and larger-diameter drill pipe without sacrificing core performance. Commonly used in ultra-high-strength drill pipe.

2. Advanced High-Performance Grades (Specialty Alloy Steels)
Specialty steels with increased alloying elements are used to meet extreme operating conditions (such as ultra-deep wells and highly corrosive environments).

V-150 Grade:
This grade offers a minimum yield strength of 150 ksi (1034 MPa), making it an ultra-high-strength drill pipe. As strength increases, the steel's susceptibility to sulfide stress corrosion cracking (SSC) also increases. The raw material must be clean steel that undergoes specialized smelting (such as vacuum degassing) and heat treatment, with strict control of impurities and optimized microstructure to achieve both high strength and high SSC resistance.

Sour Service Grade:
Specialized sulfur-resistant steel grades designed for use in environments containing hydrogen sulfide (H₂S). Their strength ratings may be labeled S-135 SS or V-150 SS, but their composition and processing far exceed those of standard S-135 or V-150. Conventional high-strength steels can suffer hydrogen embrittlement fracture in these environments, requiring strict hardness control. The maximum hardness in the heat-affected zone of the weld is typically required to be no more than HRC 22 or HRC 26.

3. Top-tier high-performance grades (corrosion-resistant alloys)
These grades are used in the most extreme corrosive environments (such as high temperatures, high CO₂, high Cl⁻, and H₂S content). These grades are extremely expensive.

Duplex Stainless Steel:
Duplex stainless steel has a dual-phase structure of austenite and ferrite, resulting in high strength and excellent resistance to chloride stress corrosion cracking. They are often used in harsh corrosive environments.

Nickel-based alloys:
Such as Nickel-based alloy 825, Alloy 718, and Alloy 925 offer unparalleled resistance to general and localized corrosion, as well as high strength. They are used in extremely harsh operating conditions, such as high-temperature, high-pressure, and high-sulfur gas wells.

Typical Applications:

High-performance drill pipe is the optimal solution for the following challenging drilling operations:

1. Ultra-deep and ultra-deep wells: Drill pipes with extremely high tensile and torsional strength are required to cope with the immense depths.
2. Extended-reach and extended-reach horizontal wells: These wells involve significant horizontal reach, placing extremely high demands on the drill pipe's torque transmission, friction resistance, and fatigue resistance.
3. Slimhole drilling: The narrow annular clearance of the wellbore increases drill pipe bending, requiring exceptional fatigue resistance.

4. Wells containing harshly corrosive media: For example, oil and gas wells rich in H₂S or CO₂.

5. Using high-power downhole tools: Such as high-power mud motors, turbodrills, and rotary steerable systems generate extremely high back-torque.

6. Deepwater offshore drilling: Operations are extremely costly, requiring absolute reliability of drilling tools; any failure can result in significant losses.

The Difference Between Drill Pipe and Casing Pipe:

Drill pipe and casing pipe are two key pipe materials used in oil drilling. Their core differences lie in their purpose, usage, and material. Drill pipe is used to transmit rotary power and transport drilling fluid and is reusable. Casing is used to support the wellbore wall and prevent collapse, and is a single-use, cemented well.

Read more: What is Drill Pipe Made of? or API 5DP Drill Pipe Size and Specification
