What is drill pipe made of?

Drill pipe is a steel pipe with a threaded end. As the core component of the drill string, it is typically crafted from high-strength alloy steel seamless pipe. According to API 5DP standards, its wall thickness is typically set between 9 and 11 mm. The pipe body and joints are joined using friction welding, a process known as butt welding.

This critical component plays a dual role in oil drilling: on the one hand, it transmits torque, ensuring stability and efficiency during drilling; on the other hand, it transports drilling fluid, providing essential lubrication and cooling for downhole operations. As drill pipe deepens, wellbores expand. Therefore, drill pipe plays a crucial role in oil drilling. Drill pipe can be used multiple times during the oil and gas extraction and refining process.

Drill pipe structure:

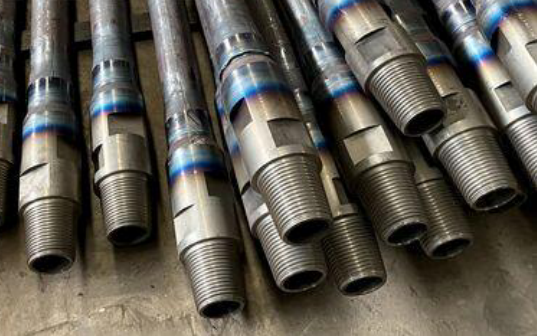

The structure of drill pipe can be summarized as two main components: the drill pipe body and the drill pipe tool joint. The drill pipe body, as the main body of the drill pipe, provides primary support and transmission. The joint plays a key role in connecting multiple pieces of drill pipe to form a continuous drill string. Structurally, these components are joined together through meticulous craftsmanship, ensuring the stability and efficiency of the drill pipe during drilling. With the widespread application of friction butt welding technology, modern drill pipe manufacturing has reached new heights.

What materials are drill pipes made of?

Drill pipes are primarily made of high-quality alloy steel, which offers high strength, high wear resistance, and excellent toughness, capable of withstanding the extreme pressure and wear experienced during drilling. Depending on the specific operating environment and requirements, drill pipes may also be made of materials such as high-strength steel or stainless steel. Modern oil drill pipes are not made of a single material, but rather utilize composite structures and specialized materials optimized for the functional requirements of different parts.

1. Drill Pipe Body - High-Strength Low-Alloy Steel

The body of drill pipe is made almost entirely of high-strength low-alloy steel. This is not ordinary steel, but an engineered material that undergoes a special formulation and heat treatment process.

Common steel grades (according to API 5DP standards, the number represents the minimum yield strength in thousands of psi):

E-75: Lowest strength, used in shallow wells or non-critical sections.

X-95 and G-105: Medium strength, widely used.

S-135: The mainstream choice for high-strength standard drill pipe, suitable for deep and ultra-deep wells.
V-150 and Z-180: Ultra-high strength, used in extreme operating conditions (such as ultra-deep wells and extended reach wells), but more susceptible to cracking.

Grades X, G, and S are classified as high-strength steel grades. The higher the steel grade, the greater the drill pipe's strength in tension, torsion, and external collapse. When designing drill string strength, it is generally recommended to increase the steel grade rather than simply increasing the wall thickness.

Material Property Requirements:
High strength: Withstands significant tensile, torsional, and compressive loads.
High toughness: Prevents brittle fracture under impact loads or stress concentrations.
Good fatigue resistance: Resists the alternating stresses generated by bending and rotation in the wellbore. A certain degree of hardness: Resists wear and corrosion, but the hardness should not be too high (especially in hydrogen sulfide environments, where hardness must be controlled to prevent sulfide stress cracking).

2. Tool Joints - Higher-Strength Alloy Steel

The tool joints at both ends of the drill pipe are subject to the most severe wear and the most complex stresses. Therefore, their materials are stronger, harder, and more wear-resistant than the pipe body.

Material: Chromium-molybdenum alloy steels such as AISI 4140H/4130H are used, and they undergo a quenching and tempering heat treatment.
Features:
Ultra-High Strength: The yield strength is typically much higher than that of the pipe body to withstand the significant make-up torque and bending moments.
High Surface Hardness: The outer surface of the joint typically reaches a hardness of HRC 58-62, making it extremely wear-resistant to resist friction with the casing and wellbore wall.
Highly Tough Core: The inner core maintains good toughness to withstand impact loads and prevent fracture.

3. Friction Welding Zone - Material Connection

The drill pipe body and the tool joint are joined by friction welding. This is a physical process, not the use of a third material.

Process: The pipe body and fitting are pressed against each other under high-speed rotation. Frictional heat on the contact surfaces causes them to reach a thermoplastic state, which is then cooled under pressure to form a strong metal bond.
Post-weld treatment: The weld area is normalized to eliminate residual stress, refine the grain size, and ensure a smooth transition in mechanical properties (particularly toughness and fatigue resistance) to prevent it from becoming a weak link.

Materials for Special Operating Conditions:

For extreme environments, higher-grade materials are used:

1. Sulfur-Resistant Drill Pipe
Requirement: In oil and gas wells containing hydrogen sulfide, H₂S can cause hydrogen-induced cracking and sulfide stress corrosion cracking in ordinary steel.
Material: Specially treated steel grades (such as API SM and SS grades) are used. The key is to strictly control hardness and chemical composition to improve sulfur resistance.

2. Corrosion-Resistant Alloy Drill Pipe
Requirement: For use in highly corrosive environments containing high amounts of CO₂, chlorides, or extreme temperatures and pressures. Materials: Expensive but highly corrosion-resistant alloys such as stainless steel and nickel-based alloys are used.
Application: Typically used only in well sections with the most severe corrosion, as the cost can be tens of times higher than that of ordinary steel drill pipe.

Drill Pipe Manufacturing Process:

Oil drill pipe is typically manufactured using seamless steel pipe, primarily to avoid stress concentration points and potential defects that cannot be completely avoided in welded pipe. This is due to the extremely demanding service conditions and stringent safety requirements of oil drill pipe.

Performance Advantages of Seamless Drill Pipe:

1. Withstands Complex Multi-Directional Stress

Drill pipe is subjected to immense tension, compression, torsion, and internal pressure downhole simultaneously, resulting in an extremely complex stress state.

2. Extremely High Fatigue Resistance

Seamless steel pipe offers continuous, uniform metal flow lines and isotropic mechanical properties, providing maximum resistance to fatigue crack initiation and propagation. The weld seam of welded pipe is the weakest link in fatigue resistance and rarely meets the extremely high fatigue resistance requirements of drill pipe.

3. Avoid the Risk of Weld Defects
Any welding process can produce minute defects such as pores, slag inclusions, or lack of fusion. These defects appear as microscopic cracks under a microscope. Under the combined effects of the extremely high stresses and corrosive environment of the drill pipe, these tiny defects can rapidly expand, leading to sudden brittle fracture and serious downhole accidents. Seamless steel pipe fundamentally eliminates the risks associated with weld defects.

4. Ensure Uniform Strength and Toughness
Drill pipe requires extremely high consistency in strength, toughness, and hardness throughout its entire length.

Drill Pipe Material Performance Introduction:

As a critical component in drilling operations, the selection of drill pipe materials is crucial. Currently, common drill pipe materials on the market include high-quality alloy steel, high-strength steel, and stainless steel. Each material has its own unique characteristics and is suitable for different drilling scenarios.

1. High-quality Alloy Steel: High-quality alloy steel is one of the most commonly used materials for drill pipe. By adding appropriate amounts of alloying elements such as chromium, nickel, and molybdenum to the steel, it significantly improves its strength, wear resistance, and toughness. This allows high-quality alloy steel drill pipe to perform exceptionally well in the harsh environments of drilling, such as high pressure and high wear.

2. High-strength steel: High-strength steel is a type of steel with extremely high strength and excellent toughness. Compared to high-quality alloy steel, high-strength steel offers superior strength and is suitable for drilling applications requiring extremely high drill pipe strength. However, high-strength steel may be slightly less wear-resistant than high-quality alloy steel, so comprehensive considerations are required when using it.

3. Stainless steel: Stainless steel drill pipe is primarily used in highly corrosive drilling environments. Stainless steel offers excellent corrosion resistance and can maintain stable performance in corrosive media such as acids and alkalis. While stainless steel drill pipe may not be as strong and wear-resistant as the previous two materials, it still offers irreplaceable advantages in specific environments.

Criteria for selecting drill pipe material:
When selecting a drill pipe material, it is important to consider factors such as the specific requirements of the drilling project, the operating environment, and cost. For example, in deep-sea drilling or high-temperature, high-pressure environments, high-strength and wear-resistant high-quality alloy steel or high-strength steel drill pipe is preferred. In highly corrosive environments, stainless steel drill pipe is more suitable. Furthermore, cost is a key factor in selecting drill pipe material. Different drill pipe materials vary in price, so a reasonable choice should be made based on the project budget and actual needs.

Butt welding of drill pipe joints to pipe bodies:
To enhance the connection strength between the pipe body and joints, both ends of the pipe body are typically thickened. Common thickening methods include internal thickening, external thickening, and internal and external thickening.

Conclusion:

A typical oil drill pipe is a composite structure composed of a high-strength steel pipe body and a tougher alloy steel joint, friction-welded. Material selection is crucial for ensuring reliable operation in extremely harsh downhole environments.
