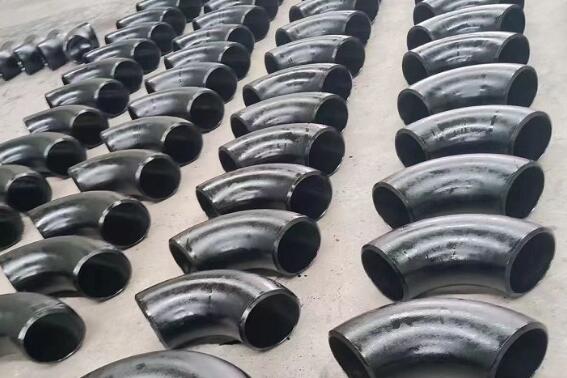

ASTM A420 Low Temperature Pipe Fittings

ASTM A420/A420M is a standard specification developed by the American Society for Testing and Materials (ASTM) to define the technical requirements for pipe fittings (such as elbows, tees, and reducers) used in low-temperature environments. Its full name is "Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service," and it primarily ensures that pipe fittings possess sufficient toughness, strength, and sealing properties at low temperatures to prevent material embrittlement or failure due to cold.

Basic Standard Content:

This standard mainly applies to pipe fittings used in low-temperature pressure piping and pressure vessel services. When the operating temperature of pipelines is low, ordinary steel becomes brittle, while materials conforming to ASTM A420 maintain sufficient toughness to prevent brittle fracture.

Applicable Products: The standard covers various types of forged pipe fittings, specifically including fittings conforming to the following size standards:

ASME B16.9: Factory-manufactured forged butt-welded pipe fittings
ASME B16.11: Forged pipe fittings with socket welding and threaded connections

MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97: Other specific types of pipe fittings

Applicable Materials: The standard covers both forged carbon steel and alloy steel.

Material grades: ASTM A420 standard mainly includes four low-temperature steel material grades: WPL6, WPL9, WPL3, and WPL8. Their core difference lies in their applicable temperature: the higher the grade, the lower the temperature it can withstand. WPL6 is the most commonly used general-purpose low-temperature pipe fitting material, while WPL8 is specifically designed for extreme low-temperature environments.

Applications: Pipe fittings conforming to ASTM A420 are widely used in low-temperature piping systems in industries such as oil, gas, chemicals, LNG, and LPG. WPL6 ratings are suitable for temperatures as low as -45°C, and WPL8 ratings are suitable for temperatures as low as -195°C, meeting the safety requirements for operation in extreme conditions from normal to ultra-low temperatures.

Latest Version: The latest valid version is ASTM A420/A420M-24a. This standard is continuously updated; for example, a new revision proposal is expected in 2025.

Core Technology and Performance Requirements:

1. Material Chemical Composition Control: The standard clearly specifies the chemical composition of materials (such as C, Mn, Si, P, S, etc.) as well as tensile strength, yield strength, elongation, etc. For example, WPL6 grade must meet specific carbon, manganese, and nickel content requirements.
2. Mechanical Property Testing: Tensile testing, impact testing (especially low-temperature impact), and hardness testing are mandatory. The Charpy V-notch impact test is the most critical test for distinguishing ordinary pipe fittings from low-temperature pipe fittings.

3. Manufacturing Process Specifications: The manufacturing process of pipe fittings includes single or combined operations such as hammering, pressing, piercing, extrusion, upsetting, machining, bending, welding, or processing. All welding operations must be completed before austenitizing heat treatment, and welders, welding operators, and welding procedures must be qualified according to ASME regulations. The final product requires heat treatment such as normalizing, normalizing and tempering, annealing, or quenching and tempering.

4. Non-destructive testing: Ultrasonic testing (UT), magnetic particle testing (MT), and penetrant testing (PT) are required to ensure quality.

5. Quality verification and labeling: Each batch of products must meet acceptance standards and clearly label information such as material, specifications, and standard number.

Common Misconceptions:

The ASTM A420 standard we are discussing is for low-temperature carbon/alloy steel pipe fittings (material grade such as WPL6). However, the "420 stainless steel" often mentioned online (such as AISI 420) is a martensitic stainless steel primarily used for wear-resistant parts such as knives and valves, and it does not belong to the ASTM A420 standard at all. Their compositions and uses are completely different; please be sure to distinguish between them.

Material Range and Performance Parameters Table

ASTM A420 standard includes four material grades: WPL6, WPL9, WPL3, and WPL8. This standard provides detailed requirements for the chemical composition, mechanical properties, impact properties, and impact test temperature of these four materials.

1. Chemical Composition

CHEMICAL	LIMITS	C	Mn	P	S	Si	Ni	Cr	Mo	Cu	Cb	V
ASTM A420 WPL6	MIN		0.50			0.15
	MAX	0.30	1.35	0.035	0.040	0.40	0.40	0.30	0.12	0.40	0.02	0.08
ASTM A420 WPL9	MIN		0.40				1.60			0.75
	MAX	0.20	1.06	0.030	0.030	/	2.24	/	/	1.25	/	/
ASTM A420 WPL3	MIN		0.31			0.13	3.20
	MAX	0.20	0.64	0.050	0.050	0.37	3.80	/	/	/	/	/
ASTM A420 WPL8	MIN					0.13	8.40
	MAX	0.13	0.90	0.030	0.030	0.37	9.60	/	/	/	/	/

2. Mechanical Properties

MATERIAL	ASTM A420 WPL6	ASTM A420 WPL9	ASTM A420 WPL3	ASTM A420 WPL8
T.S (MPA)	415-655	435-610	450-620	690-865
Y.S (MPA)	240	315	240	515

Elongation equirements	WPL6		WPL9		WPL3		WPL8
	Longi-tudinal	Trans-verse	Longi-tudinal	Trans-verse	Longi-tudinal	Trans-verse	Longi-tudinal	Trans-verse
Standard round specimen, or small proportionaspecimen, min %e in 4	22	12	20	/	22	14	16	/
Rectangular specimen for wall thickness e in. 0.94mm and over, and for all small sizes tested in fusection: min % o in 2 in. or 50 mm	30	16.5	28	18	30	20	22	/

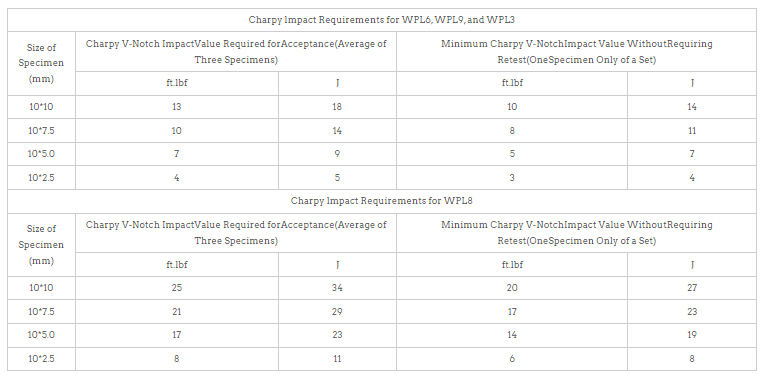

3. Impact Properties

4. Impact Temperature

lmpact Test Temperature
Grade	TemperatureF°[C°]
ASTM A420 WPL6	-50[-45]
ASTM A420 WPL9	-100[-75]
ASTM A420 WPL3	-150[-100]
ASTM A420 WPL8	-320[-195]
