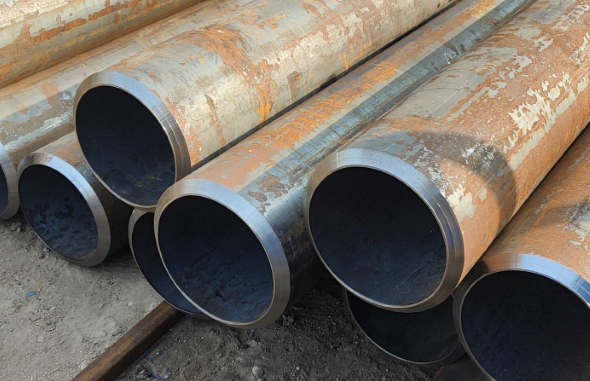

ASTM A106 Sch 80 Seamless Pipe

What is ASTM A106 Sch 80 Seamless Pipe?

ASTM A106 Sch 80 Seamless Pipe refers to high-quality carbon steel pipe that conforms to the American ASTM A106 standard, is specifically designed for high-temperature and high-pressure conditions, features thickened walls, and is manufactured using a seamless process. It is a classic high-standard, high-performance product in the industrial piping field.

ASTM A106: A specification for "Seamless Carbon Steel Pipes for High Temperature Use" developed by the American Society for Testing and Materials. This standard is specifically designed for high-temperature and high-pressure conditions and has stricter requirements for chemical composition and mechanical properties.

Sch 80: Sch 80 is an abbreviation for "Schedule 80," representing thickened walls. Sch 80 pipes have thicker walls than standard Sch 40 pipes, thus possessing higher pressure resistance and mechanical strength.

Seamless: Refers to a seamless manufacturing process, meaning the pipe has no longitudinal welds. This makes it superior to welded pipes in terms of pressure uniformity, reliability, and fatigue resistance, making it particularly suitable for harsh working conditions.

Characteristics and Specifications of ASTM A106 Sch 80 Seamless Pipe:

ASTM A106 Sch 80 seamless pipe is made of carbon steel material. It has high pressure resistance, excellent high-temperature resistance, and high reliability due to the absence of weld seams and weak points. A106 material includes three grades: Grade A, B, and C, with Grade B being the most widely used.

Common Specifications:
ASTM A106 Sch 80 seamless pipe conforms to the ASME B36.10 dimensional standard, with common size ranges from NPS 1/8″ to NPS 24″.

Surface Treatment:

A106 Sch 80 seamless pipe leaves the factory without any surface treatment, typically as black pipe, and can be used directly in insulation systems. Alternatively, it can be sandblasted, painted, or treated according to customer requirements.

Typical Applications:

ASTM A106 Sch 80 seamless pipe is commonly used in high-temperature and high-pressure systems, such as:

• Superheated steam pipes and main feedwater pipes in power plant boilers
• Process heat pipelines in petrochemical plants
• High-temperature oil and gas transmission pipelines
• Piping for heat exchangers and heating furnaces

Mechanical Properties of ASTM A106:

Grade A: Tensile strength ≥ 330 MPa; Yield strength ≥ 205 MPa; Elongation (gauge length 50 mm): ≥ 35%;
Grade B: Tensile strength ≥ 415 MPa; Yield strength ≥ 240 MPa; Elongation: ≥ 30%;
Grade C: Tensile strength ≥ 485 MPa; Yield strength ≥ 275 MPa; Elongation: ≥ 30%;

Comparison with Other Similar Pipes:

ASTM A106 Sch 80 Seamless: Based on A106 material, it uses a thicker wall thickness (Schedule 80), and its pressure resistance is higher than Sch 80 seamless pipes of the same size. 40mm pipe is over 50% thicker and suitable for critical high-temperature and high-pressure components with higher design pressures. Examples include power plant steam pipes, boiler tubes, and high-temperature chemical pipelines.

ASTM A106 Sch 40 Seamless: Standard wall thickness pipe made of A106 material. Its pressure resistance meets the requirements of most high-temperature and high-pressure systems, making it the most economical and versatile choice under this standard. Examples include high-temperature process piping and heat exchanger tube bundles.

ASTM A53 GR.B Seamless: Its room-temperature mechanical properties are comparable to A106 Gr.B, but its chemical composition is more leniently controlled. A53 GR.B Seamless is mainly used for general fluid transport systems or general structural applications at room temperature or medium-low temperature and medium-low pressure. Examples include water supply, compressed air, and low-pressure steam pipelines.

API 5L PSL1 Gr.B: API 5L is a standard specifically for pipeline systems. The design philosophy of this standard emphasizes the weldability, toughness, and resistance to brittle fracture of materials while ensuring pipeline strength, to cope with ground motion, low-temperature environments, and potential impacts during long-distance transport. Suitable for long-distance onshore and subsea pipelines for oil and natural gas.

Conclusion:

ASTM A106 is a seamless carbon steel pipe standard tailored for high-temperature and high-pressure environments, but it is not the strongest pipe. Its strict chemical composition control and specialized high-temperature performance guarantees make it an irreplaceable safety choice for operating conditions above 400°C. When selecting this standard, it is essential to strictly adhere to the project specifications based on the design temperature, pressure, and medium.
