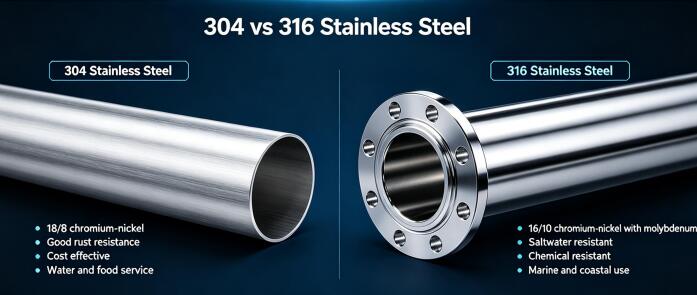

304 vs. 316 Stainless Steel: What's the Difference?

As an important alloy material, stainless steel plays an important role in modern industry and daily life. Among them, austenitic 304 and 316 stainless steel are considered surgical or medical grade stainless steel, which are the two most common types. Although they are both stainless steel materials, there are certain differences in composition, performance, corrosion resistance and application. This article will analyze the main differences between 304 stainless steel and 316 stainless steel in detail.

304 vs. 316 Stainless Steel: What's the Difference?

1. Difference in chemical composition

The main components of stainless steel are iron, chromium and nickel, among which chromium is the key factor determining the corrosion resistance of stainless steel. Stainless steel is essentially low-carbon steel, containing 10% or more chromium by weight. The addition of chromium gives steel unique stainless and corrosion-resistant properties. 304 stainless steel contains 18% chromium and 8% nickel, so it is also called 18-8 stainless steel. 316 stainless steel improves its corrosion resistance by reducing the chromium content and increasing nickel and molybdenum (generally 2-3%), especially enhancing its resistance to chloride and acidic environments.

2. Comparison of corrosion resistance

Due to the addition of molybdenum to 316 stainless steel, it exhibits superior corrosion resistance in seawater or other chloride environments. Molybdenum can combine with chloride ions to reduce the corrosion of chloride ions on stainless steel, so 316 stainless steel is a better choice in marine environments or industrial environments containing a large amount of chloride ions. In contrast, 304 stainless steel performs well in general atmospheric environments or mildly corrosive environments, but its corrosion resistance is not as good as 316 stainless steel in environments with high chloride content.

3. Physical and mechanical properties

In terms of physical properties, the density, melting point, etc. of 304 and 316 stainless steel are basically similar. However, in terms of mechanical properties, since 316 stainless steel contains more nickel and molybdenum, it generally exhibits better ductility and toughness. This makes 316 stainless steel more suitable for certain applications that require high strength and high toughness.

4. Temperature tolerance

In high temperature environments, both 304 and 316 stainless steels maintain good strength and corrosion resistance. However, when it comes to extremely low temperatures, 316 stainless steel generally has better low-temperature impact toughness due to the presence of more nickel. This makes 316 stainless steel more advantageous in applications that need to withstand extreme temperature changes, such as liquefied natural gas (LNG) storage tanks.

5. Processing and welding properties

From the perspective of processing and welding, both 304 and 316 stainless steel have good plasticity and weldability. However, since 316 stainless steel contains more alloying elements, it may require more heat input during welding. In addition, during the heat treatment process after welding, 316 stainless steel also requires more delicate control to avoid sensitization (i.e., the precipitation of chromium carbides leads to a decrease in corrosion resistance).

6. Cost and application considerations

Because the alloy composition of 316 stainless steel is more complex and contains precious molybdenum elements, its cost is generally higher than that of 304 stainless steel. When selecting stainless steel materials, in addition to considering its corrosion resistance and mechanical properties, it is also necessary to weigh the cost-effectiveness of the specific application. For example, it may be necessary to use 316 stainless steel in a marine environment or a high chloride environment, while it is more economical to use 304 stainless steel in a general atmospheric environment.

Typical application scenarios:

(1) Applicable occasions for 304 stainless steel

Food industry: tableware, kitchen equipment, dairy processing pipelines (FDA certified).
General industry: heat exchangers, storage tanks, chemical equipment (non-strongly corrosive media).

Architectural decoration: elevators, curtain walls, railings (resistant to atmospheric corrosion, low cost).
HVAC: water pipes, condensers (fresh water environment).

(2) Applicable occasions for 316 stainless steel

Marine environment: ship parts, seawater desalination equipment, coastal buildings (resistant to salt spray).
Medical equipment: surgical instruments, implants (316L low-carbon version is safer).

Chemical industry: chloride ion-containing media (such as bleach, hydrochloric acid pipelines).
High-end food: high-salt, high-acid environment (such as soy sauce fermentation tanks).

304 stainless steel vs. 316 stainless steel: How to choose?

Choose 304/304L: Limited budget, medium is ordinary water, weak acid, atmospheric environment (such as home, construction).
Choose 316/316L: contact with seawater, salt water, strong acid or high hygiene requirements (such as chemical industry, medical treatment).

Note:
In chloride ion environment (such as swimming pool, coastal area), 304 may be pitted, 316 is more reliable.
For high temperature environment (>800℃), it is recommended to use 310S (25Cr-20Ni) instead of 304/316.

FAQ:

A: Can 304 and 316 be distinguished by appearance?
Q: No, the appearance of the two is almost the same, and they need to be tested by spectrometer or chemical reagents.

A: What is the difference between 316L and 316?
Q: 316L is a low-carbon version (C≤0.03%), which is not easy to precipitate carbides during welding and is more suitable for welded parts and medical purposes.

A: Can 304 replace 316?
Q: It can be used in ordinary environment, but it will shorten the life and even cause safety hazards in high chlorine and high acid environment.

Conclusion:

There are significant differences between 316 stainless steel and 304 stainless steel in chemical composition, corrosion resistance, physical and mechanical properties, temperature tolerance, processing and welding performance, as well as cost and application. When choosing, a comprehensive evaluation should be made based on the specific application environment and performance requirements. In highly corrosive environments or applications with higher requirements for material performance, 316 stainless steel is usually a better choice; while in general environments or when costs are strictly controlled, 304 stainless steel is more suitable. By deeply understanding the differences in the characteristics of these two stainless steels, we can make more informed material selection decisions. These alloys cannot be hardened by heat treatment, but can produce high strength through cold working.

304 is an economical and versatile stainless steel, while 316 performs better in harsh environments with the addition of molybdenum (Mo). When choosing, you need to consider the medium composition, environmental corrosiveness, and budget to avoid "excessive performance" or "insufficient performance" that may lead to cost or life problems.
