Steel Pipe Elbow Angles: How to Choose?

Choosing the right elbow angle is critical for flow efficiency, pressure drop, and installation space. The three most common pipe elbow angles are 45°, 90°, and 180° — each suited to different piping layouts. This guide compares their characteristics and helps you select the right one for your application.

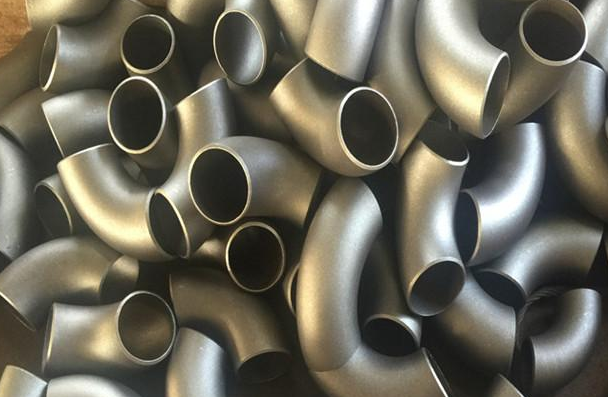

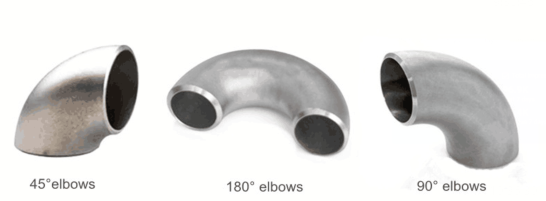

45° vs 90° vs 180° Steel Elbow Angles

Angle	Pressure Drop	Space Requirement	Typical Application
45°	Low	Moderate	Gradual turns, pump suction/discharge
90°	Higher	Compact	Standard piping layouts, right-angle turns
180°	Highest	Requires U-turn space	Heat exchangers, return bends

1. 45 degree elbow

The 45-degree pipe elbow is one of the most commonly used elbows, and its angle is generally 45 degrees. Its function is to change the flow direction of the pipe and turn the medium such as water flow from one direction to another. The elbow angle is relatively small and the resistance to fluid is relatively small, so it is widely used in industrial piping systems, especially where the direction of water flow needs to be changed.

2. 90 degree elbow

The 90-degree pipe elbow is another common type of elbow with an angle of 90 degrees, which is suitable for scenarios where the direction of the pipe needs to be significantly changed. Compared with the 45-degree elbow, the 90-degree elbow has a larger turning angle, which will have a certain impact on the resistance of the fluid. It is more suitable for systems that require a larger flow angle, so you need to choose carefully when designing the piping system.

3. 180 degree elbow

A 180-degree pipe elbow is a U-shaped elbow that allows the medium in the piping system to flow normally in the opposite direction. Because its angle is very large, it will produce a large resistance when the fluid passes through, so it is not recommended to be used under normal circumstances. However, in some special occasions, such as the transportation of low flow rate or high viscosity fluids, in order to maintain the stability of the pipeline and the uniformity of flow rate distribution, 180-degree elbows will also be used. Often used in combination with other types of elbows where a complete reversal of direction is required.

How to Choose the Right Angle?

● If space allows and pressure drop matters → 45° elbow
● If a right-angle turn is required → 90° elbow
● If the flow must reverse → 180° elbow (but check pressure drop carefully)

While 45°, 90°, and 180° elbows cover most piping applications, other angles are available for specialized layouts. These are less common but can be useful in specific situations.

Other Angle Elbows:

In addition to the common angles mentioned above, there are also other angles of elbows, such as 30 degrees, 60 degrees, 135 degrees, etc. These angled elbows are suitable for specific piping systems, such as fountain systems that require water to flow at a fixed angle. However, they are far less common than the three standard angles above.

30 degree elbow:
A 30-degree pipe elbow has an angle of 30 degrees and is usually used in piping systems where the direction of fluid flow needs to be forced to change. 30-degree elbows are not commonly used in construction, but can be very useful in specific situations, such as when a duct system needs to be routed around certain obstacles.

60 degree elbow:
A 60-degree pipe elbow has an angle of 60 degrees and is typically used in piping systems where fluid flow needs to change direction. Compared with 30-degree elbows, 60-degree elbows have a greater degree of bend and can better circumvent obstacles in the piping system.

135 degree elbow:
Creates a wide, gradual turn — essentially a 45° turn in the opposite direction. Compared to a 90° elbow, it generates less turbulence and lower pressure drop; it is suitable for applications requiring a significant change in flow direction without the complete reversal associated with a 180° elbow, such as in certain chemical and food processing piping systems.

Conclusion

For different pipeline systems, choosing the right elbow angle is important. Factors to consider include the nature of the fluid, flow rate, and pipe diameter. A reasonable selection can improve flow performance, reduce friction, noise, and energy consumption, and improve the efficiency and safety of the pipeline system.
