Pipe elbow size selection

Keywords: pipe elbow size, elbow fittings size selection, elbow purchasing, pipe elbow specifications
The size selection of pipe elbows mainly depends on the specific needs of the pipeline system, including elbow material, elbow size, bending angle, bending radius and flow rate, space constraints and other factors. ‌

1. Elbow material
The material is the manufacturing material of the elbow. Common elbow pipe fittings materials include cast iron, carbon steel, stainless steel, copper, etc. ‌Selecting the appropriate material can ensure that the elbow has good corrosion resistance and mechanical properties, and can adapt to different working environments. ‌

2. Elbow size

The connection size refers to the diameter of the two pipes connected by the elbow, usually expressed in inches (in) or millimeters (mm). ‌For example, a ‌1/2-inch elbow means the connection size is 1/2-inch. ‌The size of the elbow should match the size of the pipe. Typically, the size of the elbow corresponds to the outside diameter of the pipe.

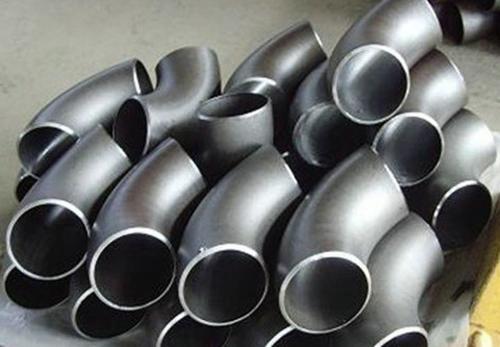

pipe elbows


3. Bending angle
The angle of the elbow is also an important consideration in size selection. The bending angle refers to the angle of the bending part of the elbow. Common elbow angles are 45 degrees, 60 degrees, 90 degrees and 180 degrees. Choose the appropriate angle size according to actual needs to ensure the correct direction of the pipe.

4. Bending radius
The bending radius refers to the arc radius of the curved part of the elbow. Common bending radii are 1D times, 1.5D times and 3D times. ‌Selecting the appropriate bend radius is critical to ensuring the smooth operation of your piping system.

5. Flow rate
Fluid will cause flow losses in the elbow. For fluids with high flow rates, larger elbow sizes may be required to reduce flow losses. ‌

6. Space limitations

Sometimes installation environment restrictions may affect the choice of elbow size. It is necessary to ensure that the elbow can fit into the installation space.


Material selection for pipe elbows:

When selecting elbow materials, the following main factors need to be considered:

‌1. Use environment and medium‌
Different media have different requirements for the corrosiveness and temperature of elbows. For example, cast steel elbows are suitable for medium occasions such as high temperature and high pressure, strong corrosion, and high viscosity fluids; carbon steel elbows are suitable for general fluid transportation occasions; stainless steel elbows are suitable for oxidizing media, acid and alkali resistant media, etc.; copper elbows are suitable for water heating systems and air conditioning systems because they can cope with large water flow and high pressure.

‌2. Strength and wear resistance‌
Cast steel elbows have high strength and wear resistance and are suitable for industrial fields; carbon steel elbows are hard but low cost and are suitable for general fluid transportation; stainless steel elbows have strong corrosion resistance and are suitable for medicine, food, electronics and other fields; copper elbows have good conductivity and corrosion resistance and are suitable for water heating systems and air conditioning systems.

‌3. Cost and price‌
Carbon steel elbows have a lower cost and are suitable for occasions with limited budgets; although stainless steel elbows have a higher cost, they are corrosion-resistant and have a longer service life, making them suitable for occasions with higher material requirements; copper elbows have a higher cost, but their excellent conductivity and corrosion resistance make them advantageous in certain specific applications‌.


Common elbow pipe fitting materials and their characteristics are as follows:


‌1. Cast steel‌
Cast from molten steel, it has the advantages of high strength, wear resistance, and corrosion resistance. It is suitable for media applications such as high temperature, high pressure, strong corrosion, and high viscosity fluids.

2. Carbon steel‌
It is processed from raw materials such as carbon and iron. It is hard, lightweight and low-cost. It is suitable for general fluid transportation occasions.

‌3. Stainless steel‌
Made of chromium, nickel and other major alloys, it has good corrosion resistance and is suitable for oxidizing media, acid and alkali resistant media, etc. It is often used in medicine, food, electronics and other fields.

4. Copper‌
It has good electrical conductivity and corrosion resistance, and is suitable for water heating systems and air conditioning systems, and can cope with situations of large water flow and high pressure.


In summary, the above factors need to be considered when selecting the size of the elbow. It is best to consult a professional engineer or supplier for specific situations.
