180 degree elbow pipe fittings

Elbow is a pipe fitting used to change the flow direction of a pipe and connect two pipes in different directions. It is widely used in pipeline systems in the fields of petroleum, natural gas, chemical industry, water treatment, etc.

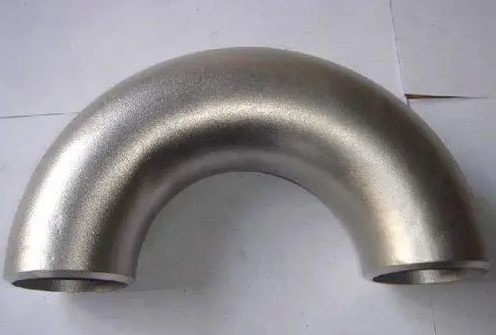

180 degree pipe elbow is an elbow with an angle of 180 degrees, which is mainly used in places where the pipe system needs to change direction and return the pipe to the origin. In addition, it can also be used in heat exchangers and other systems that need to flow in the opposite direction. Because its bending angle is very large, it is usually only used in a few cases. Commonly used are 45° elbows and 90° elbows.

According to the material, it can be divided into: carbon steel elbow, cast steel elbow, alloy steel elbow, stainless steel elbow, copper elbow, aluminum alloy elbow, etc. According to the manufacturing method, it can be divided into: push elbow, stamping elbow, forged elbow, cast elbow, etc.

In fact, the 180° elbow is not a regular standard product, because its demand in practical applications is not particularly common. On the one hand, a 180° elbow will cause greater resistance to the fluid in the pipeline, thus affecting the operating efficiency of the entire system; on the other hand, since a 180° elbow requires a larger radius of curvature, it is difficult to meet in some narrow spaces. Therefore, the use of 180° elbows is not encouraged in traditional pipeline design.

However, for some special occasions, the use of 180° elbows is inevitable. In this case, people usually choose to adopt customized solutions. This may include custom design and production of 180° elbows, or other special pipe connection methods to replace traditional elbows. No matter which method is adopted, the system needs to be precisely calculated and designed to ensure the normal operation and safety of the system.

Elbow radius:
The bending radius is about 1.0 times the outer diameter of the pipe, which is called a short radius elbow; about 1.5 times the outer diameter of the pipe is called a long radius elbow. When arranging the pipeline system, it is generally advisable to use long radius elbows for connection. Short radius elbows are usually used in occasions where the pipe system is installed in a compact position or to reduce costs. When using short radius elbows, their maximum working pressure should generally not exceed 0.8 times that of long radius elbows of the same specification. Elbows are usually used for low pressure (design pressure s2.0MPa), water and similar large-sized pipelines with relatively mild fluid media conditions. When the single-section change of direction angle of the miter elbow is greater than 45°, it should not be used in pipelines with toxic or flammable media, or pipelines that are subjected to vibration, pressure pulsation, and alternating loads due to temperature changes.

Application of 180-degree elbows:
The 180-degree elbow has a wide range of uses, including but not limited to: connection of pipeline systems, turning of pipeline systems, deformation treatment of pipeline systems, and installation of pipeline equipment. It should be noted that the selection and use of carbon steel 180-degree elbows should consider factors such as pressure level, material grade, and surface treatment to ensure safety and applicability. 180-degree elbows are suitable for gas, liquid, steam, etc., and are widely used in various large-scale projects such as petroleum, chemical, electricity, construction, and water conservancy.

Conclusion:

The question of whether there is a 180-degree elbow is not a simple yes or no question. In most cases, the use of 180-degree elbows is not encouraged in traditional pipeline design because it will cause greater fluid resistance and design challenges. However, in some special occasions, the use of 180-degree elbows is inevitable, which requires us to adopt customized solutions to meet actual needs. In future engineering designs, we need to think and deal with this issue more flexibly to meet the actual needs of different occasions.

Read more: Types, advantages and disadvantages of elbows
