Seamless Steel Pipe Bending and Forming Process

What are the bending and forming processes for seamless steel pipes?

Seamless steel pipes (SMLS pipe) are widely used in many fields, and their bending and forming processes are crucial for meeting diverse engineering needs. Bending and forming of seamless steel pipes is a key process in pipe prefabrication and structural manufacturing. The choice of process mainly depends on the pipe specifications (diameter, wall thickness), material, bending radius requirements, production volume, and quality precision.

The bending processes for seamless steel pipes are mainly divided into two categories: Cold bending and Hot bending.

1. Cold Bending Process

Cold bending is a process of bending seamless steel pipes at room temperature, suitable for most carbon steel and low-alloy steel seamless pipes. This process has many advantages. First, it can better maintain the surface quality of the seamless steel pipe because there is no high temperature effect, and defects such as oxide scale will not appear on the steel pipe surface. Second, the cold bending process can precisely control the bending angle and radius, meeting high-precision engineering requirements.

Common cold bending methods include the following:

- Roll Bending: Roll bending uses three or more rollers forming a continuous bending die to bend the seamless steel pipe. Two of these are active rollers, and one is a passive roller. The steel pipe moves forward under the rotation of rollers, while the passive rollers apply pressure to bend the pipe. This method is suitable for seamless steel pipes with large bending radii (such as structural arches and coils), and can achieve continuous or progressive bending with high production efficiency.

- Press Bending: Press bending uses a press (hydraulic or mechanical press) and a die to bend seamless steel pipes. The steel pipe is placed in the die, and pressure is applied by the press, causing the pipe to bend under the action of the die. Press bending can achieve various shapes of bends, such as U-shapes and V-shapes, but it can only bend one angle at a time, resulting in relatively low production efficiency. Die pressing is suitable for small-batch production of single bends, folds, or complex bends with straight sections, such as structural components, furniture frames, and automotive anti-collision beams.

- Circumferential Bending (Most Common): The steel pipe is clamped on a bending die and rotates with the die. The pressure block (moving die) presses the steel pipe firmly into the groove of the bending die, and the guide die controls the feeding direction. This is the most common "pipe bending machine" process. High flexibility in bending; different radii can be adapted by changing the bending die. When used with a mandrel, it effectively prevents wrinkling on the inner side of thin-walled tubes and flattening of the cross-section.

Bending can be further divided into:
Manual/Hydraulic bending: Early or simple equipment.
CNC bending: Modern mainstream; through a CNC system, it precisely controls the bending angle, planar rotation (POB), and feed (DOE), enabling precise forming of complex spatial multi-bend tubes.

2. Hot Bending Process

Hot bending is a process of bending seamless steel pipes after heating them to a certain temperature (usually 850-950℃). The purpose of heating is to reduce the hardness of the steel pipe, increase its plasticity, and make the steel pipe easier to bend. Hot bending is suitable for large-diameter, small-bending-radius, thick-walled pipes, or high-strength alloy pipes.

Common hot bending methods include:

- Induction heating bending: Induction heating bending uses an induced magnetic field generated by a medium-frequency current to locally heat the steel pipe. The steel pipe is passed through an induction coil. When current passes through the coil, an induced current is generated inside the pipe, rapidly heating it to the required temperature. The heated pipe is then bent using a mechanical device. This method offers rapid heating, concentrated heating, precise control of heating temperature and bending angle, and high bending quality. It is currently the standard process for hot bending of large-diameter, high-pressure pipelines (such as main steam pipes in power plants and petrochemical pipelines).

- Flame Heating Bending: Flame heating bending uses a flame to heat the steel pipe. Typically, a flame generated by the combustion of a mixture of gases such as oxygen and acetylene is used. After reaching a certain temperature, the pipe is bent manually or mechanically. While flame heating bending equipment is simple and inexpensive, it suffers from slow heating speed, uneven heating, relatively poor bending quality, and low production efficiency. It is more commonly used for on-site maintenance, small-batch single-piece production, or applications where high quality requirements are not critical.

3. Other Bending and Forming Processes

- Hydraulic Bending: Hydraulic bending utilizes pressure provided by a hydraulic system to bend seamless steel pipes. Hydraulic bending uses a hydraulic cylinder to push a bending die, causing the steel pipe to bend under the action of the die. Hydraulic bending features high bending force and high bending precision, making it suitable for bending large-diameter, thick-walled seamless steel pipes.

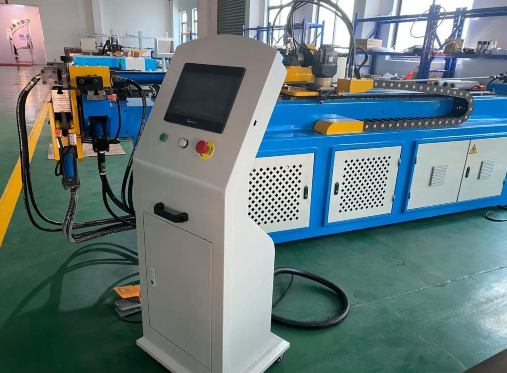

- CNC Bending: CNC bending utilizes a computer control system to precisely control the bending process. By inputting bending parameters, the computer controls various actions of the bending equipment, achieving automated bending. CNC bending improves bending accuracy and production efficiency, and is suitable for batch production of small and medium-sized pipes and bending of complex shapes.

Conclusion:

The bending process of seamless steel pipes has become highly specialized. Different steel pipe bending forming processes have their own advantages and disadvantages. In practical engineering applications, it is necessary to select the appropriate bending process based on factors such as the material, specifications, and bending radius requirements of the seamless steel pipe to ensure bending quality and production efficiency.

For example, cold bending forming processes (especially CNC bending) have become the mainstream choice for small and medium-sized pipe fittings due to their high efficiency and precision. Induction heating bending is a key technology for solving the problem of bending large-diameter, thick-walled, and small-radius pipes.
