Carbon Steel Pipe Maintenance

How to maintain carbon steel pipe?

The surface metal of carbon steel pipes (CS pipe) reacts chemically with oxygen and moisture in the air, forming oxide scale and rusting. Furthermore, carbon steel pipes are susceptible to moisture, chemical corrosion, and other factors, leading to rust. The core principle of carbon steel pipe maintenance is to isolate corrosive media. Maintenance strategies depend primarily on the condition of the pipe and its operating environment.

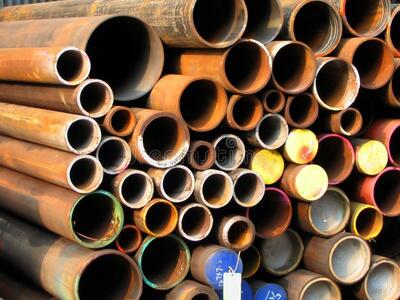

Maintaining new pipes in stock:

This is crucial for preventing rust before carbon steel pipes are put into service.

1. Storage Environment

Indoor warehouses are the best choice. Warehouses should be well ventilated and dry, with relative humidity ideally below 60%.

Outdoor storage: If outdoor storage is necessary, choose a site on elevated ground with wooden planks or gravel laid on the ground to avoid direct contact with soil. Pipe stacks must be securely covered with rainproof tarpaulins to ensure rainwater can drain away and prevent water accumulation.

2. Storage Methods

Raising: Steel pipes should be elevated (at least 20-30 cm) to avoid direct contact with the ground and prevent ground moisture and water accumulation.
Classified Storage: Carbon steel pipes of different materials and specifications should be stored separately to prevent electrochemical corrosion.
Keep Clean: Promptly remove dust, debris, and rainwater from the pipe surface, as these substances absorb moisture and accelerate corrosion.

3. Protective Measures

Rust-Proofing: For precision carbon steel pipes that require long-term storage, apply a layer of rust-proofing oil or a special rust inhibitor to the surface.
Built-In Desiccant: For pipes with sealed ends, place a desiccant bag inside the pipe to absorb internal moisture.
Regular Inspection: Regularly inspect stored steel pipes, especially those stored outdoors, to check for surface rust and ensure the tarpaulin is intact.

In-Service Pipeline Maintenance:

For carbon steel pipe systems already in service, maintenance is more complex and critical.

1. Exterior Maintenance: Coating Protection

Surface Treatment:
First, remove rust, scale, and old paint from the steel pipe surface. The best method is sandblasting, which can achieve a Sa2.5 standard and expose the natural metal color. Then, apply a rust-resistant primer. After the paint dries, apply a weather-resistant topcoat.

Paint/Coating System:

Regular Inspection and Repair: Regularly inspect the exterior coating of the pipe for peeling, cracking, or scratches, and promptly perform local repairs to prevent damaged areas from becoming the starting point of rust.

2. Internal Maintenance: Media Control and Lining

Media Control: Control the properties of the conveying medium as much as possible, such as adjusting the pH value to reduce the chloride ion and oxygen content in the water.

Water System Maintenance:
a. Corrosion Inhibitor Application: Adding a specialized corrosion inhibitor to the circulating water system forms a protective film on the inner surface of the pipe, slowing down corrosion.
b. Inactivity Protection: For equipment and pipelines that are out of service for an extended period, drain any accumulated water and dry them. Nitrogen can be injected for protection if necessary.

3. Maintenance for Special Environments

Coastal/High-Humidity Environments: A higher-level anti-corrosion coating system must be used, and the inspection interval must be shortened. Underground pipelines: An external anti-corrosion coating (such as a 3PE coating) must be applied in conjunction with a cathodic protection system to inhibit electrochemical corrosion.
High-temperature environments: A high-temperature-resistant anti-corrosion coating is required.

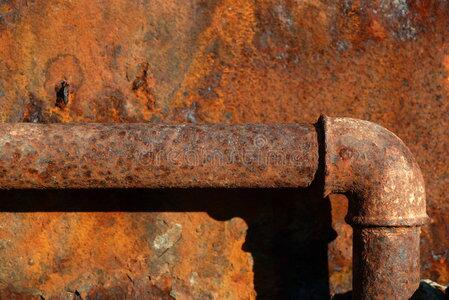

Rust Removal and Renovation:

If rust has already formed on carbon steel pipes, immediate action is required:

1. Manual Rust Removal: Use a wire brush or sandpaper for grinding. Suitable for small, uncritical areas.
2. Mechanical Rust Removal: Use an electric angle grinder with a wire wheel or louver blades. This is a highly efficient and commonly used method.

3. Professional Rust Removal:
Sandblasting/Shot Blasting: The most thorough and effective methods, providing an ideal surface for subsequent painting.
Chemical Rust Removal: Use an acid pickling paste or solution. Remember to neutralize and rinse afterward to prevent secondary corrosion.

After rust removal, reapply the anti-corrosion coating immediately!

Conclusion:

For carbon steel pipes, "prevention is better than cure." A one-time, high-quality anti-corrosion investment is far more economical than the subsequent ongoing rust removal, repairs, and production downtime losses caused by pipeline leaks. Establishing a regular inspection and maintenance system is fundamental to extending the service life of carbon steel pipes.
