Low Temperature Seamless Steel Pipe

What are Low-Temperature Seamless Steel Pipes?

Low-temperature seamless steel pipes are seamless steel pipes specifically designed for low-temperature environments. Manufactured through special material ratios and heat treatment processes, they maintain good toughness and strength even at extremely low temperatures. They are widely used in pressure pipeline systems in petrochemical, natural gas liquefaction (LNG), air separation equipment, and cryogenic storage tanks.

In low-temperature environments, ordinary steel pipes experience cold brittleness—that is, the material suddenly fractures without significant plastic deformation. This is a major safety hazard that must be avoided in industrial applications. Low-temperature seamless steel pipes, with their excellent low-temperature impact toughness, have become the ideal choice for these harsh operating conditions.

Applicable Temperature Range of Low-Temperature Seamless Steel Pipes:

In engineering practice, "low temperature" usually refers to the range of -20℃ to -196℃. Different temperature levels require different materials; the core principle of material selection is: the lower the temperature, the higher the requirements for the material.

● -20℃ ~ -45℃: Low-temperature carbon steel (e.g., ASTM A333 Gr.6), suitable for most petrochemical cryogenic pipelines;
● -45℃ ~ -101℃: Nickel-containing low-alloy steel (e.g., ASTM A333 Gr.3, 3.5% Ni), suitable for outdoor pipelines in cold northern regions;
● -101℃ ~ -196℃: Higher nickel alloy steel (e.g., 9% Ni steel) or austenitic stainless steel, suitable for cryogenic media such as ethylene and liquefied natural gas (LNG);
● -196℃ and below: Austenitic stainless steel (e.g., 304, 316) or nickel-based alloys, suitable for ultra-low temperature conditions such as liquid nitrogen and liquid oxygen (austenitic stainless steel is required at this temperature).

Selection of Materials for Low Temperature Seamless Steel Pipes:

The choice of materials for low temperature seamless steel pipes is directly related to their performance in low temperature environments. Commonly used materials for low temperature seamless steel pipes include low temperature carbon steel, cryogenic alloy steel, and austenitic stainless steel. These materials undergo rigorous screening and testing during design and production to ensure stable performance within the specified cryogenic range.

1. Low-Temperature Carbon Steel
Low-temperature carbon steel is a commonly used material for seamless steel pipes at low temperatures, possessing excellent low-temperature toughness and weldability. By controlling the carbon content, refining the grain size, and limiting the content of impurities such as phosphorus and sulfur, low-temperature carbon steel can maintain its strength and toughness within a design temperature range above -45℃, making the seamless steel pipe less prone to brittle fracture in low-temperature environments. Commonly used low-temperature carbon steel materials include ASTM A333 Gr.6 (pipes) and its matching pipe fitting materials, such as ASTM A420 WPL6. These grades represent different chemical compositions and mechanical properties to meet the needs of various industries.

2. Low-Temperature Alloy Steel

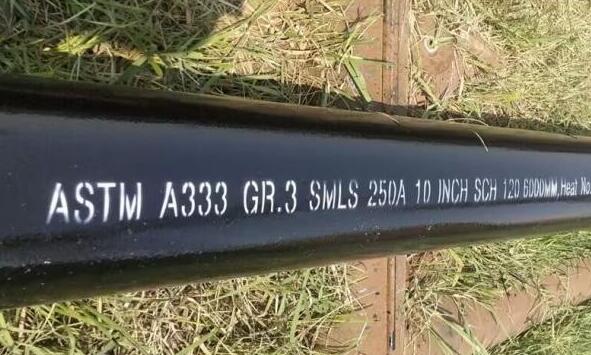

Low-temperature alloy steel is another important material for seamless steel pipes at low temperatures. By adding alloying elements such as nickel (Ni) (e.g., 3.5% Ni) to the steel, low-temperature alloy steel can significantly improve its low-temperature toughness at even lower temperatures (e.g., -101℃) while maintaining a certain level of corrosion resistance. This makes low-temperature alloy seamless steel pipes widely used in cryogenic fields such as petrochemicals, ethylene plants, and liquefied natural gas pretreatment. Commonly used low-temperature alloy steel materials include ASTM A333 Gr.3, suitable for -101℃, and ASTM A333 Gr.7/ Gr.9, which meet specific operating conditions. These grades represent different alloy element contents and mechanical properties to meet the needs of different operating conditions.

3. Austenitic Stainless Steel
When the design temperature is below -101℃, especially as low as -196℃ (liquid nitrogen temperature) and below, the aforementioned ferrite-based low-temperature carbon steels and low-temperature alloy steels will lose sufficient impact toughness due to the limitations of their crystal structure. At this time, austenitic stainless steel becomes the preferred material for ultra-low temperature conditions.

Austenitic stainless steel (such as ASTM A312 TP304/304L, TP316/316L, etc.) has a face-centered cubic crystal structure. This structure inherently possesses excellent low-temperature toughness and does not exhibit the ductile-brittle transition phenomenon of ferritic steels. In cryogenic environments, the tensile strength and yield strength of austenitic stainless steel actually increase with decreasing temperature, while maintaining good ductility. Therefore, it is particularly suitable for core pipelines in liquefied natural gas (LNG, -162℃), liquid nitrogen (-196℃), liquid oxygen, and cryogenic air separation units.

It is important to note that austenitic stainless steel, due to its face-centered cubic structure, does not exhibit a ductile-brittle transition, and is therefore usually exempt from cryogenic impact testing in standards and specifications. However, for other types of cryogenic pipeline materials (such as cryogenic carbon steel and cryogenic alloy steel), and for welded joint areas of all materials, the risk of cryogenic brittle fracture is a core design consideration.

Therefore, for carbon steel and alloy steel pipeline components designed for temperatures below or equal to -20℃, and for any areas affected by weld heat effects, cryogenic impact toughness testing must be conducted according to relevant standards (such as ASME B31.3 or GB/T 20801), and only those that pass the test can be used.

How to Correctly Select and Use Low Temperature Seamless Steel Pipes?

Choosing the right low temperature seamless steel pipe directly affects the safety and economy of the pipeline system. The following steps are recommended:

1. Determine the Design Temperature
Determine the minimum design temperature for the pipeline operation. This is the most important basis for material selection:

-20℃ ~ -45℃: ASTM A333 Gr.6 or GB 16MnDG are preferred.
-45℃ ~ -101℃: Consider nickel-containing alloy steels such as ASTM A333 Gr.3.
< -196℃: Austenitic stainless steel must be used.

2. Confirm Dimensions and Wall Thickness
Calculate the required wall thickness based on the design pressure and temperature. Common specifications for low-temperature seamless steel pipes range from DN15 to DN1200, and the wall thickness must meet the requirements of pressure piping specifications such as ASME B31.3 or GB/T 20801.

3. Focus on Quality and Testing
High-quality low-temperature seamless steel pipes should undergo the following rigorous tests:
Chemical Composition Analysis: Ensure extremely low levels of harmful elements such as sulfur (S) and phosphorus (P).
Mechanical Property Testing: Including tensile tests and low-temperature impact tests.
Non-destructive testing: Ultrasonic testing (UT) ensures the pipe body is free of internal defects.

4. Compare supplier qualifications.

Choose reputable suppliers who can provide complete quality certificates and traceability documentation. Don't just compare prices; after-sales service and delivery time are equally important.

Key Points for Installation and Maintenance of Low Temperature Seamless Steel Pipes:

a. Standardized installation: Welding must use matching cryogenic welding rods/wires, and welding procedure qualification must be strictly followed. Avoid forceful assembly during installation to prevent excessive stress.
b. Regular inspection: Regularly conduct wall thickness checks and leak tests during operation, especially at easily eroded areas such as bends and tees.
c. Corrosion protection maintenance: Depending on the medium and environment, perform external and internal corrosion protection to prevent corrosion from causing wall thinning.

In short, choosing cryogenic steel pipes isn't that difficult. Just remember one core principle: In what temperature environment will your pipe operate?

Temperature is the deciding factor. For temperatures of -40 to -50 degrees Celsius, the most commonly used Gr.6 low-temperature carbon steel is used—it's robust, durable, and cost-effective. For even colder temperatures, like -100 degrees Celsius, nickel is added, and Gr.3 alloy steel is used. If the temperature drops to -160 to -170 degrees Celsius (for example, when transporting liquefied natural gas), ordinary steel won't withstand the cold, and stainless steel must be used.

In short, it's a matter of "adapting to the temperature." Choosing the right material and verifying it with reliable testing methods to ensure the pipes won't become brittle or crack in cold conditions ensures the project is successful.
