Characteristics, uses and connection methods of small-diameter pipe elbows

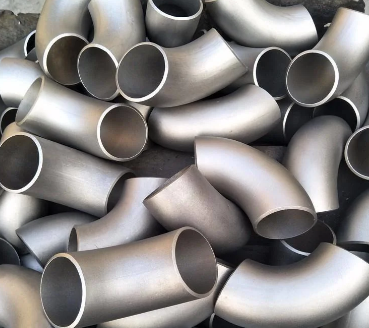

Small-diameter pipe elbows are a type of connector used to change the direction of pipes, commonly found in pipe systems in industrial, construction and civil fields. Small-diameter pipe elbows have the following characteristics:

1. Small size, suitable for flexible layout in modern decoration.
2. Small bending radius, usually a fraction of the pipe diameter, easy to install and operate.
3. Usually manufactured by forging, casting or welding, with high strength and corrosion resistance.
4. Due to its small size and suitable bending radius, it can be used for various types of pipe connections, including right-angle connections and cross connections.

5. Small-diameter elbows can also be used for bending and repairing pipes, with high convenience and economy.

Types and materials of small-diameter pipe elbows:

Small-diameter pipe elbows can be divided into 45-degree elbows, 90-degree elbows, 180-degree elbows and other types according to different angles. In addition, there are other abnormal angle elbows such as 60 degrees to meet specific engineering needs. In terms of materials, small elbows can be made of cast iron, stainless steel, alloy steel, forgeable cast iron, carbon steel, non-ferrous metals and plastics to adapt to different working conditions and environmental conditions.

Uses of small-diameter pipe elbows:

Small-diameter pipe elbows are widely used in various engineering fields, including but not limited to:

1. Construction field: In building water supply and drainage systems and HVAC systems, small-diameter elbows are used to connect pipes in different directions to ensure smooth water or air flow.
2. Chemical industry: In chemical pipeline systems, small-diameter elbows are used to change the direction of material flow to ensure the smooth progress of the process. At the same time, since chemical pipelines often involve complex working conditions such as high temperature, high pressure, and corrosive media, small elbows must also have pressure resistance and corrosion resistance.
3. Petroleum field: In the process of oil extraction, processing and transportation, small-diameter elbows also play an important role. They are used to connect oil and gas pipelines in different directions to ensure the smooth transportation of oil and gas resources.
4. Water treatment field: In water treatment systems, small-diameter elbows are used to change the direction of water flow and ensure the smooth progress of the water treatment process. In addition, in sewage treatment systems, small elbows can also be used to adjust the water flow rate and improve sewage treatment efficiency.

It should be noted that the specific application and performance of small-diameter pipe elbows may vary depending on factors such as materials, manufacturing processes and brands.

Connection methods of small-diameter pipe elbows:

There are various ways to connect small-diameter pipe elbows to pipes, mainly including the following:

1. Welding connection (the most commonly used method): By welding the elbow to the pipe together, a firm connection is formed, which is suitable for metal materials.
2. Flange connection: The elbow is connected to the pipe through a flange and bolts, which is easy to disassemble and repair.
3. Threaded connection: Suitable for small-diameter pipe systems, installation is achieved through the rotation connection of the thread.
4. Other special connection methods: such as socket connection, hot melt connection, electric fusion connection, etc.

These connection methods have their own advantages and disadvantages, and the specific selection needs to be considered comprehensively based on the actual project situation and factors such as pipe material.
