Pipe Elbow Pressure Rating and Selection Principles

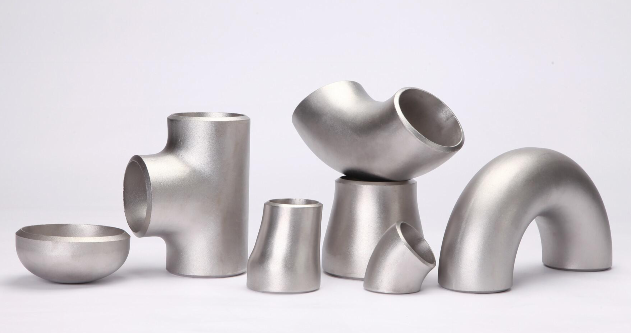

Elbows are pipe fittings commonly used in piping systems to change the flow and direction of fluids. When using pipe elbows, be sure to consider the pressure they bear. Therefore, the classification of elbow pressure levels is very important.

What is Elbow Pressure Rating?

Elbow pressure rating refers to the maximum working pressure that an elbow can safely withstand in a piping system. Choosing the wrong pressure rating can lead to pipe leaks, ruptures, or even serious safety accidents.

Elbow pressure ratings are usually expressed using a wall thickness series (Schedule Number, abbreviated as Sch), rather than a simple "low pressure, medium pressure, high pressure" classification.

Elbow Pressure Rating Classification:

1. American Standard System (ASME B16.9): Sch - Wall Thickness Series

This is the most commonly used classification method internationally. The pressure rating of elbows directly corresponds to their wall thickness, with the following 17 wall thickness ratings:

Series	Wall Thickness Rating
Thin Wall Series	Sch5s, Sch10s, Sch10, Sch20, Sch30
Standard Series	Sch40s, STD (Standard), Sch40
Thickened Series	Sch60, Sch80s, XS (Thickened), Sch80
Extra Thick Series	Sch100, Sch120, Sch140, Sch160, XXS (Double Thickened)

The two most commonly used ratings in engineering are STD (Standard Wall Thickness) and XS (Thickened Wall Thickness), suitable for most conventional industrial pipelines.

2. European/Chinese Standard System (ISO/GB): PN Nominal Pressure Rating

Nominal pressure (PN) refers to the maximum allowable working pressure of the elbow at a specified temperature.

Commonly used PN ratings include:
PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN400

Note: PN ratings cannot be directly converted to the American standard Sch series; a standard conversion table must be consulted.

Pipe Elbow Technical Requirements and Selection Principles:

1. Pressure rating matching: The elbow pressure rating ≥ the actual working pressure of the pipeline system, with a certain safety margin;
2. Nominal diameter must be equal: The nominal diameter (DN/NPS) of the elbow must be the same as the pipeline; "small pipe with large elbow" or "large pipe with small elbow" is strictly prohibited;
3. Prioritize long radius: Long radius elbows (R=1.5D) have lower flow resistance and lower pressure drop than short radius elbows (R=1.0D);
4. Material and environment matching: Stainless steel is selected for corrosive media; alloy steel is selected for high-temperature conditions;
5. Temperature Correction Considerations: Allowable stress decreases at high temperatures, necessitating the selection of higher pressure ratings.

Special Requirements for High-Pressure Elbows:

When the working pressure exceeds 10 MPa (approximately Class 600), special attention should be paid to:

● Prioritize seamless elbows: No weak weld seams.
● Wall thickness rating at least Sch80 or XS: Typically Sch160 or XXS.
● 100% Non-Destructive Testing: All high-pressure elbows must undergo radiographic or ultrasonic testing before leaving the factory.

Elbow Pressure Testing: Procedure and Requirements

After the elbow is manufactured, a pressure test must be performed to verify its pressure-bearing capacity. The standard procedure is as follows:

1. Hydrostatic test: Typically 1.5 times the working pressure, pressure holding time ≥ 5 minutes
2. Non-destructive testing: Including radiographic testing (RT) or ultrasonic testing (UT)

3. Testing standards: Detailed specifications are provided in standards such as ASME B16.9 and GB/T 12459.

Frequently Asked Questions (FAQ):

Q1: What is the difference between Sch40 and Sch40s? Can they be used interchangeably?

A: They cannot be simply interchanged.

Sch40: Suitable for carbon steel elbows (e.g., ASTM A234 WPB).
Sch40s: The "s" stands for "Stainless Steel," specifically for stainless steel elbows (e.g., ASTM A403 WP304/316).

Although both have the same wall thickness, their actual pressure-bearing capacity differs due to the different materials. Stainless steel (Sch40s) has better corrosion resistance than carbon steel (Sch40), but its strength at high temperatures may be lower than some alloy steels. When selecting a model, it is essential to match the material and wall thickness grade.

Q2: Does the pressure-bearing capacity of the same elbow differ at different temperatures?

A: No. Pressure-bearing capacity decreases with increasing temperature. Under high-temperature conditions, a higher wall thickness grade should be selected (e.g., upgrading from Sch40 to Sch80) or a high-temperature resistant material (e.g., alloy steel WP11, WP22).

The effect of temperature changes on the pressure-bearing capacity of elbows:
●Ambient temperature (20℃): Highest pressure-bearing capacity (standard rating)
●Medium temperature (200-400℃): Pressure-bearing capacity decreases by approximately 10%-20%
●High temperature (400-600℃): Pressure-bearing capacity decreases by 30%-50%, requiring the use of alloy steel.

Q3: For the same elbow used for gas and liquid, are the pressure rating requirements the same?

A: Not entirely the same.
When water hammer occurs in liquid pipelines, the instantaneous pressure can reach 3-5 times the normal operating pressure. Therefore, for elbows used in liquid pipelines, it is recommended to have a larger pressure rating margin than for gas pipelines (e.g., select one higher Sch rating).

Q4: Is a higher pressure rating for elbows always better?

A: Not necessarily; a balance needs to be struck between safety and economy.
Leave a 10%-20% safety margin while meeting the operating pressure. For pipelines with large pressure fluctuations or a risk of water hammer, a 25%-30% margin is recommended.

Q5: How to quickly determine the pressure rating of existing elbows?

A: Three methods can be used for quick determination.
a. Check markings: Elbows usually have markings such as "Sch40", "Sch80", "XS", etc.
b. Measure wall thickness: Measure the elbow wall thickness with a micrometer and refer to the Sch wall thickness table;
c. Check the material certificate: Check the wall thickness rating in the manufacturer's quality certificate (MTR).

Conclusion:

Correctly selecting the pressure rating of elbows is crucial to ensuring the safe operation of piping systems. When selecting elbows, factors such as pressure rating (Sch or PN), working pressure, test pressure, temperature, medium, and pipe diameter matching should be comprehensively considered, and standards and specifications such as ASME B16.9 and GB/T 12459 should be strictly followed.

Tips: ASTM A106 is a standard for seamless carbon steel pipes used in high-temperature applications, developed by the American Society for Testing and Materials. Seamless elbows made from steel pipes conforming to this standard typically correspond to the material grade of ASTM A234 WPB (carbon steel weld neck fittings standard).
