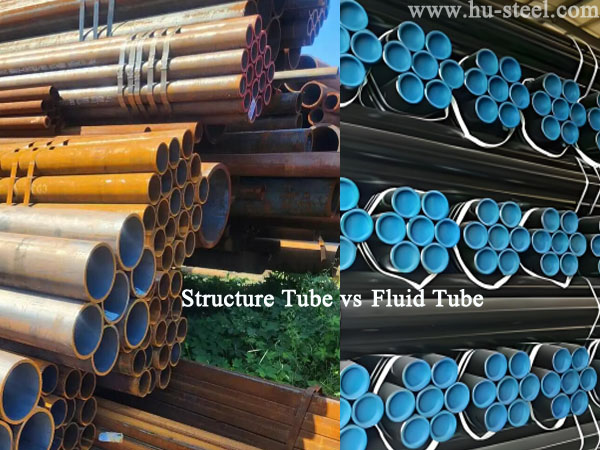

Structural tube vs. Fluid tube

Although both structural tubes and fluid conveyance tubes are steel pipes, they differ fundamentally from their design principles, standards, and quality control.

Key differences between structural tube and fluid conveyance tube:

Structural tubes: Their core function is to bear loads (support, bending, and tension, etc.). Like the "skeleton" of a building, they prioritize mechanical strength and stability.
Fluid Conveyance Tubes: Their core function is to safely and tightly transport fluids (water, gas, oil, etc.). Like the "blood vessels" of a building, they prioritize pressure-bearing capacity and sealing.

Absolutely Do Not Mix: Using structural tubes in pressurized fluid systems is strictly prohibited and extremely dangerous.

Structural tube:

Structural tube is a general structural steel tube, referred to as structural tube. It is suitable for seamless steel tubes for general structures and mechanical structures. The most common material is carbon steel, which can be divided into two types: ordinary carbon structural steel and high-quality carbon structural steel. There are many uses and a large amount of use. It is mainly used in railways, bridges, and various construction projects to manufacture various metal components that bear static loads, as well as unimportant mechanical parts that do not require heat treatment and general weldments.

Structural seamless tubes are steel tubes used to build various structures because they are used to build various structures that need to achieve several properties.
1. The pressure bearing capacity must be good, and no fracture can occur, otherwise, once an accident occurs, the construction of the entire project will be affected.
2. Easy to build. It only needs to be built according to the general standard, and it can be completed quickly.
3. Durable, it can be used for a long time after the project is completed, and it will not be damaged and worn for a long time.

Fluid tube:
The fluid tube standard is suitable for general seamless steel tubes for conveying fluids. Fluid seamless tubes are steel pipes used to transport various liquids and gases such as oil, natural gas, natural gas and water. Because it is used for transportation, fluid pipelines also have their own remarkable characteristics.

1. Good air tightness, no leakage is allowed during transportation, otherwise the gas will leak, and the consequences will be disastrous.
2. Prevent corrosion, because many transported objects are corrosive, if corrosion occurs, the entire project will be affected.
3. The smoothness of the pipe is very demanding, and it needs to meet the requirements before it can be made into a fluid pipe.

First, strictly speaking, they cannot be shared. Structural tubes require good pressure bearing capacity, while fluid pipes require good sealing performance. Therefore, the uses of the two are very different. Try not to use the wrong area.

Secondly, structural pipes have high requirements on cost, otherwise some steel tubes are not up to standard in terms of corrosion resistance or pressure bearing capacity, and are easily damaged. If water and food are transported by fluid pipelines, the hygienic requirements are stricter. It can be shared under special circumstances, and some features are the same, as long as the environmental requirements are not too harsh, they can be shared.

Structural tube vs. Fluid tube:

Below, we provide a detailed comparison from multiple perspectives:

1) Structural Tube

Core Function: Bearing Structural Loads (Support, Bending, and Torsion)
Common Standards: ASTM A500, ASTM A1085 (Higher Performance), GB/T 6728
Typical Applications: Building Frames, Mechanical Structures, Bridges, Vehicle Chassis, and Scaffolding. Hydrostatic Testing: Individual pipes are typically not subjected to hydrostatic testing.

Chemical Composition: The focus is on final mechanical properties, with relatively loose control over chemical composition. Carbon equivalent may be higher.
Key Performance Indicators: Yield strength, tensile strength, elongation, and cross-sectional geometry.

Production Process and Inspection: The production process primarily ensures mechanical properties and dimensions. Inspection focuses on mechanical property testing and dimensional measurement.
Appearance and Defect Permits: Certain surface defects that do not affect structural strength (such as minor scratches and scale) are permitted.

2) Fluid Tube

Core Function: Safely transport fluids under pressure (sealing and pressure resistance).
Common Standards: ASTM A106 (high temperature and high pressure), ASTM A53 (low and medium pressure), GB/T 8163.
Typical Applications: Oil/gas pipelines, steam pipelines, boiler piping, hydraulic systems, chemical equipment, and pipelines in the food and beverage industry.
Hydrostatic Testing: Hydrostatic testing is mandatory for each pipe, as it is the bottom line for ensuring the safety of pressure vessels.

Key performance indicators: Hydrostatic testing, non-destructive testing (NDT), chemical composition, and tolerance standards for defects.
Chemical elements: Chemical composition (such as the content of harmful elements such as S and P) is strictly controlled to ensure excellent weldability, toughness, and corrosion resistance.

Production process and inspection: The production process has higher requirements, and each pipe must undergo hydrostatic testing (testing to a pressure of at least 1.5-2 times the standard pressure). Non-destructive testing (such as eddy current ET and ultrasonic UT) is usually required to ensure the absence of defects.
Appearance and defect tolerance: Surface defects (such as cracks, scars, and folds) are subject to extremely strict limits, as these defects can become cracking points under pressure.

What are the risks of mixing structural pipe and fluid pipe?

Using structural pipe in fluid transportation systems is a significant safety hazard for the following reasons:

1. Unknown pressure capacity: Structural pipe has not been verified through hydrostatic testing. Tiny defects (such as cracks and inclusions) invisible to the naked eye may exist on the pipe wall. Under pressure, these defects can expand and eventually cause the pipe to burst.
2. Leakage Risk: Structural pipes do not require tight sealing. Even if they can withstand pressure, micro-leaks can still cause problems at the joints.
3. Material Compatibility: The strict control of the chemical composition of fluid pipes ensures their reliability during welding and corrosion resistance in specific media. Structural pipe materials may not possess these properties, leading to weld cracks or accelerated corrosion, further causing catastrophic failure.

Conversely, using fluid pipes as structural components is generally uneconomical. You pay extra for rigorous flaw detection and hydrostatic testing, but these features may be "overkill" for structural applications, and their mechanical properties may be inferior to those of structural pipes designed specifically for structural applications.
