Why are Carbon Steel Pipes Frequently Used in Circulating Water Systems?

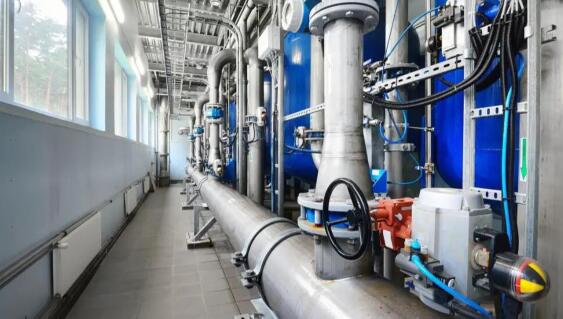

Circulating water systems are an indispensable part of industrial production, involving the recycling of water resources and playing a vital role in energy conservation, emission reduction, and environmental protection. The choice of pipe material is crucial in this system, and carbon steel pipes have become a common choice in the industrial field due to their numerous advantages.

1. Excellent Mechanical Properties

Carbon steel pipes possess high strength, rigidity, and toughness, enabling them to withstand water pressure fluctuations, temperature changes, and water hammer impacts caused by frequent start-ups and shutdowns in circulating water systems.

Circulating water systems are not like static tap water pipes; they frequently start and stop, require valve adjustments, and are even subject to water hammer impacts. Carbon steel pipes are robust, able to withstand pressure fluctuations, and withstand temperature changes ranging from sub-zero temperatures in winter to 70-80 degrees Celsius in summer. The pipes themselves deform minimally, unlike some plastic pipes which expand and contract with temperature changes, potentially causing the supports to tilt. Furthermore, their rigidity allows them to withstand pressure and impacts whether buried underground or installed overhead; they are even resistant to being stepped on during construction—this may sound like a small detail, but anyone who has worked on-site knows how important this is.

2. Controllability and Economy of Corrosion

Carbon steel pipes inherently have poor corrosion resistance, especially in circulating water environments (containing dissolved oxygen, chloride ions, etc.), where they are prone to uniform corrosion and pitting corrosion. This is the biggest weakness of carbon steel pipes. However, through reasonable anti-corrosion design and operation management, the corrosion rate can be effectively controlled.

In practical engineering projects, the approach is not to simply withstand the corrosion, but to give it a "protective coat"—an epoxy coating on the inner wall, a cement mortar lining, or the addition of corrosion inhibitors to the water. With this combined protection, the corrosion rate can be reduced to less than 0.1 mm per year, ensuring operation for over a decade. Moreover, the cost of this protection is far lower than using stainless steel or copper pipes directly. Simply put, carbon steel is "poor in foundation but can be compensated for with protective coatings," while stainless steel is "naturally good but too expensive." For large projects with limited budgets, the former is often more practical.

3. Comprehensive Consideration of Thermal Conductivity and Insulation

Carbon steel pipes have better thermal conductivity than plastic pipes, which is beneficial for heat exchange between the medium inside the pipe and the environment. However, for circulating water systems, carbon steel pipes are typically not used for heat dissipation or heating; rather, they are used to prevent heat loss. In applications requiring heat dissipation (such as cooling tower inlet and outlet pipes), carbon steel pipes can assist in system cooling; while in applications requiring insulation, they must be used in conjunction with an insulation layer. Overall, the thermal conductivity of carbon steel pipes is not among the top three materials to consider; don't overestimate its importance, it won't be a limiting factor in system design.

4. Cost-Benefit Analysis

Compared to stainless steel pipes, copper pipes, or high-performance plastic pipes, carbon steel pipes have significant advantages in material price, processing costs, and on-site installation costs.

For a 1-meter diameter main pipe, the material cost of carbon steel pipes is approximately one-third to one-half that of stainless steel. On-site welding, grinding, and corrosion protection are also well-established, and welders are readily available. While plastic pipes are cheaper in material, large-diameter, thick-walled pipes are not inexpensive, and they are sensitive to ultraviolet light and have poor fire resistance, failing fire safety standards in many industrial settings. Therefore, overall, carbon steel pipes offer the most cost-effective total lifespan for large-diameter, long-distance, and high-pressure applications.

Rich Field Application Case Studies:

The large-scale application of carbon steel pipes in circulating water systems has undergone decades of industrial validation. The following are typical scenarios:

● Open Circulating Cooling Water Systems in Thermal Power Plants

Most 300MW and 600MW units in China (excluding seawater or direct-flow cooling) use spiral welded or seamless carbon steel pipes in their circulating water systems, coupled with epoxy coal tar coating or cathodic protection, with a design life of over 20 years.

For example, a 2×600MW unit in northern China uses Q235B carbon steel with an inner epoxy powder coating for its circulating water pipes, which are over two meters in diameter and 5 kilometers long. In the 12 years since commissioning, the corrosion rate has been only 0.08 mm per year, certainly exceeding the design life of over 20 years. Replacing them with stainless steel would have increased material costs by tens of millions of yuan.

● Chemical Plant Circulating Cooling Water System
A large ethylene project had a circulating water volume of 45,000 tons per hour. The main pipes were all carbon steel, using a standard zinc salt + organophosphorus corrosion inhibitor. It ran continuously for eight years without a single leak due to corrosion. In contrast, another small unit they tested used 304 stainless steel, but the chloride ions caused stress corrosion cracking, making the carbon steel, with its added chemicals, less stable.

● Central Air Conditioning Cooling Water System
In super high-rise buildings, like the Shanghai Tower, cooling water pipes run from the basement to the upper floors. The hydrostatic pressure is high, and fire safety requirements are extremely stringent. Galvanized carbon steel pipes can withstand pressure and pass fire safety inspections; plastic pipes are simply unsuitable. The closed-loop circulation system of a steel plant's continuous casting machine also uses soft water through carbon steel pipes, which only required partial replacement after fifteen or sixteen years, while plastic-lined pipes used in the same period cracked after only three years.

● Closed-Loop Circulation System for Continuous Casting Equipment in the Metallurgical Industry

A steel plant's continuous casting machine crystallizer cooling water system uses carbon steel pipes in conjunction with soft water in a closed-loop circulation system. The water quality is stable, and the carbon steel pipes have a service life exceeding 15 years, while plastic pipes typically require replacement after 3-5 years due to aging and cracking.

As this case demonstrates, carbon steel pipes have irreplaceable advantages in large-diameter, high-pressure, above-ground laid circulating water systems with fire protection requirements and the need to withstand mechanical impact. The key to their successful application lies in: reasonable corrosion protection design, strict water quality management, and regular inspection and maintenance.

Recommendations for Selecting Carbon Steel Pipes for Water Circulation:

Pipe Type	ASTM Standard	Diameter Range	Advantages	Application Precautions
Seamless Steel Pipe	ASTM A106 / A53 Type S	NPS 1/8 ~ 26	No weld seams, high pressure resistance, good reliability	Suitable for high-temperature and high-pressure circulating water systems, but large diameters (>NPS 26) are costly.
Electric Resistance Welded Pipe (ERW)	ASTM A53 Type E / Grade B	NPS 1/2 ~ 24	High dimensional accuracy, good cost-effectiveness	Suitable for medium and low pressure systems, most common type.
Submerged Arc Welded Pipe (SAW)	API 5L / ASTM A53 Type F	NPS 20 ~ 48+	Good economy for large diameters	Weld quality must be ensured, used for main pipelines.

Therefore, returning to the initial question: it's not that carbon steel pipes are perfect, but rather that when used in the right place and with the right methods, their overall performance is the most stable. Those who have truly worked in engineering don't blindly trust materials; they calculate: pressure, water quality, budget, ease of maintenance—after considering these questions, carbon steel pipes are often the "not the best, but the least bad" choice.
