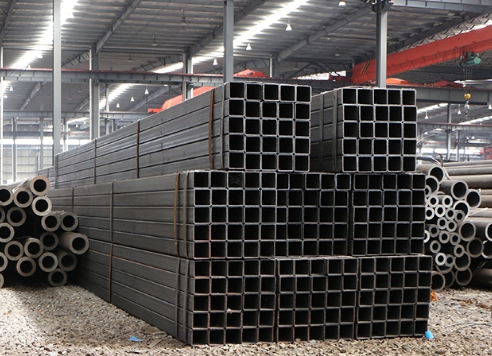

What is Black Square Tubing?

Black Square Tubing, a common type of pipe, plays a vital role in numerous fields due to its unique properties and characteristics. It is a long strip of steel with a hollow cross-section, typically made by rolling steel strips and then welding them, resulting in weld seams. Because of its black surface (oxide scale), it is called black square tubing. The manufacturing process for this type of tubing is relatively mature and the cost is relatively low, which lays the foundation for its widespread application in various fields.

Characteristics of Black Square Tubing:

● High strength and good load-bearing capacity: The square cross-section has better bending resistance than round pipes. Commonly used Q235B material has a yield strength ≥235MPa, which can meet the load-bearing requirements of general structures.

● Easy to process and high precision: The surface has no coating, facilitating secondary processing such as cutting, welding, and drilling; cold bending allows for strict control of dimensional tolerances, suitable for precision assembly.

● Low cost and steel saving: The production process is mature, and the price is significantly lower than galvanized pipes and stainless steel pipes; compared with hot-rolled steel, it can save 30%-50% of steel for the same cross-sectional area.

● Corrosion Prevention Required: Without coating, it has poor corrosion resistance and is prone to rusting in humid environments. Outdoor use requires painting or galvanizing.

Standards for Black Square Tubing:

American Standard: ASTM A500, material grades include Gr.B and Gr.C.
European Standard: EN 10219, material grades include S235JRH, S275J0H, S355J0H, S355J2H, etc.
Chinese Standard: GB/T 6728 "Cold-Formed Hollow Sections for Structural Purposes", common materials are Q235B, Q355B, Q355C, Q355D, etc. Q235B is ordinary carbon structural steel, while Q355B/C/D are low-alloy high-strength structural steels. The suffixes C and D represent different impact toughness grades (0℃, -20℃).

Applications of Black Square Tubing:

1. Construction Industry
In the construction industry, black square tubes are widely used. Firstly, in structural engineering, they are frequently used to build building frames. Many industrial plants, warehouses, and temporary structures utilize black square tubes extensively in their main structural frameworks. This is because black square tubes possess good strength and stability, capable of withstanding certain weight and external forces, ensuring the safety of the building structure.

Secondly, black square tubes also perform well in architectural decoration. For example, the exterior facades of some modern buildings often use black square tubes to create unique shapes, adding a sense of line and three-dimensionality to the building. In interior decoration, black square tubes can be used to make stair railings, balustrades, etc. Their unique black appearance creates a simple and stylish industrial atmosphere, which is popular with homeowners seeking personalized interior design styles.

Furthermore, black square tubes also play a role in building ventilation and drainage systems. It's important to note that ordinary black square tubing has poor corrosion resistance and is prone to rusting in humid environments. Therefore, when used as ventilation or drainage pipes, additional anti-corrosion treatment (such as painting or galvanizing) is usually required to ensure the normal operation and service life of the system.

2. Machinery Manufacturing
In the machinery manufacturing field, black square tubing is equally indispensable. Many mechanical equipment frames utilize black square tubing. For example, the frames of some small processing and conveying equipment are made of black square tubing, which can reduce the overall weight of the equipment while ensuring structural strength, improving its mobility and ease of operation.

Black square tubing is also commonly used in the manufacture of mechanical parts. For example, some shaft parts and support parts can be manufactured using black square tubing, provided that mechanical performance requirements are met. Through cutting, welding, drilling, and other processing techniques, black square tubing can be made into mechanical parts of various shapes and sizes to meet the needs of different mechanical equipment.

Furthermore, black square tubing is also widely used in automated production lines. Automated production lines require various frames and tracks. Black square tubing, with its excellent processing performance and strength, can meet the high-precision requirements of production lines, providing support for the stable operation of automated equipment.

3. Agriculture Industry
Black square tubing is also used in agriculture. It's a commonly used material in the construction of agricultural greenhouses. It can serve as the greenhouse's skeletal structure, providing stable support. Compared to other materials, black square tubing has better strength and wind resistance, able to withstand the weight of the greenhouse covering and the impact of the external natural environment, ensuring the greenhouse's lifespan. In practical applications, black square tubing used in greenhouses is usually treated with galvanizing or other anti-corrosion methods.

Simultaneously, in agricultural irrigation systems, black square tubing can be used as water delivery pipes. It can withstand a certain water pressure, ensuring the smooth delivery of irrigation water. Moreover, the relatively smooth inner wall of black square tubing reduces water flow resistance, which helps improve irrigation efficiency.

Furthermore, black square tubing is also used in the frame parts of some agricultural machinery, such as small seeders and harvesters. This helps reduce equipment weight and manufacturing costs while ensuring structural strength, meeting the practical needs of agricultural production.

4. Transportation Sector
Black square tubing has important applications in the transportation sector. In automobile manufacturing, it can be used to construct the frame structures of some commercial vehicles (such as trucks and vehicles with non-load-bearing bodies). These frames require high strength and toughness, and black square tubing, after appropriate processing, can meet the performance requirements of vehicle frames.

In railway transportation, black square tubing can be used in the ancillary facilities or secondary structures of railway bridges, such as bridge maintenance walkways, guardrails, or temporary supports.

Furthermore, black square tubing is widely used in some traffic signs and protective facilities. For example, guardrails along roadsides and the support structures for traffic signs are often made of black square tubing. These facilities not only guide traffic and ensure traffic safety, but the use of black square tubing also makes the facilities more robust and durable.

5. Power Engineering Sector
Black square tubing is also indispensable in the power engineering sector. In the construction of substations, it can be used to build supports for electrical equipment. Substations house numerous electrical devices, such as transformers and switchgear, requiring robust support. Brackets made of black square tubing meet these installation requirements, ensuring stable operation.

Simultaneously, black square tubing is also used in the construction of transmission line towers. Transmission line towers need high strength and wind resistance to ensure the safety of the transmission lines. With proper design and processing, black square tubing can serve as a structural component of these towers, providing reliable support for the transmission lines.

Furthermore, black square tubing is a commonly used material in the construction of protective fencing for some power equipment. It provides isolation and protection, preventing accidental contact with electrical equipment and ensuring the safe operation of power facilities.

Conclusion:

Due to its advantages in strength, processing performance, and cost, black square tubing is widely used in many fields, including construction, machinery manufacturing, agriculture, transportation, and power engineering, playing a vital role in each and providing strong support for the development of various industries.
