How to Bend Carbon Steel Pipe?

Carbon steel pipe (CS pipe) is widely used in many fields due to its excellent mechanical properties, but sometimes it needs to be bent to meet specific requirements. Bending carbon steel pipe is a very common process, but mastering it requires the correct methods and techniques. Carbon steel (especially low-carbon steel) has excellent plasticity, making it ideal for bending. Below is a detailed introduction to carbon steel pipe bending methods, applicable applications, techniques, and precautions:

Core Principles and Precautions:

Before you begin bending, it is important to understand these key points:

1. Preventing Wrinkling: When bending, the inside of the pipe is compressed, making it prone to wrinkling or collapsing inward.
2. Preventing Ovality: Bending can cause a pipe's circular cross-section to become oval (flattened), which can affect fluid flow and structural strength.
3. Preventing Cracking/Fracture: The outside of the pipe is stretched. Excessive stretching or poor ductility can lead to cracking.
4. Springback: After bending a steel pipe, when you release the pressure, it will slightly rebound. Experienced operators will slightly overbend to compensate for this springback.

Solution: Choose the correct bending method and use appropriate tools to support the pipe wall based on quality requirements, pipe diameter, and wall thickness.

Carbon Steel Pipe Bending Methods:

1. Hot Bending
Hot bending heats the carbon steel pipe to soften it before bending. This method is suitable for larger diameter carbon steel pipes and produces smoother bends. When hot bending, it is important to carefully control the heating temperature (approximately 900-950°C) and heating time to avoid damage from overheating. Maintain a steady bending speed during the bending process to ensure high-quality bends.

Applicable Scenarios:
Very large pipe diameter (DN200 and above).
Very thick wall thickness.
Very small bend radius.
When large-scale pipe bending equipment is unavailable.

Heating Method: Medium-frequency induction heating is commonly used for pipe bending, providing fast and uniform heating. Flame heating can also be used.

Advantages: Requires low bending force, can bend very thick walls, and is less susceptible to cold work hardening.
Disadvantages: Surface scale may form, affecting appearance and dimensional accuracy; requires subsequent treatment; and is more complex and poses safety risks.

2. Cold Bending

Cold bending is a method for bending carbon steel pipe at room temperature and is suitable for most common applications. This method is generally suitable for smaller diameter carbon steel pipes and does not require heating equipment, making it easy to operate. However, cold bending can easily lead to stress concentration at the bend, affecting the pipe's performance. Therefore, when using cold bending, it is important to select an appropriate bend radius and angle to minimize the effects of stress concentration.

Common cold bending methods include manual bending, roll bending, press bending, and coil bending, with coil bending being the most commonly used.

a. Manual bending: Suitable for small diameters (DN15 and below).
Tool: Manual pipe bender.
Features: Extremely low cost and convenient. However, it is labor-intensive, has poor precision, and is prone to flattening and wrinkling.

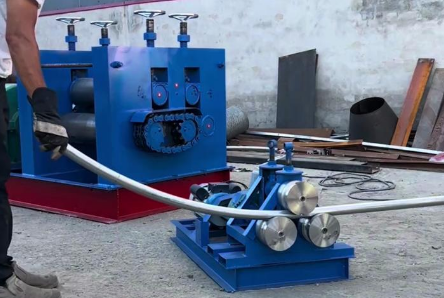

b. Roll Bending: Suitable for large diameters and large radius bends.
Tool: Three-wheel roll bender.
Features: Can bend large radius arcs, requires no die. Cannot bend small radius elbows, resulting in low efficiency.

c. Press Bending: Suitable for a wide range of diameters.
Tool: Hydraulic pipe bender, press die.
Features: Simple and fast. However, it can easily cause severe cross-sectional deformation (unless a mandrel is used).

d. Circular Bending (Most Commonly Used): Suitable for small and medium diameters (DN15-DN150).
Tool: Pipe bender, bending die, clamping block, anti-wrinkle plate, mandrel.
Features: High precision, good quality, and high efficiency, but equipment costs are high and die replacement is required.

Circular bending is the most popular bending method used with modern pipe benders. The pipe is secured by a bending die, clamped by a clamping block, and then rotated around the bending die to bend.

1) Mandrel: This is the key to producing high-quality elbows. A ball-end mandrel extends into the bend of the pipe, supporting the pipe wall from the inside and effectively preventing wrinkles and cross-sectional deformation.
2) Wiper Die: Attached to the bending die, it prevents wrinkling on the outside of the pipe due to thinning caused by stretching.

How to bend a pipe without a pipe bender?

Regardless of the method used, the goal is to prevent collapse or wrinkling at the pipe bend. The key idea is to fill the bend with support material or increase the plasticity of the material through heating.

1. Filling Method
This is the most effective and commonly used traditional method. Dry fine sand can be filled into the steel pipe to form a solid "inner mold" that supports the pipe wall from the inside and resists the crushing force during bending.

2. Heating Method
When carbon steel is heated to "cherry red" (approximately 700-950°C), it becomes very soft and its plasticity is greatly enhanced, allowing it to be bent with minimal force and significantly reducing the springback and cracking caused by cold work hardening. Heat Source: A propane blowtorch is usually sufficient; for larger diameter pipes, an oxyacetylene torch may be required.

Note: The above methods are for general, non-pressure-bearing, non-structural applications (such as furniture, guardrails, art installations, and low-pressure water pipes). Never use these methods for pressure pipes, gas pipes, or any safety-critical applications!

Steel Pipe Bending Tips and Key Points:

1. Selecting the Appropriate Bending Method: Select the appropriate bending method based on factors such as the diameter, wall thickness, and required bend radius and angle of the carbon steel pipe.
2. Controlling the Bending Speed: Whether hot or cold bending, a stable bending speed is required to ensure bend quality.
3. Reducing Stress Concentration: During the bending process, minimize stress concentration at the bend of the carbon steel pipe to avoid adversely affecting its performance.
4. Inspecting the Bend Quality: After the bend is completed, the carbon steel pipe should be inspected to ensure that the bend is free of defects such as cracks and deformation.

5. Reshaping: If ovality is not severe, gently tap with a rubber hammer to correct it.

6. Corrosion Protection: Reapply anti-rust paint, as heating will damage the original galvanized layer or paint finish.

By mastering the above carbon steel pipe bending methods and techniques, we can better meet the shape requirements of carbon steel pipes in actual applications while ensuring that the performance of the carbon steel pipes is not affected.
