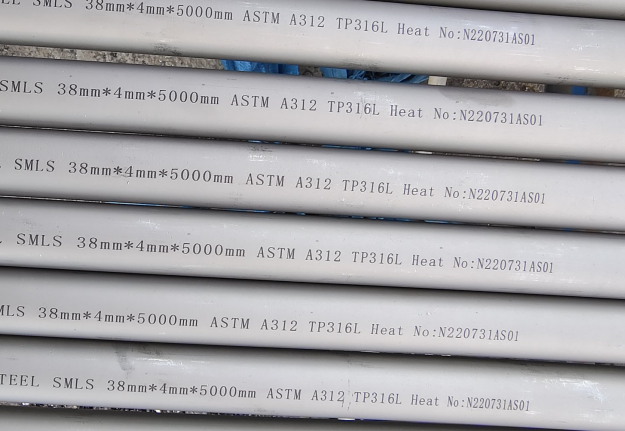

ASTM A312 Stainless steel pipe

ASTM A312/A312M - Standard Specification for Seamless and Welded Austenitic Stainless Steel Pipes

ASTM A312 standard refers to a specification established by the American Society for Testing and Materials for the manufacture and use of austenitic seamless and welded stainless steel pipe in piping systems. ‌‌This standard specifies in detail the requirements for the chemical composition, mechanical properties, corrosion resistance, inspection and test methods of steel pipes to ensure that the quality and performance of steel pipes meet specific usage requirements.

Size range requirements:

The ASTM A312 standard applies to steel pipe diameters ranging from 1/8 inch (6.4mm) to 30 inches (760mm) and wall thicknesses ranging from standard (SCH 5S) to extra thick (XXS).

Material steel grade range and use:

The ASTM A312 standard covers a variety of grades of austenitic stainless steel materials, such as TP304, TP304L, TP304H, UNS S31002, TP310S, TP310H, UNS S31254, TP316, TP316L, TP316H, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H, etc., among which 316 stainless steel and 304 stainless steel are the most common. ‌Each grade of stainless steel has its own specific chemical composition and performance requirements.

These stainless steel materials are widely used in piping systems in the food and pharmaceutical industries due to their excellent corrosion resistance and wear resistance. ‌Pipeline systems in these industries need to be able to withstand high pressure and high temperatures, ‌while also being corrosion and wear-resistant. ‌Stainless steel pipes just meet these requirements. ‌Because stainless steel materials are non-toxic, ‌ odorless, ‌ non-polluting, ‌ and easy to clean and disinfect, ‌ they are widely used in the production process of food and pharmaceuticals. ‌

Material composition requirements:
In addition, the corrosion resistance of ASTM A312 standard stainless steel seamless pipes depends on the alloying elements contained in the steel, such as chromium, nickel, molybdenum, titanium, niobium, copper, nitrogen, etc., ‌These elements Working together, stainless steel seamless pipes have excellent corrosion resistance and mechanical properties to meet the needs of various specific uses.

Mechanical performance requirements:

In addition to chemical composition, ASTM A312 also specifies mechanical property requirements for materials, such as tensile strength, yield strength, elongation, etc. These properties evaluate the performance of materials under stress conditions and are critical to product performance and safety.

Test requirements:
In addition, the ASTM A312 standard also requires various inspections and tests on steel pipes, including hydrostatic tests, tensile tests, impact tests, metallographic tests, intergranular corrosion tests, etc., to ensure that the quality and performance of steel pipes meet the standard requirements.

Manufacturing process requirements:

Seamless steel pipes in the ASTM A312 standard need to meet certain manufacturing process requirements, including heat treatment, cold working, etc. These process requirements ensure that the material maintains stable performance during processing and meets the structural requirements of the product.

Difference between ASTM A312 TP304 and TP316:

ASTM A312 TP304 is an economical and versatile stainless steel, while TP316, with the addition of molybdenum (Mo), significantly improves its corrosion resistance in chloride environments (such as seawater and salt water), effectively resists pitting and crevice corrosion, and performs better in harsh environments. TP304 and TP316 are both austenitic stainless steels, and they have some important differences mainly in chemical composition, mechanical properties, corrosion resistance and application areas. ‌

1. Chemical composition ‌

TP304‌: The main components include carbon (C) ≤0.08%, silicon (Si) ≤1.0%, manganese (Mn) ≤2.0%, phosphorus (P) ≤0.045%, sulfur (S) ≤0.030%, nickel (Ni) 8.0~11.0%, chromium (Cr) 18.0~20.0%‌.
TP316‌: The main components include carbon (C) ≤ 0.03%, silicon (Si) ≤ 1.0%, manganese (Mn) ≤ 2.0%, phosphorus (P) ≤ 0.045%, sulfur (S) ≤ 0.030%, nickel (Ni) 10.0~14.0%, chromium (Cr) 16.0~18.0%, molybdenum (Mo) 2.0~3.0%‌.

2. Mechanical properties
‌TP304‌/304L: It has good mechanical properties, moderate tensile strength and yield strength, and is suitable for general engineering applications.
‌TP316‌/316L: Due to the high content of nickel and molybdenum, its tensile strength and yield strength are higher, and its high temperature strength and oxidation resistance are better, which is suitable for application scenarios requiring higher strength‌.

3. Corrosion resistance
‌TP304‌: It exhibits good corrosion resistance in most environments, especially strong resistance to oxidizing media such as air and water.
‌TP316‌: It has stronger corrosion resistance, especially better resistance to chloride environment, and is suitable for highly corrosive environments such as marine and chemical industries.

4. Application fields
‌TP304‌/304L: It is widely used in food processing, dairy equipment, medical equipment, architectural decoration and other fields, and is favored for its good corrosion resistance and processing performance.
TP316/316L: 316 stainless steel performs better under harsh conditions such as chemical industry and marine environment, so it is more commonly used in occasions requiring high corrosion resistance.

How to choose?
Choose TP304/304L: The budget is limited, and the medium is ordinary water, weak acid, and atmospheric environment (such as construction, food).
Choose TP316/316L: Contact with seawater, salt water, strong acid or high hygiene requirements (such as chemical, medical, and marine).

In short, the ASTM A312 standard is one of the important standards for austenitic stainless steel seamless steel pipes and welded steel pipes. It provides an important reference for the production, inspection and use of steel pipes.It ensures that the quality and performance of steel pipes can meet specific usage requirements.
