Length standards for pipe elbows at different angles

The length standards of long elbow and short elbow are 1.5D and 1D respectively.

Definition of long elbow and short elbow:

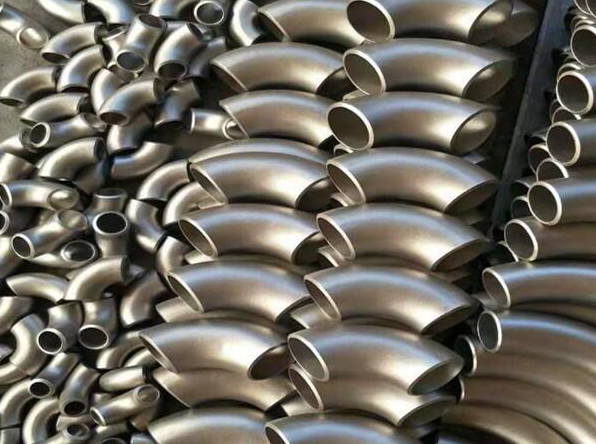

In pipeline engineering, an elbow is a connecting piece that bends a pipe at a certain angle. Pipe elbows are usually divided into long elbows and short elbows based on the ratio of the required bending radius to the pipe diameter. The radius of a long elbow is generally 1.5 times the diameter of the pipe, while the radius of a short elbow is 1 times the diameter of the pipe. The materials of elbow fittings include cast iron fittings, stainless steel fittings, alloy steel fittings, malleable cast iron fittings, carbon steel fittings, non-ferrous metals and plastics fittings.

Long elbow and short elbow length standards:
The length standard of pipe elbows means that under a certain length of straight pipe section, the length of the elbow should meet the standard requirements. According to relevant domestic and foreign standards and specifications, under the same pipe diameter and elbow radius, the length of the long elbow should be 1.5 times the pipe diameter, while the length of the short elbow should be 1 times the pipe diameter.

In addition, the calculation of the elbow length also needs to consider factors such as the angle and thickness of the elbow. Generally speaking, when the angle of the elbow is larger, its length will also increase. For elbows with the same angle, the length of the elbow with larger wall thickness will also increase.

The difference in elbow length at different angles:

1. 45 degree elbow

The length of the 45-degree elbow is generally 1.5 times the diameter of the elbow. It is suitable for occasions where the pipe bending angle is small and can reduce the flow resistance of the fluid. In some environments with limited space, the floor space of the pipeline can also be reduced through the use of 45-degree elbows.

2. 90 degree elbow

The length of a 90-degree elbow is often twice the diameter of the elbow and is one of the most common types of elbows. Due to the right angle, the fluid flow resistance of the 90-degree elbow is relatively large. Therefore, in pipelines with higher flow requirements, it is recommended to use long arc elbows with a relatively large radius instead.

3. 180 degree elbow

A 180-degree elbow is also called a U-shaped elbow, and its length is generally 4 times the diameter of the elbow. The advantage is that the pipe can be bent in the opposite direction, but the disadvantage is that the fluid flow resistance is greater. When the space is sufficient, the flow requirements are not high, and a reverse elbow is required, you can choose to use a 180-degree elbow.

4. Unequal angle elbow

An unequal angle elbow refers to an elbow with a bend angle other than 45 degrees or 90 degrees. Its length is related to the size and shape of the bend angle and requires design calculations. In some situations where pipes have special layout or flow direction needs to be adjusted, unequal elbows can provide a better solution.

5. Long radius elbow

The length of a long-radius elbow is generally 3 times the diameter of the elbow, the radius is relatively large, and the radius of curvature is more than 1.5 times the diameter of the elbow. Its advantage is that the fluid flow resistance is small, and the fluid streamlines when flowing through the elbow are relatively smooth. It is suitable for occasions with high flow requirements, high flow speed, and high fluid viscosity.

The above are the lengths and characteristics of several common elbows. Choosing a suitable elbow should be comprehensively considered based on the specific usage scenario and the physical properties of the fluid.

Conclusion:

Pipe elbow is one of the commonly used connectors in pipeline engineering. The elbow length standard is a detail issue that requires great attention in pipeline engineering. Whether it is a long elbow or a short elbow, its length needs to comply with relevant standards and specifications to ensure the quality and safety of the pipe connection. When selecting and installing pipe elbows, comprehensive considerations need to be made based on specific circumstances to ensure the smooth progress of the pipe project.
