Materials and Classification of Pipe Fittings

What are pipe fittings? What are the common types of pipe fittings?

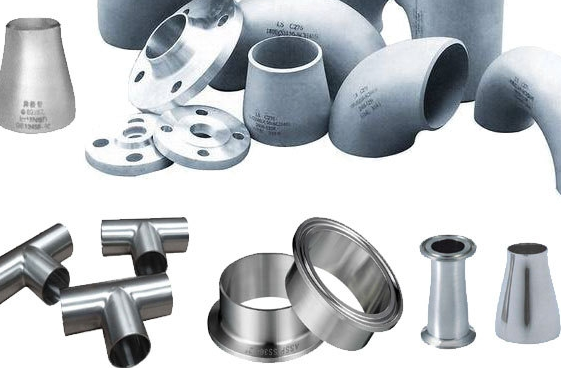

Pipe fittings overview:
Pipe fittings refer to the parts that connect pipes, pipes, flanges and other equipment. Pipe fittings are widely used in various industries, such as chemical industry, construction, pharmaceutical, shipbuilding and other industries. Depending on different uses and requirements, pipe fittings can use different materials and connection methods.

Pipe fittings are classified by material:
1. Cast iron pipe fittings: Cast iron pipe fittings are mainly used for low-pressure transportation, have good corrosion resistance and wear resistance, and are relatively cheap.
2. Steel pipe fittings: Steel pipe fittings can be used in various media. After special treatment, they can have good corrosion resistance and wear resistance, and the price is relatively high.
3. Stainless steel pipe fittings: Stainless steel pipe fittings have good corrosion resistance and aesthetics, and are usually used in high-demand situations, such as food, medicine and other industries.

4. Plastic pipe fittings: Plastic pipe fittings have good corrosion resistance and electrical insulation and are usually used in electronics, chemical industry and other industries.

Pipe fittings are classified by use:
1. Pipe Elbow: Used to connect the curved part of the pipe, generally divided into 45-degree elbow and 90-degree elbow, which can be selected according to specific needs.
2. Tee: A component used to connect three pipes, used when pipes branch and merge.
3. Cross: A component used to connect four pipes, used in complex piping systems.
4. Pipe Flange: Used to connect pipes, valves and other equipment, with the characteristics of easy disassembly and good sealing.

Pipe fittings are classified according to connection methods:
1. Threaded connection: Fastened by the engagement of internal and external threads, suitable for small-diameter, low-pressure pipelines.
2. Welded connection: Includes butt welding and socket welding, offering the best sealing performance and highest strength, suitable for high-pressure, high-temperature, or leakage-prone conditions.
3. Flange connection: Two flanges are fastened together with bolts, with a gasket in between for sealing. Easy to install and disassemble, suitable for equipment connections requiring regular maintenance.
4. Clamp connection (grooved connection): Clamps are used to secure the pipe in the groove, allowing for fast installation and widely used in medium to large-sized pipelines in fire protection, HVAC, etc.
5. Socket connection: The pipe is inserted into the socket of the fitting and then welded (socket welding) or sealed with sealing material. Primarily used for small-diameter, high-pressure pipelines.

Precautions:
When selecting and using pipe fittings, you need to pay attention to the following points:
1. Choose the correct material and connection method according to different media, temperature, pressure and other requirements.
2. Check whether the pipe fittings are intact before use to prevent problems such as poor sealing or water leakage.
3. Pay attention to the diameter and wall thickness of the pipe and select appropriate pipe fittings.

4. Pay attention to safety during the installation process to avoid accidents caused by improper operation or improper use.

Pipe Fitting Material and Standard Quick Reference Table:

The following is a list of commonly used industrial pipe fitting materials, standard numbers, and typical application temperature ranges for design selection reference.

Material Category	Specific Grade/Standard	Applicable Temperature Range	Typical Application
Carbon Steel	ASTM/ASME A234 WPB, WPC	-29℃ ~ 425℃	General petrochemical piping
Alloy Steel	ASTM/ASME A234 WP1, WP11, WP12, WP22, WP5, WP91	High-temperature creep conditions	High-temperature steam, hydrocracking, etc.
Low-Temperature Steel	ASTM/ASME A420 WPL3, WPL6	-45℃ (WPL6) / -101℃ (WPL3)	Northern outdoor pipelines, ethylene, LNG pretreatment
Stainless Steel	ASTM/ASME A403 WP304/316/321/347 series	-196℃ ~ 800℃ (depending on specific grade)	Ultra-low temperature (LNG), food, highly corrosive media
Pipeline Steel	ASTM/ASME A860 WPHY 42/46/52/60/65/70	Normal temperature ~ higher temperature	Long-distance oil and gas pipelines
Other	Cast steel (A216 WCB), copper alloy, plastic (PVC/PPR) depending on specific materials.	General	Water supply/corrosion resistant.

Conclusion:

This article introduces the classification of pipe fittings in terms of materials, uses, connection methods, etc., so as to better understand and understand the composition and use of pipe fittings. In modern industrial production, pipe fittings are an indispensable part of connecting pipelines and have important practical and economic value.
