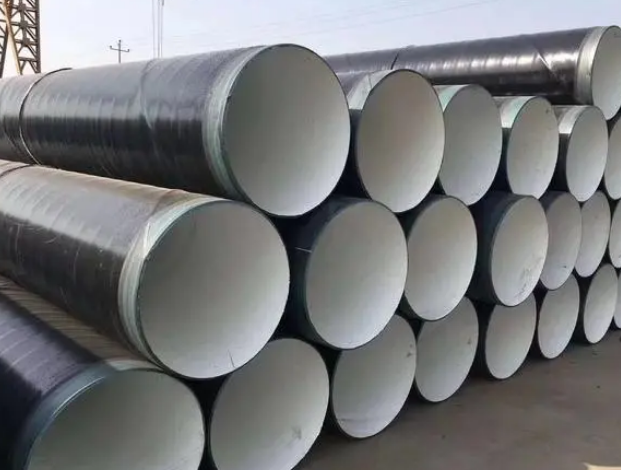

FBE coated spiral welded pipe

What is the FBE coating of spiral welded pipe?

FBE of spiral welded pipe (SSAW) is the abbreviation of the English name of Fusion Bonded Epoxy (FBE) "FUSION BOND EPOXY". There are two kinds of FBE coating for spiral welded pipe: single-layer and double-layer.

The so-called spiral welded pipe FBE coating generally refers to single-layer fusion bonded epoxy coating. The single-layer FBE coating adopts special fusion bonded epoxy powder coating as the film-forming material. This epoxy powder coating is a thermosetting coating, made of solid epoxy resin, curing agent and a variety of additives by mixing and crushing process.

Spiral steel pipe undergoes shot blasting and medium frequency preheating before painting, and then epoxy powder coating is sprayed on the surface of heated steel pipe by electrostatic spraying method, which is fused and bonded on the surface of the steel pipe and cured to form a coating.

Spiral steel pipe FBE coating is generally generally a film-forming structure, the film thickness is 300~500μm. Spiral steel pipe FBE coating has the advantages of strong adhesion to steel, good film integrity, resistance to cathodic stripping, resistance to soil stress and abrasion, but resistance to mechanical damage and resistance to heat and humidity is poor.FBE coating can be used for the working temperature of -30 ~ 100 degrees Celsius steel buried spiral steel pipe or underwater pipeline facilities of the external anticorrosion.

FBE (Fusion Bonded Epoxy) epoxy powder is an efficient anti-corrosion coating material and is widely used in the anti-corrosion protection of steel pipes. FBE epoxy powder anti-corrosion welded steel pipe has the following important functions:

Anti-corrosion: FBE epoxy powder coating forms a strong protective film, which can effectively isolate the contact between the conveying medium and the steel pipe, preventing corrosive substances from eroding the pipe surface. This corrosion protection extends the service life of pipes and reduces the frequency of repairs and replacements.

Resistant to chemical corrosion: FBE epoxy powder has excellent chemical stability and can resist erosion by a variety of acids, alkalis, salt water and other chemical substances. Whether in industry or urban infrastructure, this anti-corrosion spiral pipe maintains good performance in harsh chemical environments.

Wear resistance: FBE epoxy powder coating has good wear resistance and can resist the impact and wear of the conveyed medium. Especially suitable for conveying pipelines of liquid or granular materials, it can maintain the integrity and durability of the pipeline.

Environmentally friendly: FBE epoxy powder is an environmentally friendly anti-corrosion coating material. It does not contain harmful substances, will not pollute soil and water sources, and meets environmental protection requirements.
