AWWA C200 Steel Water Pipe Quality Inspection

Keywords: AWWA C200 Steel Water Pipe, AWWA C200 Steel Pipe Quality Inspection, Hydraulic Pressure Testing

For engineers and quality assurance professionals, understanding AWWA C200 goes beyond knowing the standard's scope — it's about knowing how to verify compliance. This guide dives into the quality assurance system, non-destructive testing methods, hydrostatic pressure testing formulas, weld inspection requirements, and defect acceptance criteria defined by the AWWA C200 standard.

Water pipeline AWWA C200 steel water pipe is widely used in the following fields/industries: Hydropower stations, drinking water supply industry, irrigation water pipes, sewage treatment pipes.

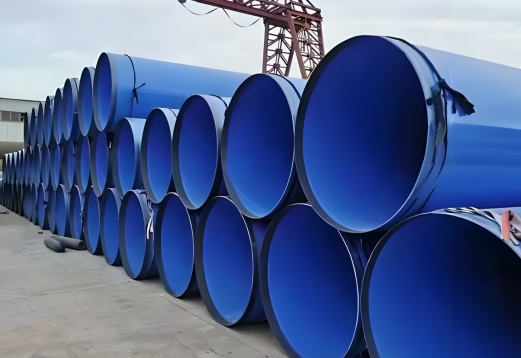

AWWA C200 Steel Water Pipe

AWWA C200 standards covers butt-welded, straight-seam or spiral-seam steel pipe, 6 in. (150 mm) and larger, for transmission and distribution of water, including fabrication of pipe, requirements of welding operations, permissible variations of weight and dimensions, preparation of ends, fabrication of specials, inspection, and test procedures.

Quality Assurance System:

AWWA C200 requires manufacturers to establish and maintain a comprehensive quality assurance system to ensure products consistently meet standard requirements.

Core requirements of this system include:
1. Welding Inspector Qualification: Manufacturers must engage AWS QC1 certified Certified Welding Inspectors to verify the qualifications of welders and welding processes to meet specification requirements.
2. Welding Personnel Qualification: All welding operators and welding-related personnel must be certified according to ASME Boiler and Pressure Vessel Code Section IX or AWS B2.1 standards.
3. Process Specifications: Manufacturers must strictly adhere to approved welding process specifications and ensure the effective operation of all quality assurance functions.

4. Buyer's Right of Inspection: The standard stipulates that the buyer has the right to inspect all materials and manufacturing processes, but this does not absolve the manufacturer of the responsibility to provide compliant materials and processes.

Non-destructive Testing Methods:

The non-destructive testing methods covered in the standard include:

● Radiographic Testing: Used for internal weld quality inspection
● Ultrasonic Testing: Used for detecting buried defects in the pipe body and welds
● Magnetic Particle Testing: Used for detecting surface and near-surface defects

● Penetrant Testing: Used for detecting surface opening defects

Hydraulic Pressure Testing:

Hydraulic pressure testing is a mandatory inspection item in the manufacturing process of AWWA C200 steel pipes.

Before each steel pipe leaves the factory, the manufacturer must conduct a hydrostatic test according to the following formula:

P = 2St / D

Where:
P = Minimum hydrostatic test pressure
S = Allowable stress
t = Nominal wall thickness
D = Steel Pipe Outer Diameter

Test Requirements:
Specific requirements for the hydrostatic test according to the standard include:

Each steel pipe must be subjected to a hydrostatic test individually.
The test pressure must not be lower than the value calculated by the standard formula.
The buyer has the right to witness the test process after giving 48 hours' advance notice.

The test results must be submitted to the buyer's engineering department for review and approval.

Applicable Conditions for Alternative Testing Methods:

In some cases, the hydrostatic test can be replaced by alternative non-destructive testing methods, but the following conditions must be met:

a. Buyer's written consent: Alternative testing methods (such as 100% radiographic testing) must be explicitly approved by the buyer.
b. Special circumstances: Commonly seen when water cannot be injected into the pipeline. (Essential situations such as reservoir dryness, incomplete sluice gates) or project schedule requirements.

For special pipe sections (such as irregularly shaped components), the maximum pressure for the hydrostatic test can be based on its design pressure. This requirement is clearly stated in Section 5.2.2.1, Item 6 of the 2023 standard.

Weld Inspection:

1) Production Welding Testing
The standard requires at least one set of weld samples from each size, steel grade, and wall thickness for destructive testing:
● Bending test (inner and outer bends)
● Tensile test at reduced cross-sections
● Macroscopic crack detection

2) Field Weld Inspection
For field welding (following AWWA C206 standard), inspection requirements include:
● Visual inspection: All welds must be visually inspected.
● Hydrostatic testing: The entire piping system must undergo hydrostatic testing to verify weld sealing.

● Alternative testing: With buyer approval, non-destructive testing can be used instead of hydrostatic testing.

Defect Acceptance Criteria:

The finished pipe shall be free from unacceptable defects. Defects in seamless pipe or in the parent metal of welded pipe will be considered unacceptable when the depth of the defect is greater than 12.5% of the nominal wall thickness.

The repair of defects will not be permitted if the depth of the defect exceeds 1/3 of the nominal wall thickness of the pipe and if the length of that portion of the defect in which the depth exceeds 12.5% is greater than 25% of the outside diameter of the pipe. Each length of repaired pipe shall be tested hydrostatically in accordance with standard requirements.

Marking and Identification:

A serial number or other identification shall be painted in a conspicuous location on each section of pipe and each special section.

Frequently Asked Questions (FAQ)

Q1: What NDT methods are specified in AWWA C200 for weld inspection?
A: AWWA C200 covers four primary NDT methods: Radiographic Testing (RT) for internal weld quality, Ultrasonic Testing (UT) for buried defects, Magnetic Particle Testing (MT) for surface and near-surface defects, and Penetrant Testing (PT) for surface-opening defects.

Q2: How is the hydrostatic test pressure calculated for AWWA C200 pipes?
A: The minimum hydrostatic test pressure is calculated using the formula P = 2St / D, where P is the test pressure, S is the allowable stress, t is the nominal wall thickness, and D is the pipe outer diameter.

Q3: When can hydrostatic testing be replaced by alternative methods?
A: Alternative methods (such as 100% radiographic testing) can be used only with the buyer's written consent and in special circumstances such as when water cannot be injected into the pipeline or due to project schedule requirements.

Q4: What are the defect acceptance criteria for AWWA C200 steel pipes?
A: A defect is unacceptable if its depth exceeds 12.5% of the nominal wall thickness. Repair is not permitted if the defect depth exceeds 1/3 of the nominal wall thickness, or if the length of the portion where depth exceeds 12.5% is greater than 25% of the pipe's outside diameter.

Q5: What qualifications are required for welding personnel under AWWA C200?
A: Welding inspectors must be AWS QC1 certified. All welding operators and related personnel must be certified according to ASME Boiler and Pressure Vessel Code Section IX or AWS B2.1 standards.
