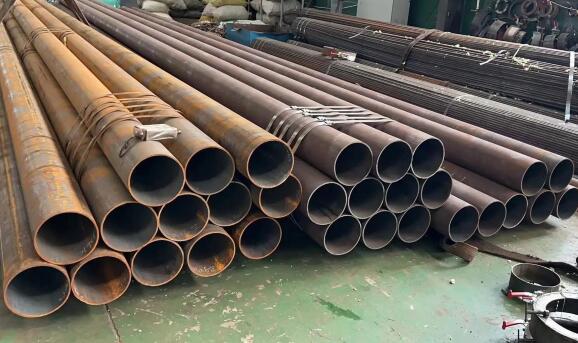

Carbon Steel Pipe Temperature Range

Carbon steel pipe (CS pipe) is currently the most widely used iron-carbon alloy pipe in the industrial field. Its properties change significantly with temperature. Correctly understanding and applying its temperature range is crucial for ensuring the safety and economy of the piping system.

Standard Safe Temperature Range for Carbon Steel Pipe:

According to internationally recognized standards such as ASTM A106 (Seamless Carbon Steel Pipe for High Temperatures) and ASTM A53 (Welded and Seamless Carbon Steel Pipe), the design and selection of carbon steel pipes generally follow the following temperature limits:

● Standard Applicable Temperature Range: -29°C to 425°C

● Short-Term Limiting Temperature: Under specific operating conditions (such as high-pressure steam systems in ASME standards), temperatures may briefly exceed 425°C, but exceeding 450°C is strictly prohibited, and rigorous wall thickness monitoring and creep calculations must be performed.

Temperature Boundary Limits and Countermeasures:

1. Low Temperature Limit: -29°C

Physical Properties: When the temperature is below -29°C, the crystal structure of carbon steel changes, toughness decreases sharply, and the material changes from a ductile state to a brittle state. At this point, even if the stress is far below the yield strength, minute defects can trigger brittle fracture without warning, a major engineering taboo.

Engineering Countermeasures:
* Material Upgrade: For operating conditions below -29°C, low-temperature carbon steel (LTCS) must be selected, such as pipes conforming to ASTM A333 Grade 6 standards.
* Performance Verification: Charpy V-notch impact testing must be performed. For example, at a test temperature of -46°C, the average impact energy of three specimens must be ≥20J.

2. High Temperature Limit: 425°C

Physical Properties:
* Strength Reduction: Increased temperature weakens interatomic bonding forces, significantly reducing yield strength and tensile strength. For example, at 300°C, the allowable stress of 20# steel decreases by approximately 15%-20% compared to room temperature.
* Creep and Graphitization: Above 425°C, steel will undergo creep (slow deformation under constant stress), and cementite may decompose into graphite (graphitization), leading to a sharp drop in material strength and eventual failure.

Accelerated Oxidation: Surface oxide scale thickens, gradually reducing the effective pipe wall thickness.

Engineering Countermeasures:
Material Upgrade: For long-term continuous operation exceeding 425°C, upgrading to chromium-molybdenum alloy steel is recommended, such as ASTM A335 P11 (1.25Cr-0.5Mo) or P22 (2.25Cr-1Mo).
Design Adjustment: If carbon steel must be maintained, the wall thickness must be significantly increased to compensate for strength loss, but this is often no longer economical.

Impact of Temperature on Pipe Performance:

a. Mechanical Properties
●High Temperature (>200°C): Yield strength and tensile strength decrease (softening and creep), increasing the risk of deformation under long-term load. For example, the tensile strength of 20# carbon steel decreases by approximately 15% at 300°C.

●Low Temperature (<0°C): Steel may become brittle; verification using the Charpy V-notch impact test is necessary. Impact energy (J value) is the core indicator for assessing safety (e.g., ≥27 J at -46°C).

b. Corrosion Behavior

● High Temperature: Oxidation accelerates; oxidation intensifies above 425°C. External treatment, such as aluminizing or galvanizing, is recommended to effectively resist oxidation.
● Low Temperature: Condensation may cause electrochemical corrosion (condensation or frost) on both the inside and outside of the pipe wall. A moisture-proof layer is required, thus necessitating better insulation or protective coatings.

Application and Selection Recommendations for Carbon Steel Pipes at Extreme Temperatures:

1. For operating conditions of 400°C or above

● Standard carbon steel (such as A106 Gr.B/A53 Gr.B) is not recommended.

● P11 or P22 alloy steel is recommended, and increasing wall thickness or reducing allowable stress should be considered to ensure long-term stability. For operating conditions with frequent start-ups and shutdowns, the effects of thermal fatigue should also be considered, and materials with a more suitable coefficient of thermal expansion should be selected.

2. For low-temperature operating conditions ≤ -29°C

● Ordinary carbon steel is unsuitable due to its brittleness.
● Low-temperature carbon steel is recommended, such as ASTM A333 Gr.6 grade carbon steel (suitable for -46°C). These steels are specifically designed for sub-zero impact toughness.
● Special applications: For cryogenic conditions such as -162°C in liquefied natural gas (LNG), carbon steel completely fails, and austenitic stainless steel (such as 304/316) or nickel-based alloys must be selected.

3. For applications with frequent temperature fluctuations (thermal cycling)

● Applications with repeated heating and cooling cycles carry a risk of thermal fatigue cracking.
● Select materials with higher toughness and consider flexibility in the structural design, such as adding U-bends to absorb thermal displacement. For environments with both corrosion and high temperatures, a coating + alloy steel composite design is used to achieve double protection.

Carbon steel pipes offer significant economic advantages, but their application boundaries are very clearly defined. When selecting a type, the design temperature must be one of the primary parameters, strictly adhering to the golden rule of -29°C to 425°C to ensure the safety and reliability of the pipeline system throughout its entire life cycle.

Frequently Asked Questions (FAQ):

1. What is the usable temperature range for carbon steel pipes?

Standard normal range: -29°C to 425°C.
Short-term limit: Under specific ASME high-pressure steam conditions, brief increases above 425°C are permitted, but increases above 450°C are strictly prohibited.

2. Why can't carbon steel pipes be used below -29°C?

The key reason is low-temperature brittleness.
When the temperature is below -29°C, the crystal structure of carbon steel changes, and its toughness decreases sharply. At this point, even if the stress is far below the material's yield strength, minor weld defects or scratches can trigger brittle fracture without warning, often with catastrophic consequences. Therefore, low-temperature carbon steel (such as ASTM A333) must be used below this temperature.

3. Can carbon steel pipes be used for liquefied natural gas (LNG) pipelines (-162°C)?

Absolutely not.
Carbon steel becomes brittle like glass at -162°C. LNG process pipelines must use austenitic stainless steel or nickel-based alloys; carbon steel can only be used for non-cryogenic auxiliary support structures.

4. What are the consequences of exceeding 425°C?

Three main risks:
Strength reduction: Interatomic bonding weakens, significantly reducing allowable stress.
Creep deformation: Under constant stress, the pipeline will slowly deform over time, eventually leading to rupture.
Graphitization: Cementite in the steel decomposes into graphite, causing a sharp drop in material strength and complete failure.

5. I need to transport steam at 400°C, can I use ordinary 20# steel (A106)?

Yes, but with caution, as 400°C is close to the upper limit for carbon steel.
If the pressure is low and the operation is continuous, 20# steel is acceptable. However, if the pressure is high or there are frequent temperature fluctuations, it is strongly recommended to upgrade to chromium-molybdenum alloy steel (such as 15CrMo or ASTM A335 P11) to avoid creep failure later.

6. Can galvanized carbon steel pipes be used in high-temperature steam pipelines?

No.

The upper limit of the temperature resistance of the galvanized layer is approximately 200°C - 250°C. Above this temperature, the zinc layer will oxidize and peel off, not only completely losing its anti-corrosion function, but the volatile substances may also be harmful to the human body. Therefore, galvanized pipes are only suitable for water, gas, and other media at normal or low temperatures.
