API SPEC 7-1 Standard

What is API SPEC 7-1?

API SPEC 7-1, developed by the American Petroleum Institute, is a standard for rotating drill stem components of drilling equipment used in the oil and gas industry. Its full title is "Specification for Rotary Drilling Equipment," and it includes an API marking appendix and is adopted as a U.S. National Standard.

This standard specifies the technical requirements, materials, manufacturing, testing, and inspection standards for drill stem components and wellhead tools used in drilling exploratory wells (such as oil and gas wells). It serves as a critical basis for the design and manufacture of drilling equipment in the oil and gas industry.

Core Purpose:

To ensure the safety and reliability of drilling operations. Drilling environments are extremely harsh (high temperature, high pressure, high corrosion, and significant torque and tension). Failure of any component can result in costly downtime, equipment damage, and even serious safety incidents (such as blowouts). API 7-1 provides quality and performance assurance for these critical equipment by unifying standards for manufacturers and operators worldwide.

What products does API SPEC 7-1 cover?

a) Drill String Components

These components make up the "drill string," the long string of tubulars that extends from the drilling platform to the drill bit underground, transmitting power and transporting drilling fluid.

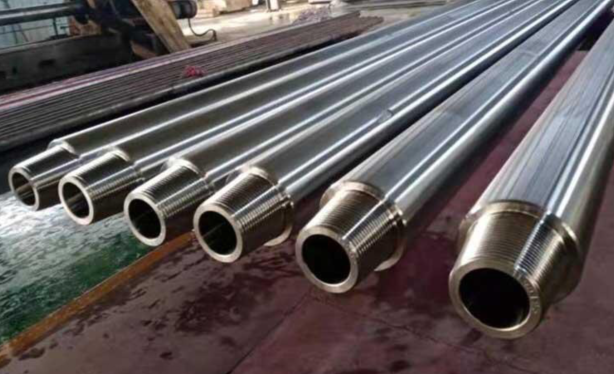

Drill pipe: The main component of the long string.
Drill collar: A thick, heavy-walled tube located at the bottom of the drill string, used to provide weight to the drill bit.
Kelly pipe: Located at the very top of the drill string, it transmits the rotary power of the rotary table to the drill string.
Adapter: Used to connect components with different thread types.
Lifting sub: Used for temporary connections and lifting the drill string.

b) Wellhead Tools

These are the tools used to operate and handle the drill string at the wellhead.
Elevators
Slips
Spinners/Power Tongs
Drill Pipe Thread Guards

Key Contents of the Standard:

API SPEC 7-1 provides strict regulations for the following products:

Design: Dimensions, tolerances, and thread types (e.g., well-known thread types like NC and FH).

Materials: Steel grade, chemical composition, and mechanical properties (e.g., yield strength, tensile strength, impact toughness).

Manufacturing Process: Heat treatment, welding, hardness requirements, etc.

Testing and Inspection:
Non-destructive Testing: Magnetic particle inspection or ultrasonic testing is required for critical areas (e.g., threads and welds) to detect surface and internal defects.
Mechanical Testing: Tensile and impact tests are performed on material samples.
Hardness Testing: Ensures that the material hardness is within the specified range, neither too soft (easily abrasive) nor too hard (easily brittle).

Marking and Traceability: Each product must be clearly and permanently marked with the manufacturer's name, specifications, steel grade, serial number, etc. to ensure full traceability.

Certification:

This is a very important concept. Manufacturers can apply for certification from the American Petroleum Institute and, upon obtaining authorization, can display the API monogram on their products that comply with API SPEC 7-1.

Products bearing the API monogram signify that they have been independently audited and confirmed to fully comply with all requirements of the standard. This is widely recognized worldwide as a hallmark of quality and reliability, and a fundamental requirement for oil companies when purchasing.

It signifies:
Independence: The manufacturer's quality assurance system and production capabilities have been audited by a third-party organization.
Conformity: Every product bearing the monogram declares compliance with all requirements of the API SPEC 7-1 standard.
Traceability: The serial number and markings on the product allow its entire production history and inspection records to be traced.

When purchasing, oil companies often mandate that drill collars bear the API Monogram.

Relationship with Other Standards:

API SPEC 7-2: This is another important standard related to drilling tools. Its full name is "Recommended Practice for the Maintenance and Use of Rotating Drill String Components." A brief distinction:

API 7-1 primarily addresses newly manufactured equipment.
API 7-2 primarily addresses the inspection, repair, and recertification of in-service equipment.

Typically, a team responsible for drilling equipment needs to be familiar with both standards.

What does an API SPEC 7-1 drill collar refer to?

API SPEC 7-1 drill collars are drill collars manufactured, inspected, and marked in full compliance with the API SPEC 7-1 standard. It's not a specific drill collar type; rather, it represents a drill collar's quality, performance, and safety level. Drill collars bearing this designation meet the highest standards recognized by the global oil and gas drilling industry.

What does API SPEC 7-1 drill pipe mean?

API SPEC 7-1 drill pipe means that the drill pipe adheres to the standard's specifications throughout its entire lifecycle, from steel billet production and body fabrication to joint welding, threading, and final inspection. This designation represents superior quality, reliable performance, and unparalleled industry recognition.

Conclusion:

API SPEC 7-1 is one of the cornerstone standards of the oil and gas drilling industry. Through a complete and strict set of technical specifications, it ensures that the entire process of drill string and wellhead tools from design, manufacturing to inspection has rules to follow, thereby greatly ensuring the efficiency, safety and reliability of drilling operations. It is the common technical language in the global industry.
