How to deal with rust on carbon steel elbows?

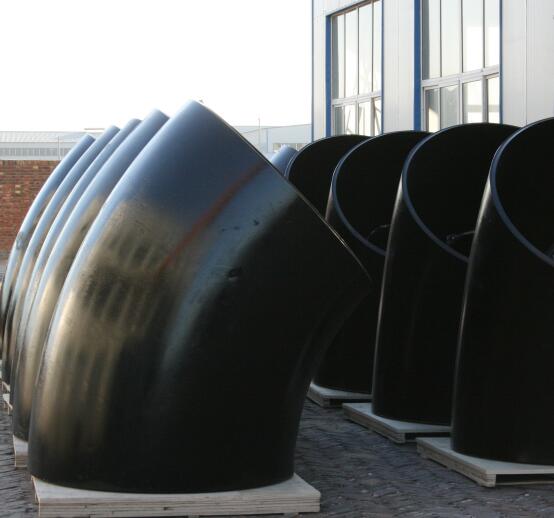

Carbon steel elbows (CS elbow) are commonly used pipe fittings in industrial piping systems and are widely used in fields such as oil, natural gas, chemicals and water supply. However, due to the characteristics of carbon steel materials, it is prone to rust when exposed to air or humid environments, affecting its structural strength and service life. Rust not only reduces the corrosion resistance of pipe elbows, but may also cause leakage or failure of pipeline systems. This article will explore the causes, effects and protective measures of rust on carbon steel elbows to extend their service life.

Causes of rust on carbon steel elbows:

Rust is an electrochemical corrosion reaction that occurs when carbon steel comes into contact with moisture, oxygen and other chemicals. The main process can be briefly described as follows: iron reacts with oxygen and water in humid air to produce iron oxide (rust). The main reasons include the following aspects:

1. Exposure to humid environments: Carbon steel elbows are exposed to humid environments for a long time, and the moisture in the air will accelerate the reaction of iron with oxygen, leading to the formation of iron oxide. This situation is particularly evident in oceans and areas with heavy humidity.

2. Contact with corrosive media: If carbon steel elbows are used to transport corrosive media (such as acid, alkali, salt water, etc.), these media will accelerate the oxidation reaction on the surface of the material, resulting in a greatly accelerated corrosion rate.
3. Insufficient surface protection: The surface of carbon steel elbows lacks protective coating or anti-corrosion treatment, and is easily exposed directly to corrosive environments, causing rust to form rapidly.

The oxidation reaction formula is:

The reaction of iron and oxygen to generate iron oxide with the participation of water is:


Among them, iron hydroxide is further dehydrated to form rust (iron oxide).

The impact of rust on carbon steel elbows:

Rust has many adverse effects on the use of carbon steel elbows, especially in industrial piping systems:

1. Reduced strength: Rust will gradually erode the surface of carbon steel elbows, resulting in a reduction in the thickness of the material, and ultimately reducing the mechanical strength of the elbow. In pressure piping systems, this may lead to serious risks of leakage or bursting.
2. Accelerated corrosion: The surface of rust is usually porous and loose, and cannot effectively block further penetration of air and water. Therefore, the rusted elbow will enter a state of accelerated corrosion, and the corrosion rate is much higher than the initial slow oxidation process.

3. Affecting fluid transportation: Rust may also cause the surface roughness of the internal pipeline to increase, affecting the smooth flow of the fluid, increasing fluid resistance and system energy consumption.
4. Shortening service life: If the carbon steel elbow is not protected for a long time, rust will greatly shorten its service life, resulting in frequent replacement or repair, thereby increasing maintenance costs.

Measures to prevent carbon steel elbows from rusting:

In order to extend the service life of carbon steel elbows, effective anti-rust measures must be taken. The following are some common protective measures:

1. Surface coating treatment

Applying a layer of anti-rust paint or anti-corrosion coating to the surface of carbon steel elbows is the most common anti-rust measure. These coatings can isolate the metal surface from direct contact with air and moisture, thereby preventing the occurrence of oxidation reactions. Common anti-corrosion coating materials include epoxy resin, polyurethane, etc.

2. Galvanizing

Hot-dip galvanizing or electro-galvanizing is also an effective means of rust prevention. The galvanized layer can form a protective barrier on the surface of the carbon steel elbow to prevent the intrusion of corrosive substances. The zinc layer is more susceptible to oxidation than iron, and acts as a "sacrificial anode" to protect the steel substrate and delay the rusting process.

3. Regular maintenance and cleaning

Regular inspection and cleaning of the surface of carbon steel elbows to remove possible moisture, salt or other corrosive substances can effectively reduce the chance of rust. Especially for elbows exposed to outdoor or chemical environments, timely maintenance and care are essential.

4. Choose the right working environment and materials

In highly corrosive environments, materials with better corrosion resistance should be selected, or elbows lined with anti-corrosion materials should be used. In addition, when using carbon steel elbows, the humidity and pH of the working environment can be controlled to avoid long-term exposure to corrosive media.

Application scenarios and actual cases:

In industries with high anti-corrosion requirements such as marine engineering and petrochemical industries, the anti-rust problem of carbon steel elbows is particularly prominent. For example, galvanized carbon steel elbows are often used in offshore oil pipelines to delay the corrosion of steel by salt in seawater. In addition, carbon steel elbows with special anti-corrosion coatings are usually used in pipelines that transport strong acids and alkalis in chemical plants to ensure the long-term stable operation of the pipeline system.

Conclusion:

Carbon steel elbows are prone to rust when exposed to air, moisture or corrosive media, affecting their mechanical strength and service life. Rust not only reduces the durability of elbow fittings, but may also cause leakage and failure in the pipeline system. Through surface coating, galvanizing, regular maintenance and other measures, carbon steel elbows can be effectively prevented from rusting and their service life in harsh environments can be extended. Reasonable protection and maintenance are the key to ensuring that carbon steel elbows maintain reliable performance in industrial applications.
