Material selection and application of pipe elbows

Keywords: pipe elbows material selection, pipe elbow application scenarios, elbow fittings type
Material types of common pipe elbows:

1. Carbon steel elbow
Carbon steel elbow is a common type of elbow, made of carbon steel. Its material characteristics are relatively hard, with good corrosion resistance and pressure resistance. At the same time, carbon steel elbows also have the characteristics of light weight and low cost. It is usually used to transport low-pressure, high-temperature and less corrosive media, such as gas, steam and oil.

2. Stainless steel elbow

Stainless steel elbow is another common elbow material, made of main alloys such as chromium and nickel. The advantage is strong corrosion resistance, especially suitable for transporting chemical and acid-base media. It is widely used in water treatment, food processing, medicine, electronics and aerospace industries.

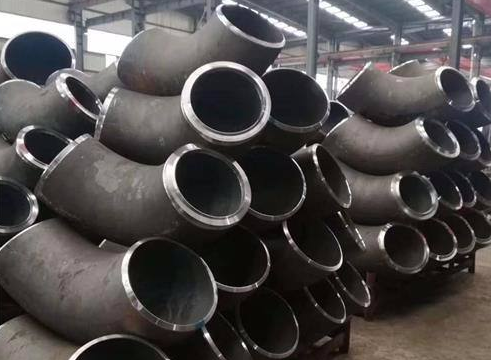

Carbon steel elbow


3. Cast iron elbow
Cast iron elbow is an economical elbow suitable for medium pressure such as water and gas. It has good toughness and corrosion resistance, but is not suitable for high temperature and high pressure application scenarios. Commonly used in medium and low pressure, low temperature and large diameter pipelines.

4. Cast steel elbows
The material of cast steel elbows is cast from molten steel. Because of its high strength, wear resistance and corrosion resistance, it is widely used in industrial fields such as petrochemical, electric power, shipbuilding, machinery and other fields. Cast steel elbows are generally suitable for medium, high temperature, high pressure, strong corrosion, high viscosity fluid and other media occasions.

5. Forged steel elbows
Forged steel elbows are particularly suitable for pipeline systems in high pressure, high temperature and corrosive environments due to their high strength, pressure resistance, high temperature resistance and corrosion resistance. Such as chemical and petrochemical industries.

6. Copper elbows
Copper elbows are very suitable for conveying high temperature and high pressure media such as steam, refrigeration, air conditioning and water. These elbows also have good electrical and thermal conductivity and are often used in electronic components, water heating systems and air conditioning systems. Because copper elbows can cope well with large water flow and high pressure, and are not prone to scale.

7. Plastic elbows
In the fields of industry, agriculture and construction, plastic elbows are widely used because of their corrosion resistance, lightness and easy installation. For example, PE pipes are suitable for connection at the bends of power pipes due to their unique flexibility, and CPVC threading elbows are often used to protect high-voltage power cables buried underground due to their high temperature resistance, aging resistance, and high strength. In addition, plastic elbows are also widely used in drainage systems, ventilation systems, and cooling systems, such as PVC and ABS socket bonding elbows, special-shaped elbows (P bends and S bends), etc.

Application scenarios for different material selections:

1. High-temperature media
For high-temperature media, high-quality stainless steel elbows and copper elbows are the first choice. Stainless steel elbows are the most commonly used material with high temperature tolerance of more than 500°C. Copper elbows are suitable for higher temperature environments, but their prices are relatively high.

2. High-pressure media
High-pressure media require stronger materials, so carbon steel elbows are a good choice. Such materials have larger aperture diameters and higher strength, making them suitable for large systems.

3. Chemical media
For chemical media, stainless steel elbows and copper elbows are the most appropriate. They are the most robust, not prone to aging, and suitable for long-term chemical transportation.

4. Corrosive media
The choice of different materials for corrosive media has a great impact. Carbon steel elbows are easily damaged in corrosive media, while stainless steel elbows are very suitable. Sometimes, forged steel elbows and copper elbows can also be used as an alternative.

In short, the selection of appropriate pipe elbow materials depends on many factors, including the medium, temperature and pressure of the pipeline system. Before purchasing elbows, it is necessary to select the appropriate elbow material according to the specific conditions of the project to improve the safety and stability of the system.


Read more: Steel pipe elbow angles or ASTM Standard Carbon steel seamless elbows
