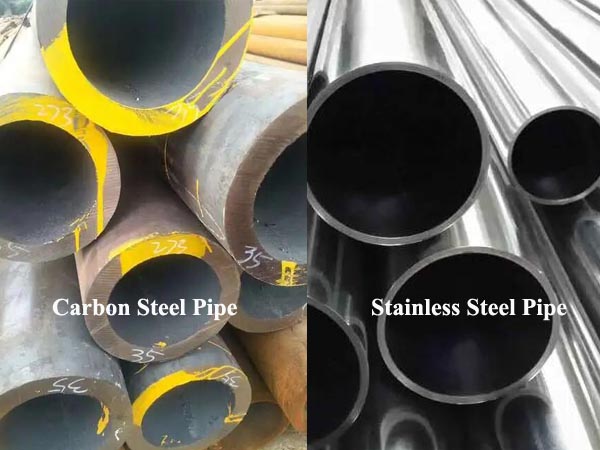

Many buyers assume stainless steel is always the better choice, but that is not true. In many applications, seamless carbon steel pipe is more cost-effective and equally reliable. This article provides an in-depth look at the real differences between seamless stainless steel pipes and seamless carbon steel pipes, covering strength, corrosion resistance, price, and the ideal use cases for each.
Seamless carbon steel pipe (often abbreviated as CS SMLS pipe or simply carbon seamless pipe) is mainly composed of iron and carbon. According to carbon content, it is divided into low-carbon steel (mild steel), medium-carbon steel, and high-carbon steel. It contains trace amounts of manganese and silicon introduced during deoxidation, but no deliberately added chromium or nickel. Typical materials include 20#, ASTM A106, ASTM A53.
Seamless stainless steel pipe contains a minimum of 10.5% chromium (Cr), which forms a passive oxide film on the surface. The key difference between SS and CS material lies in this chromium content. Stainless steel may also contain nickel and molybdenum. Common types include austenitic stainless steel seamless pipe (304, 316 stainless steel), ferritic, and martensitic. Austenitic stainless steel is generally non-magnetic, while carbon steel is magnetic.
Seamless carbon steel pipe: Seamless carbon steel pipe has poor corrosion resistance and is easily attacked by moisture, air, steam, and chemical media. It rusts readily and requires surface protection such as galvanizing, coating, or painting.
Seamless stainless steel pipe: Due to its chromium-rich composition, stainless steel seamless pipe offers excellent corrosion resistance in acidic, alkaline, and chemical media. Different grades (e.g., 304, 316) provide varying levels of resistance. A dense oxide film forms on the surface, protecting the pipe from further corrosion by air, steam, water, acids, alkalis, and salts.
Seamless carbon steel pipe: Lower cost. It is a bulk commodity and is the most economical choice for general applications.
Seamless stainless steel pipe: High cost due to expensive alloying elements such as chromium and nickel.
Seamless stainless steel pipe: Available in a wide range of specifications, including hot rolling, hot extrusion, and cold drawing (rolling) types. Length, diameter, and wall thickness can be produced according to demand. Common size range: OD 6–630 mm (1/8"–24"), WT 0.5–30 mm. The appearance quality requirements are high, and defects such as cracks and folds must be avoided.
Seamless carbon steel pipe: It also has a variety of specifications and is widely used in various fields. Common size range: OD 10–914.4 mm (1/2"–36"), WT 1–60 mm. Its appearance quality must also meet relevant standards.
Size difference: Stainless steel seamless pipes are often produced in smaller diameters and thinner walls for precision and hygienic applications, while carbon steel seamless pipes cover a wider range of large-diameter and heavy-wall sizes for structural and high-pressure service. ▶ For detailed dimensions, see [Seamless Steel Pipe Sizes and Weights Chart].
Seamless carbon steel pipe: It has excellent mechanical properties and is relatively lightweight. It is an economical cross-section steel widely used in various fields. In addition to strength, the carbon steel seamless pipes reliability in high-pressure environments makes them a preferred choice for critical fluid systems.
Seamless stainless steel pipe: In addition to corrosion resistance, it has good mechanical properties and processing properties, adapting to complex process requirements. During cold processing, stainless steel pipes undergo work hardening, resulting in anisotropy when bent—transverse and longitudinal properties differ. The stress/strain curve of stainless steel has no obvious yield point.
Seamless stainless steel pipe: Seamless stainless steel pipe and seamless carbon steel pipe have similar production processes, including hot rolling (extruded seamless steel pipe), cold drawing (rolling), and other steps. The hot rolling process includes round tube billet heating, perforation, three-roller oblique rolling or continuous rolling, tube removal, sizing (or reducing), cooling, straightening, hydraulic pressure test (or flaw detection), etc.
Seamless carbon steel pipe: The production process may vary depending on specific needs and material properties, but in general it is also produced through perforated hot rolling, followed by cold finishing (cold-rolled/cold-drawn) if needed.
The table below summarizes the key differences at a glance.
| Property | Seamless Carbon Steel Pipe | Seamless Stainless Steel Pipe |
|---|---|---|
| Main Elements | Iron + Carbon (up to 2.11%), trace Mn & Si | Iron + Carbon + Chromium (≥10.5%) |
| Corrosion Resistance | Poor (requires coating) | Excellent |
| Cost | Low | High (3-5x carbon steel) |
| Strength | Depends on carbon content | Moderate to High (≥205 MPa yield for 304/316) |
| Workability | Good | Work hardening tendency |
| Magnetism | Magnetic | Austenitic: Non-magnetic |
| Typical Applications | Water, gas, structural parts | Food, medical, chemical, marine |
Seamless stainless steel pipe: Chemical equipment, pharmaceutical equipment, sewage treatment, food, medical, aerospace, and marine industries. Where hygiene and corrosion resistance are critical.
Seamless carbon steel pipe: Oil and gas, construction, automotive, energy, general fluid transport (water, oil, gas), and structural parts. When you choose carbon steel seamless steel pipe for your project, it is widely used for general fluid transportation such as water, oil, and CO2 gas in industries like oil and gas, chemical, and energy.
● Choose seamless stainless steel pipe:
When the environment is highly corrosive, or when hygiene is critical. Budget is not the primary constraint.
● Choose seamless carbon steel pipe:
When the environment is normal (low corrosion risk), and the budget is limited. If anti-corrosion is needed, consider galvanized or coated carbon steel pipe.
For seamless steel pipe selection across carbon standards, it is important to understand that ASTM A106 is for high-temperature service, API 5L is for oil and gas transmission, and ASTM A53 is for general purposes. Knowing the seamless steel pipe carbon and alloy standards helps ensure compliance.
Q1: Which is stronger, stainless steel or carbon steel pipe?
A: It depends on the grade. High-carbon steel can be very hard, but stainless steel offers a better combination of strength, ductility, and corrosion resistance.
Q2: Is stainless steel seamless pipe magnetic?
A: Austenitic stainless steel (304, 316) is generally non-magnetic. Ferritic and martensitic stainless steels are magnetic.
Q3: Why is stainless steel pipe more expensive?
A: The alloying elements such as chromium and nickel are expensive, and the manufacturing process requires more precise control and heat treatment.
Q4: When should I choose carbon steel over stainless steel?
A: Choose carbon steel when the environment is normal (low corrosion risk), the budget is limited, and no strict hygiene requirements apply. If corrosion resistance or hygiene is critical, choose stainless steel.
Carbon steel pipes (CS pipe) are suitable for a variety of industrial fields due to their strength and durability, while stainless steel pipes are suitable for fields that require high hygiene standards, such as food processing and medical equipment, due to their corrosion resistance and lightweight properties.
Read more:
● Stainless Steel ERW vs Seamless Pipe
● Stainless Steel Seamless Pipe Manufacturing Process
● Seamless Carbon Steel Pipe Sizes
