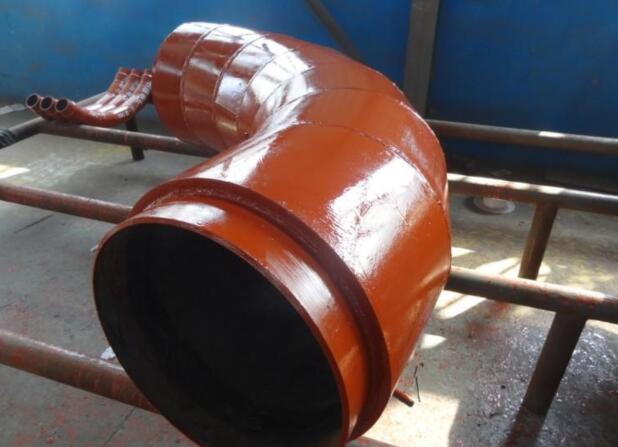

Performance characteristics of wear-resistant pipe elbows

As a special pipeline element, wear-resistant pipe elbows play a vital role in industrial fluid transmission systems. Wear-resistant pipe elbows are key components for conveying high-wear media in industrial pipeline systems. Their core feature is to significantly improve wear resistance through special materials or structural design, thereby extending service life. The following is an analysis of the performance characteristics of wear-resistant pipe elbows:

1. Excellent wear resistance

The most notable feature of wear-resistant pipe elbows is their excellent wear resistance. This is due to the high-strength and high-wear-resistant materials they usually use, such as special alloys or ceramic composites, and the wear rate is 5 to 10 times lower than that of ordinary pipe elbows. These materials can effectively resist particle erosion and corrosion in the fluid, thereby greatly extending the service life of the elbow. In practical applications, wear-resistant elbows can withstand the continuous impact of high-speed fluids, reduce the frequency of maintenance and replacement, and reduce operating costs.



2. Long life and stability
Because wear-resistant pipe elbows use high-quality wear-resistant materials, their service life far exceeds that of ordinary elbows. This long life not only reduces the cost and time of replacing elbows, but also improves the stability of the entire fluid system. In a continuously operating production environment, wear-resistant elbows can maintain long-term stable performance and reduce the risk of leakage or failure caused by elbow wear.

3. Adapt to complex working conditions
The design of wear-resistant pipe elbows takes into account the needs of various complex working conditions, such as high temperature, high pressure, corrosive environment, etc. Whether in petrochemical, power, mining or other heavy industrial fields, wear-resistant elbows can perform well. They can maintain stable performance in harsh working environments and ensure the smooth operation of fluid systems.

Applicable occasions:
High-speed granular media: such as coal powder, ore slurry, cement, sand and gravel (when the pneumatic conveying flow rate is greater than 15m/s).
Corrosion + wear dual working conditions: such as desulfurization slurry (pH 2~6), acid-base salt mixed fluid.

4. Easy to install and maintain
Wear-resistant pipe elbows usually adopt standardized design and manufacturing processes, which makes them easy to install into existing pipeline systems. At the same time, due to their excellent wear resistance, maintenance requirements are greatly reduced. When necessary, wear-resistant elbows can also be easily disassembled and replaced, reducing downtime and maintenance costs.

Key points for selecting wear-resistant pipe elbows:

Medium characteristics:
Particle hardness (quartz sand > coal powder), concentration (wt%), flow rate.

Temperature range:
Ceramic elbows > 350℃ require special adhesives, and alloy elbows can withstand temperatures up to 600℃.

Pressure level:
Bimetal elbows can withstand pressures up to PN40, and ceramic elbows are generally ≤PN16.

Cost trade-off:
Initial investment: ceramics > bimetal > surfacing > ordinary steel; but the overall life cost may be lower.

Typical application cases:
Power plant ash removal system: tungsten carbide spray elbow (resistant to fly ash erosion, life > 5 years).
Coal mine transportation pipeline: bimetallic composite elbow (resistant to coal gangue impact).
Chemical slurry pump outlet: plastic-lined ceramic elbow (corrosion + wear resistance).

Conclusion:

Wear-resistant elbows have become an indispensable and important component in industrial fluid transmission systems with their excellent wear resistance, long life, stability and adaptability to complex working conditions. The selection needs to comprehensively consider the medium, temperature, pressure and cost. Under extreme working conditions, its service life can reach more than 10 times that of ordinary elbows, greatly reducing the frequency of shutdown and replacement.
