Principles of installation and layout of mechanical tubes

Keywords: mechanical tubing, mechanical tube installation and layout, mechanical tube application
Mechanical tubes are divided into mechanical hoses and hard pipes, but each has its own advantages and disadvantages in terms of structural characteristics and use effects. Hard pipes have a larger bending radius than hoses, can withstand higher temperatures, and have a more compact layout. However, hoses have better shock absorption, better flexibility, and can connect moving metal parts than hard pipes. Therefore, in order to better improve the stability and service life of the hydraulic pipeline system, the pipeline layout should be based on the characteristics of different pipe fittings and according to the basic principles of pipeline layout.

1. When arranging pipelines, try to keep them away from components that require frequent maintenance.

2. In order to facilitate maintenance, hydraulic pipelines should be painted in different colors according to different pressures.

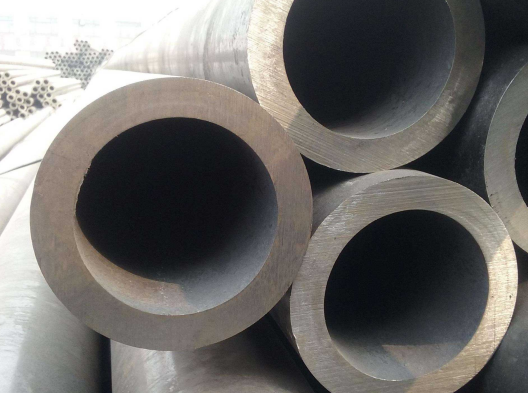

Thick-walled seamless pipes for machinery


3. The pipe section between two fixed points must have at least one pipe to accommodate thermal expansion and contraction, and tight straight pipe connections should be avoided as much as possible. It is difficult to load and unload straight pipe connections, and during work, severe tensile stress will occur in the pipelines, which can easily lead to damage to the pipe joints.

4. When configuring pipelines, consideration should be given to neatness, appearance, and ease of maintenance. It is best to arrange the pipelines in parallel and avoid crossing. There should be at least a 10mm gap between parallel or intersecting pipes to prevent the pipes from contacting each other and causing vibration, and to leave enough space for the installation of pipe heads.

5. When the hose bends in different planes, a longer hose is usually used and a pipe clamp is added at the transition plane to fix the hose. The pipe clamp actually separates the hose into two sections, each section bending in its own plane without twisting. If twisting of the hose cannot be avoided in the actual application, the hose should be made as loose as possible.

Applications of mechanical tubes:
Mechanical tubes are widely used, mainly including mechanical processing, coal mining, hydraulic steel and other fields. ‌

Mechanical processing: ‌ Mechanical pipe is an important material in the mechanical processing industry, ‌ used to manufacture various mechanical parts and equipment. ‌These parts and equipment include but are not limited to machine tools, ‌auto parts, ‌pipeline container equipment, etc. Most of the pipes used for mechanical processing are pipes for mechanical parts, pipes for geological parts, pipes for agricultural economic parts, etc., which meet the special needs of different mechanical equipment. ‌

Coal Mine: ‌ In the coal mine industry, ‌ mechanical pipes are widely used in ventilation, ‌ drainage and other systems to ensure the safety and efficiency of coal mine operations. ‌

Hydraulic steel: ‌The hydraulic system is an important part of many mechanical equipment. The application of mechanical pipes in the field of hydraulic steel ensures the normal operation of the hydraulic system and the stable operation of the equipment. ‌

In addition, seamless steel pipe products for machining use pipe blanks (mainly continuous casting billets) as raw materials, which are heated and rolled into steel pipes through processes such as centering, perforation, and continuous rolling. A variety of production equipment to meet the various requirements of different users. ‌These steel pipes come in various specifications, ‌including but not limited to differences in outer diameter and wall thickness, ‌as well as material selection, ‌such as 10#, ‌20#, ‌35#, ‌45# and other materials, ‌suitable for low, medium and high pressure boiler tubes, marine tubes, train and automobile tubes and many other uses. ‌
