What Does Schedule 40 Seamless Pipe Mean?

Schedule 40 (SCH 40) seamless pipe is one of the most widely used seamless steel pipe specifications in industrial piping systems. This page provides complete schedule 40 seamless pipe dimensions, wall thickness, and weight per meter. It also explains what schedule 40 means and how it is used in piping systems. Use the chart below to find the data you need for your project, covering NPS 1/8" to 24".

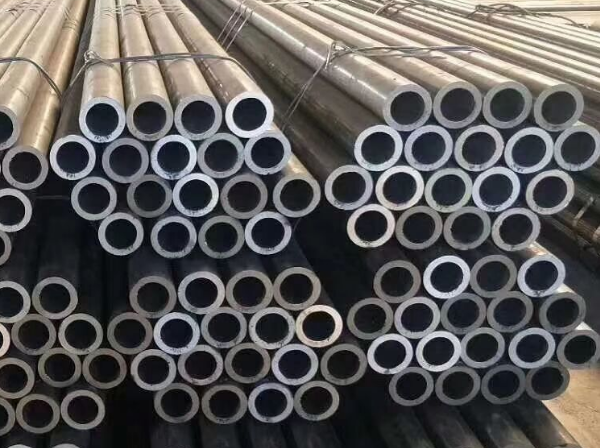

What is Schedule 40 Seamless Pipe?

Schedule 40 seamless pipe, this keyword involves two important concepts in the steel industry: seamless pipe and schedule 40. Seamless pipe is a special kind of steel pipe, and schedule 40 is one of the specifications of seamless pipe.

What Does Schedule 40 Mean?

Schedule 40 (SCH 40) is a wall thickness series defined by ASME/ANSI B36.10 standards. It is the most commonly used schedule for general-purpose steel pipes, offering a balance of strength, weight, and cost-effectiveness.

Schedule 40 is a common piping specification because its moderate wall thickness makes it suitable for applications that can withstand relatively high pressure and temperature. This specification of seamless steel pipe is widely used in industries such as petrochemical, shipbuilding, heating, and general engineering.

Key points:
● SCH 40 indicates a specific wall thickness for each pipe size—not a pressure rating.
● For the same NPS, a higher schedule number (e.g., SCH 80) means a thicker wall.
● The actual pressure capacity depends on pipe diameter, material grade, and temperature.

● Sch 40 can be used for both Seamless steel pipes and ERW (Electric Resistance Welded) pipes.

Schedule 40 Seamless Pipe Dimensions & Weight Chart

The following SCH 40 pipe dimensions chart shows outside diameter (OD), wall thickness (WT), and weight according to ASME B36.10M standard. The chart includes sizes in inches and in millimeters.

SCH 40 Pipe Pressure Ratings

While SCH 40 indicates a wall thickness series, its actual pressure-bearing capacity depends on pipe diameter, material grade, and temperature.

▶ For estimated pressure ratings of SCH 40 carbon steel pipes at room temperature, see our dedicated guide: [Schedule 40 Pipe Pressure Rating Chart & Guide].

Schedule 40 Seamless Pipe: Material & Applications

Seamless pipe/tubing is manufactured without a weld seam, providing higher strength, uniformity, and pressure resistance compared to welded pipes. This makes it suitable for demanding applications where reliability is critical.

Seamless schedule 40 pipes are widely used in:
● Low to medium pressure fluid transport (water, oil, gas)
● Structural applications (supports, scaffolding, frames)
● General engineering and machinery
● Petrochemical, shipbuilding, and heating industries

Common material standards: ASTM A106 Gr.B, ASTM A53 Gr.B, API 5L.

Characteristics of Schedule 40 Seamless Pipe

Schedule 40 seamless pipe offers a combination of properties that make it a reliable choice for many industrial applications:

a. High Strength and Reliability: Manufactured without a weld seam, it provides uniform strength and is capable of withstanding moderate to high internal pressures and mechanical loads.
b. Good Dimensional Accuracy: Produced to close tolerances, ensuring consistent dimensions and ease of installation with standard fittings and flanges.
c. Broad Material Compatibility: Available in a range of carbon steel grades (e.g., ASTM A106 Gr.B, A53 Gr.B), making it suitable for various fluids and gases.
d. Cost-Effective: Offers a good balance of performance and cost for general-purpose and structural applications.

Frequently Asked Questions

Q1: What is the wall thickness of schedule 40 seamless pipe?
A: The wall thickness varies by pipe size (NPS). For example, a 2-inch SCH 40 pipe has a wall thickness of 3.91 mm, while a 4-inch SCH 40 pipe has 6.02 mm. Refer to the complete chart above for all sizes.

Q2: What is the pressure rating of schedule 40 seamless pipe?
A: The pressure rating depends on pipe diameter, material grade, and temperature. There is no single value. For specific calculations, consult ASME B31.3 or contact our engineering team.

Q3: What is the difference between schedule 40 and schedule 80?
A: SCH 80 has a thicker wall than SCH 40 for the same pipe size. For example, a 2-inch SCH 80 pipe has a 5.54 mm wall thickness, compared to 3.91 mm for SCH 40. SCH 80 offers higher pressure capacity but is heavier and more expensive.

Q4: What is the outside diameter of a schedule 40 pipe?
A: The outside diameter (OD) is fixed for each NPS size, regardless of schedule. For example, a 2-inch pipe always has an OD of 60.3 mm, whether it is SCH 40 or SCH 80.

Conclusion:

Schedule 40 seamless pipe is a versatile and dependable choice for a wide range of low-to-medium pressure fluid transport and structural applications. Understanding its dimensions, wall thickness, and material grades is key to successful project execution.

△ Need Schedule 40 Seamless Pipe for Your Project?

HSCO Steel offers high-quality seamless pipes in various sizes and material grades. Contact us for competitive pricing and technical support.
