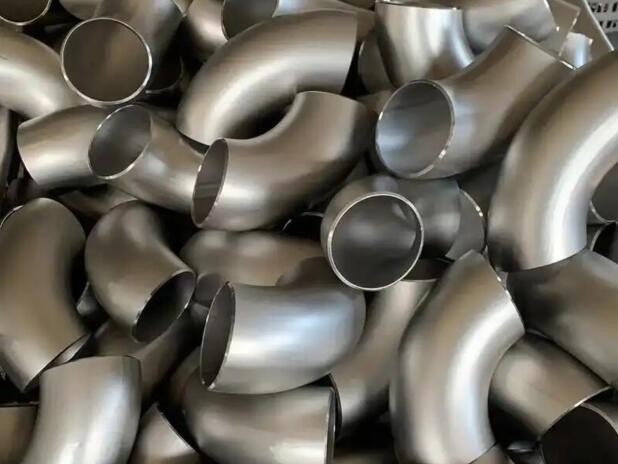

ASTM A403/A403M WP316/316L Stainless Steel Butt-weld Elbow

Stainless steel butt-weld elbows are very important components in pipeline systems. They can not only connect pipelines, but also change the flow direction of pipelines, reduce fluid resistance, and adjust flow. Therefore, they are widely used in chemical, food, petroleum, natural gas, biopharmaceutical and other industries.

What is the ASTM A403/A403M standard?

ASTM A403/A403M is a standard developed by the American Society for Testing and Materials (ASTM) for forged austenitic stainless steel butt-weld pipe fittings, including elbows, tees, reducers, etc. The standard specifies the chemical composition, mechanical properties, dimensional tolerances, heat treatment and testing requirements of these pipe fittings to ensure their reliability and durability in high temperature, high pressure and corrosive environments. ASTM A403/A403M covers common stainless steel materials such as 304/304L, 316/316L, 321, 347, 904L, etc.

Next, let's take a look at the classification and characteristics of stainless steel 316/316L butt-weld elbows:

Classification by bending radius:
Stainless steel 316/316L butt-weld elbows can be divided into 1.5D (long radius) elbows and 1D (short radius) elbows according to the bending radius.

1.5D (long radius) elbows are usually widely used in industry and daily life. For example, long radius elbows are used when solid transmission pipelines need to reduce resistance or elbows are restricted, or when water flow speed is fast or pressure is high. 1D (short radius) elbows are generally used in low-pressure flow or places where elbows are restricted. The wear degree of long radius elbows is less than that of short radius elbows, and the corrosion force is greatly reduced, and the resistance is also small.

Classification by bending angle:
Stainless steel 316/316L butt-weld elbows can be divided into 45-degree elbows, 90-degree elbows, 180-degree elbows, etc. according to the bending angle.

45-degree elbows and 90-degree elbows are widely used in pipeline systems. 45-degree and 90-degree elbows are mainly used to change the flow direction of the pipeline; 180-degree elbows are mainly used in places in the pipeline system where the direction needs to be changed and the pipeline needs to return to the origin. The shapes of 45-degree elbows and 90-degree elbows are similar, but the angles are different. The shape of 180-degree elbows is completely different. Its bending angle is very large and is usually used only in a few cases.

In general, the main differences between 45-degree elbows, 90-degree elbows and 180-degree elbows are their angles, uses and shapes.

Classification by production method:
Stainless steel 316/316L butt welding elbows can be divided into seamless elbows and welded elbows according to the production method.

Seamless elbows and welded elbows mainly differ in the following three aspects:

1. Different raw materials: Seamless elbows use stainless steel seamless steel pipes as raw materials and are processed and formed by hot pressing or stamping; while welded elbows use straight seam pipes welded by stainless steel plates as raw materials, and then processed and formed, or directly pressed and formed with steel plates, and then welded.

2. Performance: There are also differences in performance between welded elbows and seamless elbows. Since seamless elbows are made of seamless pipes, they are more durable and more beautiful in appearance. Welded elbows may not be completely welded during welding, which reduces their strength and reliability.

3. Scope of application: Seamless elbows are suitable for high-pressure and high-temperature environments, such as oil and natural gas, while welded elbows are more suitable for general industrial fields such as construction and shipbuilding.

Application areas:
Chemical and petrochemical: used in corrosive media and high-temperature and high-pressure environments.
Food and pharmaceutical: used in occasions with high hygiene requirements.
Energy: used in high-temperature and high-pressure systems of nuclear power plants and conventional power plants.

In summary, ASTM A403/A403M is an important standard for austenitic stainless steel butt-welded pipe fittings. When choosing the type of stainless steel elbow, it is necessary to consider the specific use environment and supporting facilities to select the most suitable product.

Read more: 304 vs. 316 Stainless Steel: What's the Difference? or ASTM A403 WP304/304L Seamless Elbow
