How to choose pipe flange material?

Pipe flange is an important connecting pipe fitting in the pipeline system, and its material selection is particularly important. The material selection of the pipe flange needs to be comprehensively considered based on the media characteristics (corrosion resistance), working environment, price, etc. Commonly used materials include carbon steel, stainless steel, alloy steel, cast iron, special alloys, etc. Different materials are suitable for different environmental conditions, and the selection needs to be judged based on the specific situation.

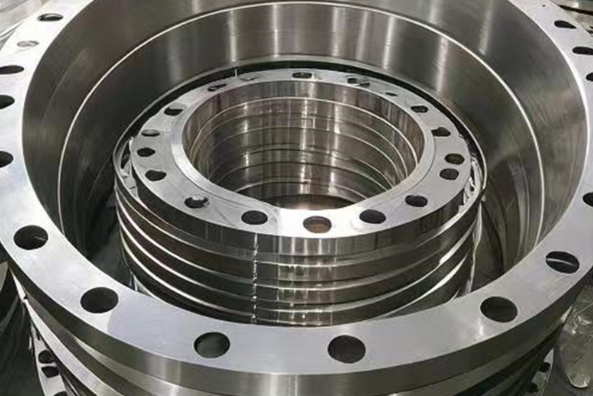

What factors should be considered when selecting pipe flange materials?

As an important component of connecting pipelines, flange performance and material selection play a vital role in the operational stability and safety of the entire system. When selecting flange materials, you need to consider the following factors:

1. Media characteristics

First of all, the material must be selected according to the nature of the medium in the pipe or equipment to which the flange is connected. The medium may be water, steam, oil, gas, chemicals, etc. Its temperature, pressure, corrosivity, viscosity and other characteristics will directly affect the applicability of the material. For example, for highly corrosive media, materials with strong corrosion resistance such as stainless steel, alloy steel or special alloys need to be selected; for high temperature and high pressure environments, high temperature and high pressure resistant materials such as chromium-molybdenum steel and nickel-based alloys need to be considered.

2. Working environment
The working environment is also one of the key factors in determining the material of the flange. Outdoor flanges need to consider climate effects, such as extreme temperatures, humidity changes and possible ultraviolet radiation; while indoor flanges need to pay attention to whether there are special gas environments, such as acid mist, oil mist, etc. In addition, mechanical factors such as vibration and impact may also impose special requirements on flange materials.

3. Economy and maintainability (price)
On the premise of ensuring performance requirements, economy is also a factor that must be considered when selecting materials. The cost of flanges of different materials varies greatly, and a comprehensive evaluation needs to be carried out based on the project budget and long-term operating costs. At the same time, the material's easy processability, weldability, and maintenance convenience are also important factors that affect maintenance costs.

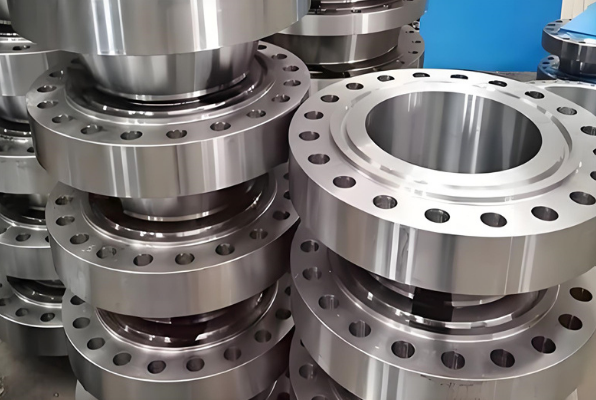

What are the commonly used pipe flange materials?

1. Carbon steel flange
Carbon steel is one of the most common flange materials and is widely used in non-corrosive or low-corrosive media due to its low cost and good processing performance. However, carbon steel has limited corrosion resistance and is prone to rust in humid or oxygen-containing environments. Therefore, anti-corrosion measures such as galvanizing and spraying are required. Carbon steel flanges are commonly used in situations where pressure and temperature requirements are not high, and are suitable for general industrial applications, such as low-pressure and low-temperature piping systems.

2. Stainless steel flange
Stainless steel flanges have excellent corrosion resistance, are suitable for higher temperatures and pressures, have a longer service life, and are relatively expensive. Stainless steel flanges are especially suitable for highly corrosive environments, such as chemical, pharmaceutical, food and other industries. Common stainless steel materials include 304, 316, 316L, etc.

3. Alloy steel flange
Alloy steel is steel made by adding one or more alloying elements to ordinary carbon steel. Through alloying, the strength, hardness, wear resistance, corrosion resistance and other properties of steel can be significantly improved. Compared with carbon steel flanges, alloy steel flanges have greater corrosion resistance and higher strength, but are more expensive. Alloy steel flanges are often used under high temperature, high pressure, heavy load or highly corrosive working conditions. Common alloy steel materials include A335 P11, A335 P22, etc.

4. Cast iron flange
Cast iron flanges are mainly used in low-pressure non-corrosive media systems, such as water supply and drainage, fire protection and other fields. Cast iron flanges are lower in cost, but their mechanical properties and corrosion resistance are relatively weak, so they are not suitable for high pressure or corrosive environments.

5. Special alloy flange

For some extreme working conditions, such as high temperature, high pressure, and highly corrosive environments, special alloys such as nickel-based alloys, titanium alloys, etc. need to be used to make flanges. These alloys have extremely high corrosion resistance, high temperature resistance and mechanical strength, but are also relatively costly.

How to choose the appropriate pipe flange material?

When selecting flange materials, you need to comprehensively consider factors such as the use environment, medium corrosivity, and price to make a reasonable choice.

1. Under normal circumstances, carbon steel flange is the most common choice because it has the highest cost performance under medium-low temperature and medium-low pressure conditions.
2. If the medium is highly corrosive, stainless steel flanges or alloy steel flanges should be preferred.
3. When selecting flange material, other factors need to be considered. For example, comprehensive factors such as the sealing performance, high temperature resistance, and rust resistance of the flange need to be considered. For high-temperature transmission media, flanges made of high-temperature alloy are generally selected.

other:

1) Pipe flange size selection

The size of the pipe flange needs to be selected according to the diameter of the pipe. There are usually two types of standard sizes and non-standard sizes. Standard sizes are generally selected in accordance with international standards or national standards, while non-standard sizes need to be customized according to the actual pipe size.

2) Pipe flange pressure grade selection

The pressure level of the pipeline flange needs to be selected according to the pressure level of the pipeline system. Generally, the corresponding pressure level is selected based on the working pressure and temperature of the pipeline. General pressure levels include PN0.25, PN0.6, PN1.0, PN1.6, PN2.5, PN4.0, PN6.3, PN10, PN16, PN25, PN40, etc.

Installation of pipe flange:

1. Preparation before installation
Before installation, the flanges, gaskets, bolts, etc. need to be inspected and cleaned to prevent debris and dust from affecting the installation quality. At the same time, it is necessary to check whether the pipe length, diameter, elbow, etc. meet the design requirements, and check whether the flange bolt hole position is correct.

2. Flange connection
Align the flange and pipe installation, check whether the flange gap is even, and use the diagonal method to tighten the bolts. When tightening the bolts, each bolt needs to be tightened alternately one turn after another. Be careful not to be too tight or too loose to avoid affecting the service life of the flange.

3. Pressure test
After the installation is completed, a pressure test is required to check the quality of the pipe flange connection. Generally, a hydraulic test is used. The test pressure should be 1.5 times the maximum working pressure of the pipeline system, and the test time should be more than 10 minutes.

Maintenance of pipe flanges:

1. Regular inspection
For pipe flanges, it is necessary to regularly check whether the fastening bolts of the flange connection are loose and whether the sealing gaskets are aged. If problems are found, they need to be replaced in time. In addition, it is also necessary to check whether the anti-corrosion layer of the pipeline is intact, and any damage needs to be repaired in time.

2. Pay attention to the pipeline medium
The nature and temperature of the pipeline medium will affect the service life of the flange. Pipes with corrosive media need anti-corrosion treatment, and high-temperature pipes need to be made of high-temperature resistant materials.

3. Avoid mechanical impact
Pipe flanges need to avoid mechanical impact and excessive vibration during use to avoid damage and aging of the pipe flange.

Conclusion:

Pipe flanges are an important connection method in pipeline systems. The selection and use of their materials require comprehensive consideration of media characteristics, working environment, economy, maintainability and other factors. Proper installation and maintenance can extend the service life of flanges and ensure the normal operation of the piping system.
