Valve

Types: Ball Valve, Gate Valve, Check Valve, Globe Valve, Butterfly Valve

Grades: SS316, A126 FC20, A182 F316, A213 WCB, A351 CF8M, BRONZE B61, BRONZE B62, BROB62, Ductile Iron, FC200, A126 CL.B, A182 F316L, A276 316, A351 CF3M, A536 Ductile Iron, Nodular Cast Iron, SCPH2, A105

Materials: Mild Steel, Stainless Steel, Bronze,  Cast Iron, Forged Steel.

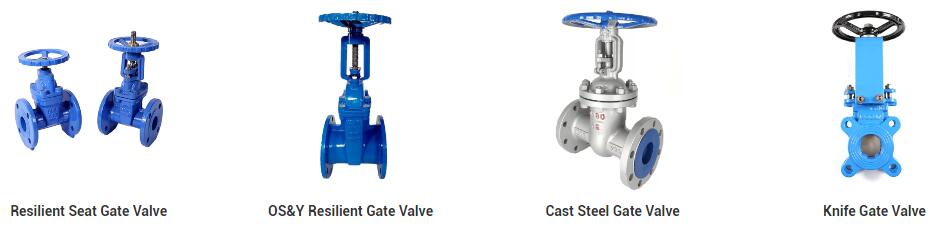

Gate Valves




1. Forged Gate Valve

Design and Manufacture: API 602,BS 5352,ASME B16.34/B16.11/B1.20.1/B16.25 /B16.5
Size Range: 1/2＂～4＂
Pressure Ratings: 150LB-2500LB
Temperature Range: -196℃～500℃
End Connections: Threaded,Socket-Welded,Butt-Welded,Flange Type(Welded flange &Integral flange)
Bonnet Design: Bolted bonnet, Welded bonnet, Pressure sealed bonnet
Face to Face Dimension: ASME B16.10 and other standard

Inspection and Testing: API 598 and other standard

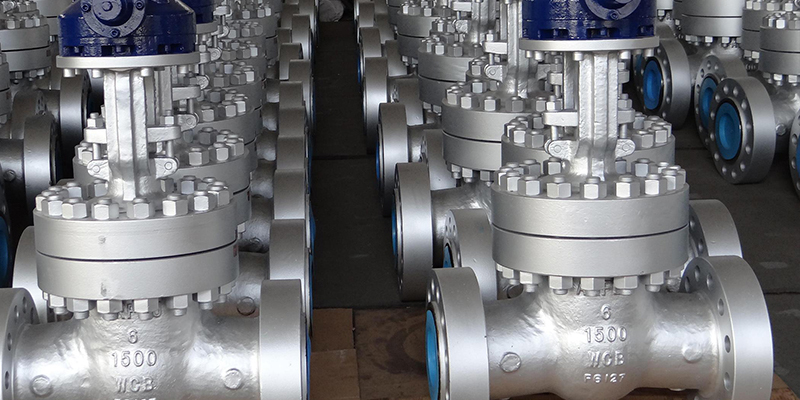

2. Casting Gate Valve

Design and Manufacture: DIN3352，API 6D,ASME B16.34,API600，GOST5762-2002

Size Range: DN40-1400，1/2＂～60＂
Pressure Ratings: PN1.0-PN42.0Mpa,150LB-2500LB,
End Connections: EN1092，ASME B16.5, ASME B16.47, MSS-SP44, GOST12815-80
Face to Face Dimension: DIN3202, ASME B16.10, API 6D,GOST3706-93
Inspection and Testing: DIN 3230,API 598，GOST356-80


3. Cast Iron Gate Valve

Design standard conform to: ANSI/AWWA C509
Face to face conform to: ASME B16.10
Pipe connection conform to: ASME B16.1 CLASS125  ANSI/AWWA C111/A21.11  AWWA C606
Pressure testing standard conform to: ANSI/AWWA C509
Actuator: 2 "AWWA operating nut or hand wheel, chain wheel, gearbox, etc.

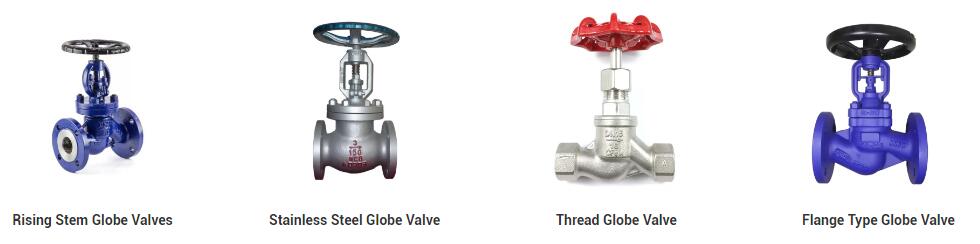

Globe Valve


1. Forged Globe Valve

Body Construction: T-type,Y-type,Angel type.

Bonnet Design: Bolted bonnet, Welded bonnet, Pressure sealed bonnet
Design and Manufacture: API 602,BS 5352,ASME B16.34/B16.11/B1.20.1/B16.25 /B16.5
Size Range: 1/2＂～4＂
Pressure Ratings: 150LB-2500LB
Temperature Range: -196℃～500℃
End Connections: Threaded,Socket-Welded,Butt-Welded,Flange Type(Welded flange &Integral flange)
Face to Face Dimension: ASME B16.10 and other standard

Inspection and Testing: API 598 and other standard


2. Casting Globe Valve

Design and Manufacture: DIN3356，API 6D,ASME B16.34，GOST5762-2002
Size Range: DN40-1400，2＂～24＂
Pressure Ratings: PN1.0-PN42.0Mpa,150LB-2500LB
End Connections: EN1092，ASME B16.5, ASME B16.47, MSS-SP44, GOST12815-80
Face to Face Dimension: DIN3202, ASME B16.10, GOST3706-93
Inspection and Testing: DIN 3230,API 598，GOST356-80

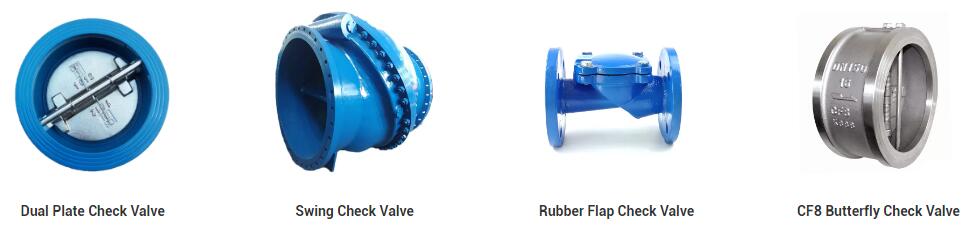

Check Valve




1. Forged Check Valve

Body Construction: Lift check valve, Swing check valve, Ball check valve.
Bonnet Design: Bolted bonnet, Welded bonnet, Pressure sealed bonnet
Design and Manufacture: API 602,BS 5352,ASME B16.34/B16.11/B1.20.1/B16.25 /B16.5
Size Range: 1/2＂～4＂
Pressure Ratings: 150LB-2500LB
Temperature Range: -196℃～500℃
End Connections: Threaded,Socket-Welded,Butt-Welded,Flange Type(Welded flange &Integral flange)
Face to Face Dimension: ASME B16.10 and other standard

Inspection and Testing: API 598 and other standard.

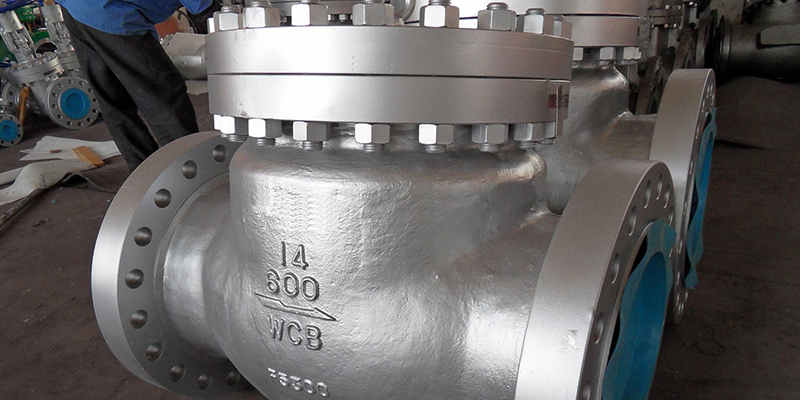

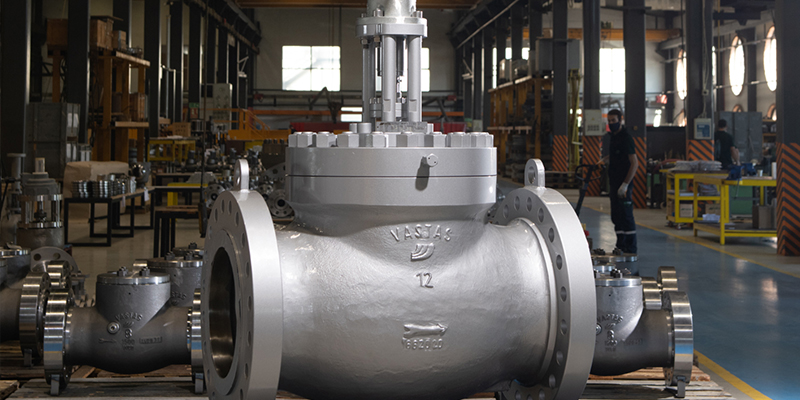

2. Casting Check Valve

Design and Manufacture: DIN3356，API 6D,ASME B16.34,BS1868,GOST5762-2002
Size Range: DN40-1400，2＂～48＂
Pressure Ratings: PN1.0-PN42.0Mpa,150LB-2500LB
End Connections: EN1092，ASME B16.5, ASME B16.47, MSS-SP44, GOST12815-80
Face to Face Dimension: DIN3202, ASME B16.10,API6D, API594，GOST3326-86
Inspection and Testin: DIN 3230,API 598，GOST356-80

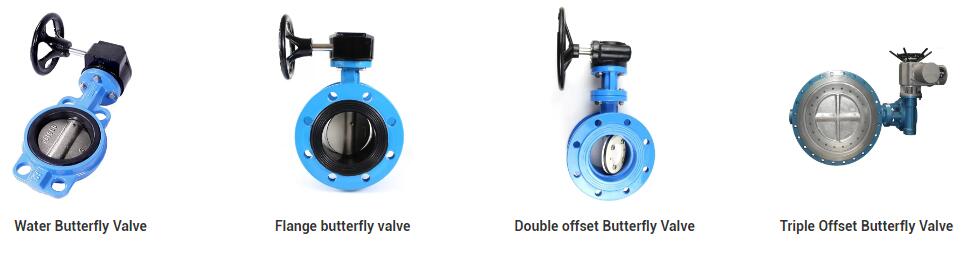

Butterfly Valve




1. Resilient Seat Butterfly Valve

Design standard：API 609/EN593
Connection Flange：ISO 7005-2 PN10/16, EN 1092-2 PN10/16,  ASME B16.5 CLASS 150, JIS 10K (DN40~DN300)
Top Flange：ISO 5211
Face To Face：API 609A /EN558 20 series
Test Standard：API 598 /EN12266-1

Working Pressure：PN10/16


2. Double Flange Double Eccentric Butterfly Valve

Design standard Conform To：EN 593
Connection flange conform To：EN1092-2, ISO7005-2
Top flange conform to：ISO 5211
Face to face conform to：EN 558 Series 14
Test standard conform to：EN12266-1
Nominal working pressure：PN10/PN16/PN25/PN40


3. AWWA C504 Butterfly Valve

Design Standards：AWWA C504/AWWA C516
Connection Flange：ASME B16.1 Class 125  AWWA C111/A21.11
Top Flange：MSS SP-101/ISO 5211
Face to Face：AWWA C504/AWWA C516
Test Standard：AWWA C504

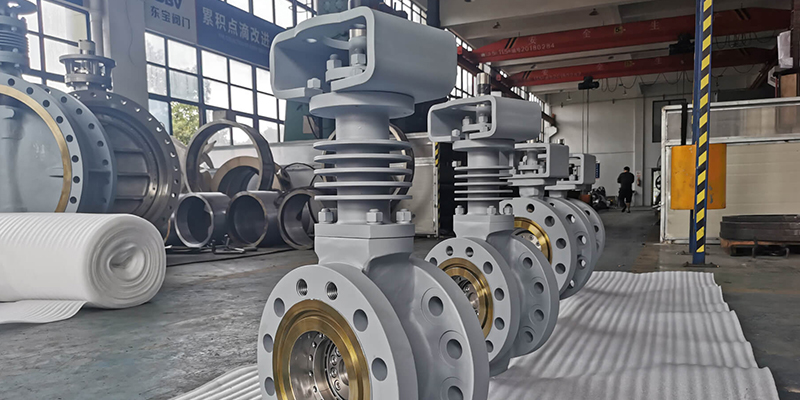

4. Tripple Offset Meatal Seated Bufferfly Valve

Size Range：3＂~128＂ (80mm~3200mm)
Pressure Class：150lb~1500lb(PN25~PN260)
Temperature Range：-196℃~+650℃（-321℉~+1202℉）
Connection Type：wafer,lug,double flange,butt -welded
Drive Type：Worm gear, Pneumatic, Electric,Hydraulic


High Performance Butterfly Valve

Pressure：Classl50, Class300
Size：Basic type:  2”-48”（50mm -1200mm)
Fire safety type: 2”- 60”（50mm -1500mm)
Temperature：-196°C ~ +650°C (-321 ℉~+1202℉）
Connection Type：wafer, lug
Drive Type：manual, worm gear, pneumatic, electric
Applicable Medium: corrosive chemical media, water, gas, acid, alkali, steam, pharmaceutical, etc.

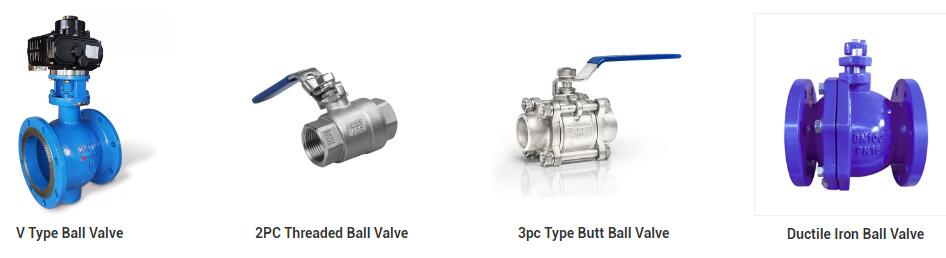

Ball valve

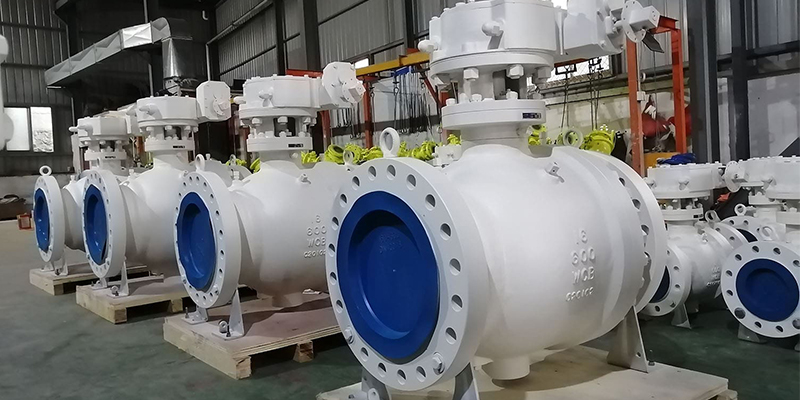

1. Hard Seal Trunnion Mounted Ball valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2”～48”
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～650℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480


2. Soft Seal Trunnion Mounted Ball Valve

Design and Manufacture:API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2＂～48＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN10.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480


3. Soft Seal Floating Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T1967
Size Range: 1/2＂～10＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension:ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing:API 6D,API 598，JB/T9092，GB/T13927，GB/T26480


4. FS Soft Seal Floating Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～4＂
Pressure Ratings: 150LB-900LB（PN1.6-PN15.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.11, ASME B16.25, GB/T12224
Face to Face Dimension: Manufacturer standard
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480


5. Hard Seal-Floating Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～10＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～650℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480


6. Full Welded Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2＂～40＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480


7. Top Entry Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2＂～10＂
Pressure Ratings: 150LB-900LB（PN1.6-PN15.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480


8. Three Way&Four Way Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～8＂
Pressure Ratings: 150LB（PN1.6-PN4.0MPa）
Temperature Range: -29℃～350℃
End Connections: ASME B16.5 , JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092
Face to Face Dimension: Manufacturer standard
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480


9. Flange High Temperature Ball Valve

Design and Manufacture:API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～8＂
Pressure Ratings: 150LB（PN1.6-PN2.5MPa）
Temperature Range: -196℃～300℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480


10. Thin Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292
Size Range: 1/2”～8”
Pressure Ratings: 150LB（PN1.6-PN2.5MPa）
Temperature Range: -196℃～350℃
End Connections: ASME B16.5 , EN1092
Face to Face Dimension: ASME B16.10, EN 588
Inspection and Testing: API 6D,API 598


11. Heating Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～10＂
Pressure Ratings: 150LB-600LB（PN1.6-PN10.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480


    Class 150
    Dimensions and Weights  (*Gear Operated )
    Nom Size  Face to Face RF  Face to Face RTJ  Face to Face BW  Height.. Handwheel Diameter..Weight.. Weight
    in  in  mm  in  mm  in  mm  in  mm  mm  Kgs
    2 7 178 7.52 191 8.5 216 16.1 409 200 18
    21.2 7.5 190 8 203 9.5 241 17.4 442 200 28
    3 8 203 8.5 216 11.1 283 20 508 250 34
    4 9 229 9.5 241 12 305 23.2 590 250 52
    5 10 254 10.5 267 15 381 26.5 673 250 71
    6 10.5 267 11 279 15.8 403 30.2 767 300 88
    8 11.5 292 12 305 16.5 419 37.8 960 350 144
    10 13 330 13.5 343 18 457 45.6 1158 400 197
    12 14 356 14.5 368 19.8 502 54.3 1378 450 298
    14 15 381 15.5 394 22.5 572 60.75 1543 500 406
    16 16 406 16.5 419 24 610 68.4 1738 600 524
    18 17 432 17.5 445 26 660 77.1 1959 600 720
    20 18 457 18.5 470 28 711 87.2 2214 680 1117
    24 20 508 20.5 521 32 813 102.3 2599 760 1466
    26*  22 559 22.5 572 34 863 121.5 3086 GO 1699
    28*  24 610 24.5 622 36 914 131 3327 GO 1931
    30*  24 610 24.5 622 36 914 142 3606 GO 2380
    32*  26 660 26.5 673 38 965 146 3708 GO 2490
    36*  28 711 28.5 724 40 1016 154.5 3924 GO 3600
    42*  32 813 32.5 826 45 1143 179 4546 GO 4710
    48*  42 1066 42.5 1079 54 1371 204 5181 GO 6500

    Class 300
    Dimensions and Weights  (*Gear Operated )
    Nom Size  Face to Face RF  Face to Face RTJ  Face to Face BW  Height.. Handwheel Diameter..Weight.. Weight
    in  in  mm  in  mm  in  mm  in  mm  mm  Kgs
    2 8.5 216 9.12 232 8.5 216 16.7 424 200 24
    21.2 9.5 241 10.12 257 9.5 241 18.1 460 200 44
    3 11.13 283 11.8 298 11.13 283 21 535 250 52
    4 12 305 12.6 321 2 305 24.2 615 250 76
    5 15 381 15.6 397 15 381 26.1 662 350 94
    6 15.86 403 16.5 419 15.86 403 31.3 795 350 146
    8 16.5 419 17.1 435 16.5 419 39.9 1012 400 218
    10 18 457 18.6 473 18 457 48.5 1231 450 352
    12 19.75 502 20.4 518 19.75 502 57 1450 500 472
    14 30 762 30.6 778 30 762 64.8 1645 600 694
    16 33 838 33.6 854 33 838 72.5 1841 600 1080
    18 36 914 36.6 930 36 914 76.5 1943 680 1235
    20 39 991 39.8 1010 39 991 84.8 2154 965 1655
    24 45 1143 45.9 1165 45 1143 100.5 2553 915 2320
    26*  49 1244 49.8 1266 49 1244 108.3 2750 GO 3100
    28*  53 1346 53.9 1368 53 1346 122.05 3100 GO 3893
    30*  55 1397 56 1422 55 1397 130.71 3320 GO 4930
    32*  60 1524 61.9 1546 60 1524 140.2 3560 GO 5230
    36*  68 1727 69 1752 68 1727 153.94 3910 GO 6885

    Class 600
    Dimensions and Weights  (*Gear Operated )
    Nom Size  Face to Face RF  Face to Face RTJ  Face to Face BW  Height.. Handwheel Diameter..Weight.. Weight
    in  in  mm  in  mm  in  mm  in  mm  mm  Kgs
    2 8.5 216 9.12 232 8.5 216 16.7 424 200 24
    21.2 9.5 241 10.12 257 9.5 241 18.1 460 200 44
    3 11.13 283 11.8 298 11.13 283 21 535 250 52
    4 12 305 12.6 321 2 305 24.2 615 250 76
    5 15 381 15.6 397 15 381 26.1 662 350 94
    6 15.86 403 16.5 419 15.86 403 31.3 795 350 146
    8 16.5 419 17.1 435 16.5 419 39.9 1012 400 218
    10 18 457 18.6 473 18 457 48.5 1231 450 352
    12 19.75 502 20.4 518 19.75 502 57 1450 500 472
    14 30 762 30.6 778 30 762 64.8 1645 600 694
    16 33 838 33.6 854 33 838 72.5 1841 600 1080
    18 36 914 36.6 930 36 914 76.5 1943 680 1235
    20 39 991 39.8 1010 39 991 84.8 2154 965 1655
    24 45 1143 45.9 1165 45 1143 100.5 2553 915 2320
    26*  49 1244 49.8 1266 49 1244 108.3 2750 GO 3100
    28*  53 1346 53.9 1368 53 1346 122.05 3100 GO 3893
    30*  55 1397 56 1422 55 1397 130.71 3320 GO 4930
    32*  60 1524 61.9 1546 60 1524 140.2 3560 GO 5230
    36*  68 1727 69 1752 68 1727 153.94 3910 GO 6885

    Class 900
    Dimensions and Weights  (*Gear Operated )
    Nom Size  Face to Face RF  Face to Face RTJ  Face to Face BW  Height.. Handwheel Diameter..Weight.. Weight
    in  in  mm  in  mm  in  mm  in  mm  mm  Kgs
    2 14.5 368 14.63 371 14.5 368 14.5 620 300 95
    21.2 16.5 419 16.63 422 16.5 419 27.8 705 350 108
    3 15 381 15.13 384 15 381 27.4 695 350 125
    4 18 457 18.13 460 18 457 32.5 825 400 192
    6 24 610 24.13 613 24 610 42 1065 500 378
    8 29 737 29.13 740 29 737 52 1320 600 635
    10 33 838 33.13 841 33 838 60.6 1540 750 900
    12 38 965 38.13 968 38 965 72.5 1840 850 1550
    14*  40.5 1029 40.88 1038 40.5 1029 79.7 2025 GO  2170
    16*  44.5 1130 44.88 1140 44.5 1130 85.4 2170 GO 3070
    18*  48 1219 48.5 1232 48 1219 87.87 2232 GO  3930
    20*  52 1320 52.52 1334 52 1320 95.87 2435 GO 5120
    24*  61 1549 61.54 1563 61 1549 112.8 2865 GO 7800

    Class 1500
    Dimensions and Weights  (*Gear Operated )
    Nom Size  Face to Face RF  Face to Face RTJ  Face to Face BW  Height.. Handwheel Diameter..Weight.. Weight
    in  in  mm  in  mm  in  mm  in  mm  mm  Kgs
    2 14.5 368 11.63 371 14.5 368 22 559 250 82
    21.2 16.5 419 16.63 422 16.5 419 26.5 673 400 127
    3 18.5 470 18.63 473 18.5 470 28 711 400 168
    4 21.5 546 21.63 549 21.5 546 33 838 500 277
    6 27.8 705 28 711 27.8 705 55 1397 600 640
    8*  32.8 832 33.13 841 32.8 832 71.8 1822 GO 1180
    10*  39 991 39.38 1000 39 991 80.8 2051 GO 2118
    12*  44.5 1130 45.13 1146 44.5 1130 84 2134 GO 3244
    14*  49.5 1257 50.25 1276 49.5 1257 89.3 2267 GO 3693
    16*  54.5 1384 55.38 1407 54.5 1384 95.3 2420 GO 4890

    Class 2500
    Dimensions and Weights  (*Gear Operated )
    Nom Size  Face to Face RF  Face to Face RTJ  Face to Face BW  Height.. Handwheel Diameter..Weight.. Weight
    in  in  in  in  in  mm  Kgs
    2 17.75 451 17.88 454 17.75 451 27.6 700 350 135
    21.2 20 508 20.25 514 20 508 29.5 750 450 210
    3 22.75 578 23 584 22.75 578 34.6 887 560 271
    4 26.5 673 26.88 683 26.5 673 42.5 1079 720 506
    6*  36 914 36.5 927 36 914 53.9 1370 GO  1571
    8*  40.25 1022 40.88 1038 40.25 1022 60.5 1530 GO  2401
    10*  50 1270 50.88 1292 50 1270 80.5 2045 GO  4520
Copyright @2017 Hunan Standard Steel Co.,Ltd and Husteel Industry Group All Rights Reserved


LOOKING FOR WHICH PRODUCT YOU NEED OR SEND INQUIRY

We use cookies to offer a better browsing experience, analyze site traffic, and personalize content. By using this site, you agree to our use of cookies.

Accept
Decline
