Elbow

Pipe Elbows are installed between two lengths of pipe or tubing to allow a change of direction, usually at a 90° or 45° angle.
Elbows are sold with buttweld, threaded, and socket weld ends. We stock them in Aluminum, Carbon Steel, Malleable Iron, and Stainless (both 304 and 316) steel.

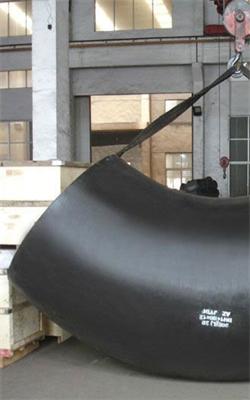

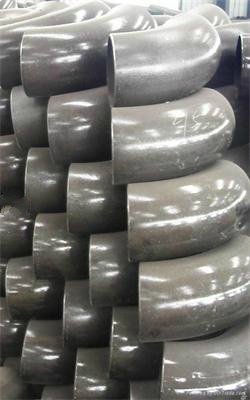

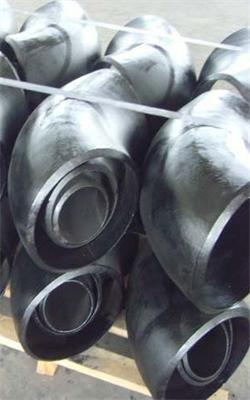

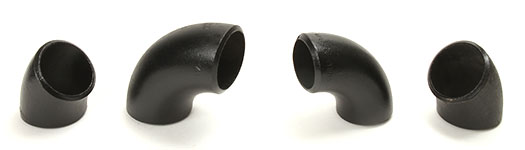

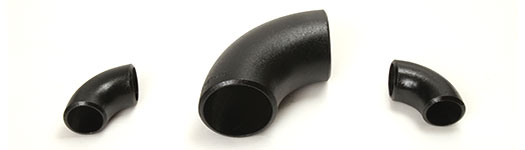

Carbon Steel Buttweld
Carbon Steel Buttweld Elbows conform to ASTM A234.
Stocked in sizes from 3/4" to 18".
Many sizes of Carbon Steel Buttweld Elbows are available in domestic and imported versions.

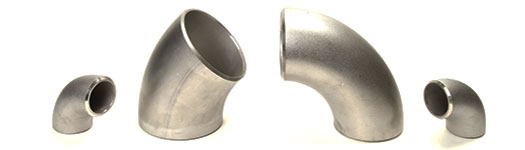

Stainless Buttweld
Stainless Buttweld Elbows conform to ASTM A403.
Stocked in sizes from 3/4" to 6".
Both Standard (STD) and Schedule 10 are stocked.
45°, 90°, and Street 90° Stainless Buttweld Elbows are available.
Available in grades 304L and 316L (L=low carbon).

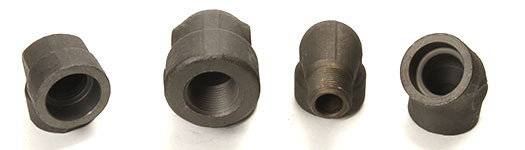

Forged Steel
Forged Steel Elbows conform to ASTM A105 and ASME SA105.
Stocked in sizes from 1/8" to 4".
Available with both Socket Weld and Threaded ends.
Class 2000#, 3000#, and 6000# are stocked.
45°, 90°, and Street 90° Forged Steel Elbows available.

Handrail
Handrail Elbows are inexpensive buttweld elbows that do not come with any test reports and are used for simple construction projects.
Stocked in sizes: 1", 1.25", and 1.50".

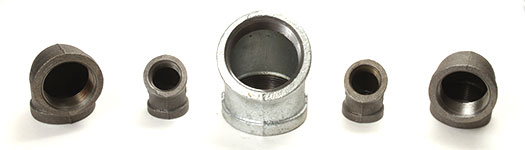

Malleable Iron
Malleable Iron Elbows are available in both black and galvanized finishes.
Stocked in sizes from 1/8" to 6".
45°, 90°, Street 45°, and Street 90° Malleable Iron Elbows are available.

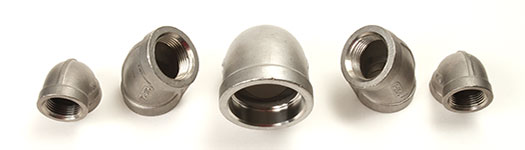

Cast Stainless
Cast Stainless Elbows are stocked in sizes from 1/8" to 4".
Available in grades 304 and 316.
We keep both Socket Weld and Threaded end Cast Stainless Elbows in stock.
45°, 90°, and Street 90° Cast Stainless Elbows are available.

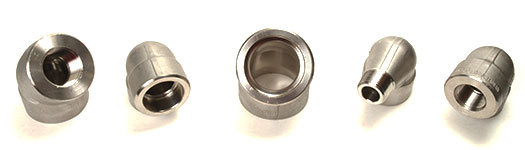

Forged Stainless
Forged Stainless Elbows conform to ASTM A182.
Stocked in sizes from 1/4" to 3".
Available with both Socket Weld and Threaded ends.
45°, 90°, and Street 90° Forged Stainless Elbows available.
Available in grades 304L and 316L (L=low carbon).
