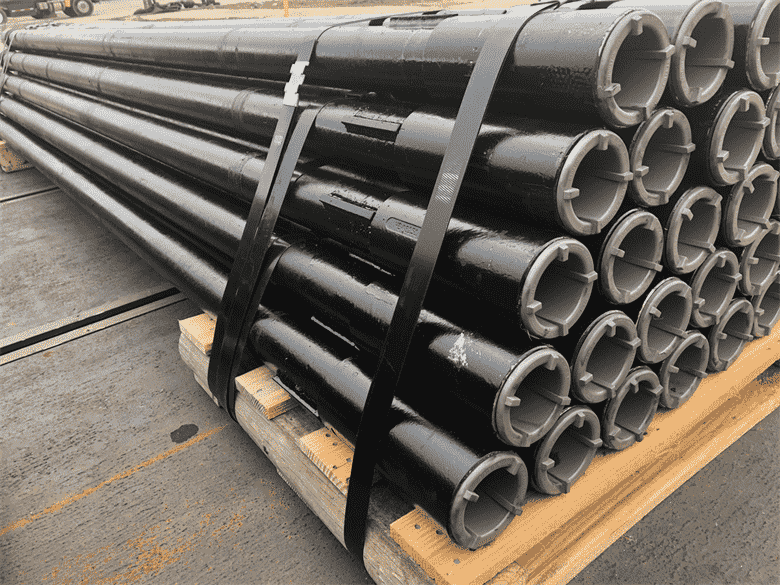

Drill Pipe

Standard: API 5Ddrill pipe

Grade: E-75, X-95, G-105, S-135

Application: For well drilling


Out Diameter of Drill Pipe:

From 2 3/8” to 6 5/8″


Length ranges of Drill Pipe:
Range 1: 18 ft. to 22 ft.
Range 2: 27 ft. to 30 ft.
Range 3: 38 ft. to 45 ft.


Types of Drill Pipe:
Drill pipe
Heavy weight drill pipe
Tool joint
Pup joint

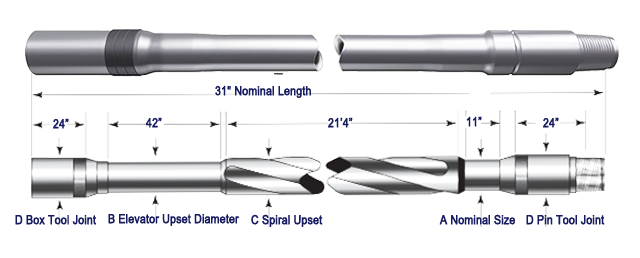

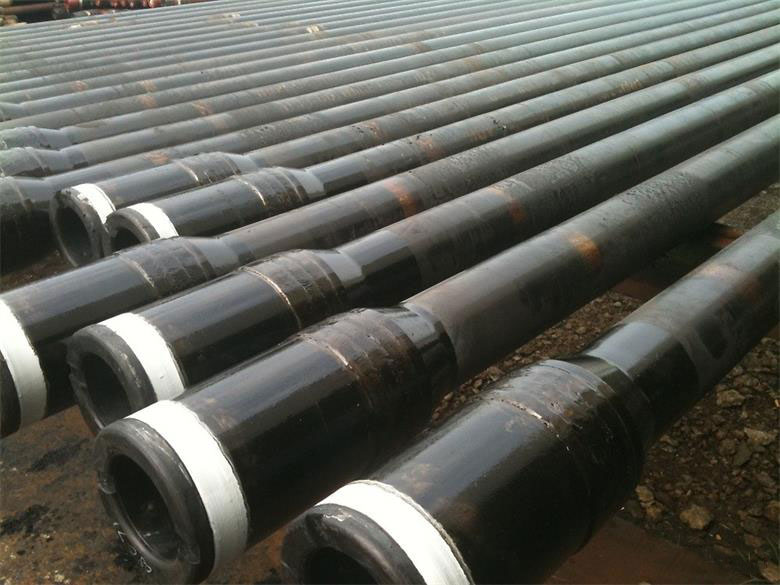

Upset of drill pipe
The upset (thread-end finish) refers to the wall of the tool joint at the threaded connection. Drill pipe is offered with an internal upset (IU), an external upset (EU), or an internal-external upset (IEU).
IU - In an internal upset increased thickness along the inside walls compensate for the metal removed in threading with a uniform, straight outside wall.
EU - In an external upset the increased thickness along the outside diameter of the tubing compensates for the metal removed in threading with a straight bore.
IEU - In an internal-external upset thickness is increased along both the inside and outside walls of the pipe to compensate for the metal removed in threading.


Sizes & Weight of Drill Pipe

Designations* Tool Joint Data
Pipebody OD (Inches) Poundage (Pounds Per Foot) Grade Upset Type Rotary Shouldered Connection OD (Inches) PIN ID (Inches) Pin OD Length* (Inches) Box OD Length* (Inches)
2-3/8 6.65 E EU NC26 3-3/8 1-3/4 7 8
2-3/8 6.65 X,G EU NC26 3-3/8 1-3/4 7 8
2-3/8 10.40 E EU NC31 4-1/8 2-1/8 7 9
2-3/8 10.40 X,G EU NC31 4-1/8 2 7 9
2-3/8 10.40 S EU NC31 4-3/8 1-5/8 7 9
3-1/2 9.50 E EU NC38 4-3/4 2-11/16 8 10-1/2
3-1/2 13.30 E EU NC38 4-3/4 2-11/16 8 10-1/2
3-1/2 13.30 X EU NC38 5 2-9/16 8 10-1/2
3-1/2 13.30 G EU NC38 5 2-7/16 8 10-1/2
3-1/2 13.30 S EU NC38 5 2-1/8 8 10-1/2
3-1/2 15.50 E EU NC38 4-3/4 2-9/16 8 10-1/2
3-1/2 15.50 X EU NC38 5 2-7/16 8 10-1/2
3-1/2 15.50 G EU NC38 5 2-1/8 8 10-1/2
3-1/2 15.50 S EU NC40 5-1/2 2-1/4 7 10
4 14.00 E IU NC40 5-1/4 2-13/16 7 10
4 14.00 X IU NC40 5-1/4 2-13/16 7 10
4 14.00 G IU NC40 5-1/4 2-13/16 7 10
4 14.00 S IU NC40 5-1/4 2-9/16 7 10
4 14.00 E EU NC46 6 3-1/4 7 10
4 14.00 X,G EU NC46 6 3-1/4 7 10
4 14.00 S EU NC46 6 3 7 10
4-1/2 16.60 E EU NC50 6-5/8 3-3/4 7 10
4-1/2 16.60 X EU NC50 6-3/8 3-3/4 7 10
4-1/2 16.60 G EU NC50 6-5/8 3-3/4 7 10
4-1/2 16.60 S EU NC50 6-3/8 3-1/2 7 10
4-1/2 20.00 E EU NC50 6-3/8 3-3/4 7 10
4-1/2 20.00 X EU NC50 6-5/8 3-1/2 7 10
4-1/2 20.00 G EU NC50 6-3/8 3-1/2 7 10
4-1/2 20.00 S EU NC50 6-5/8 3-1/4 7 10
4-1/2 16.60 E IEU NC46 6-1/4 3-1/4 7 10
4-1/2 16.60 X IEU NC46 6-1/4 3-1/4 7 10
4-1/2 16.60 G IEU NC46 6-1/4 3 7 10
4-1/2 16.60 S IEU NC46 6-1/4 2-3/4 7 10
4-1/2 20.00 E IEU NC46 6-1/4 3-1/4 7 10
4-1/2 20.00 X IEU NC46 6-1/4 3 7 10
4-1/2 20.00 G IEU NC46 6-1/4 2-3/4 7 10
4-1/2 20.00 S IEU NC46 6-3/8 2-1/2 7 10
5 19.50 E IEU NC50 6-5/8 3-3/4 7 10
5 19.50 X IEU NC50 6-5/8 3-1/2 7 10
5 19.50 G IEU NC50 6-5/8 3-1/4 7 10
5 19.50 S IEU NC50 6-5/8 2-3/4 7 10
5 19.50 E IEU 5-1/2FH 7 3-3/4 8 10
5 19.50 X,G IEU 5-1/2 FH 7 3-3/4 8 10
5 19.50 S IEU 5-1/2 FH 7-1/4 3-1/2 8 10
5 25.60 E NC50 6-5/8 3-1/2 3-3/4 7 10
5 25.60 X IEU NC50 6-5/8 3 7 10
5 25.60 G IEU NC50 6-5/8 2-3/4 7 10
5 25.60 E IEU 5-1/2 FH 7 3-1/2 8 10
5 25.60 X IEU 5-1/2 FH 7 3-1/2 8 10
5 25.60 G IEU 5-1/2 FH 7-1/4 3-1/2 8 10
5 25.60 S IEU 5-1/2 FH 7-1/4 3-1/4 8 10
5-1/2 21.90 E IEU 5-1/2 FH 7 4 8 10
5 21.90 X IEU 5-1/2 FH 7 3-3/4 8 10
5-1/2 21.90 G IEU 5-1/2 FH 7-1/4 3-1/2 8 10
5 21.90 S IEU 5-1/2 FH 7-1/2 3 8 10
5-1/2 24.70 E IEU 5-1/2 FH 7 4 8 10
5 24.70 X,G IEU 5-1/2 FH 7-1/4 3-1/2 8 10
5-1/2 24.70 S IEU 5-1/2 FH 7-1/2 3 8 10
6-5/8 25.20 E IEU 6-5/8 FH 8 5 8 11
6-5/8 25.20 X IEU 6-5/8 FH 8 5 8 11
6-5/8 25.20 G IEU 6-5/8 FH 8-1/4 4-3/4 8 11
6-5/8 25.20 S IEU 6-5/8 FH 8-1/2 4-1/4 8 11
6-5/8 27.70 E IEU 6-5/8 FH 8 5 8 11
6-5/8 27.70 X,G IEU 6-5/8 FH 8-1/4 4-3/4 8 11
6-5/8 27.70 S IEU 6-5/8 FH 8-1/2 4-1/4 8 11


Chemical composition and mechanical properties

Grade
 Chemical Composition
 Mechanical Properties
P S Yield Strength(Mpa)
 Tensile Strength(Mpa)
E-75
 ≤0.020
 ≤0.015
 517-724
 ≥689
X-95
 ≤0.020
 ≤0.015
 655-862
 ≥724
G-105
 ≤0.020
 ≤0.015
 724-931
 ≥793
S-135
 ≤0.020
 ≤0.015
 931-1138
 ≥1000

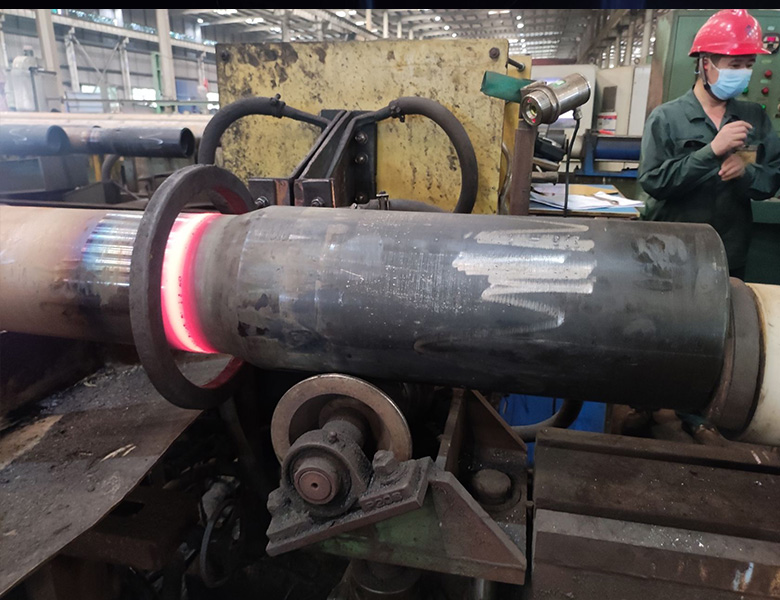

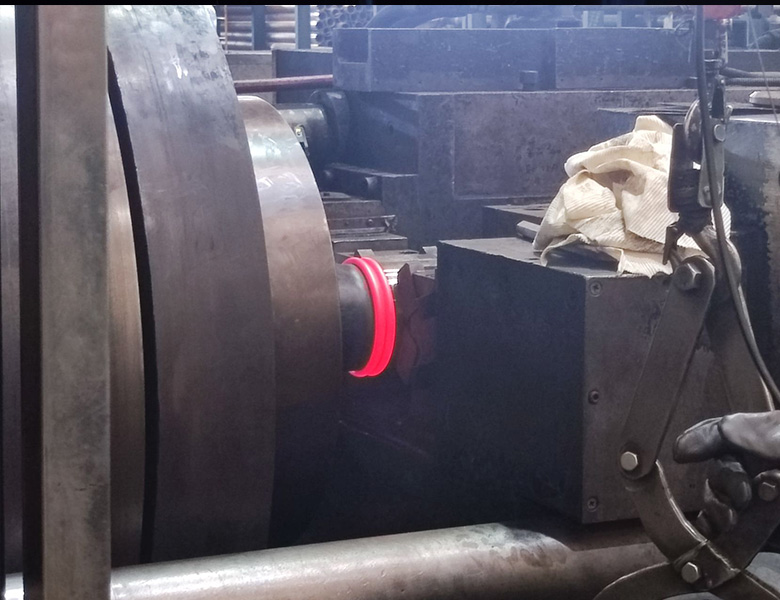

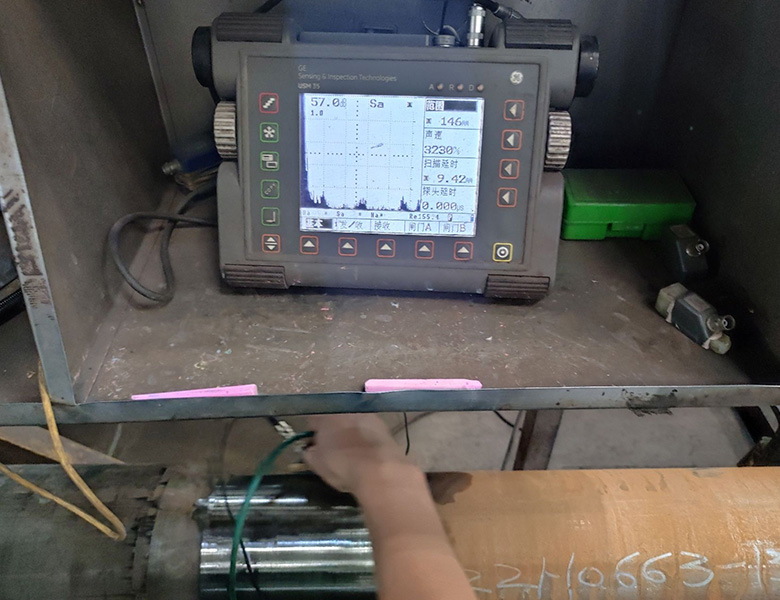

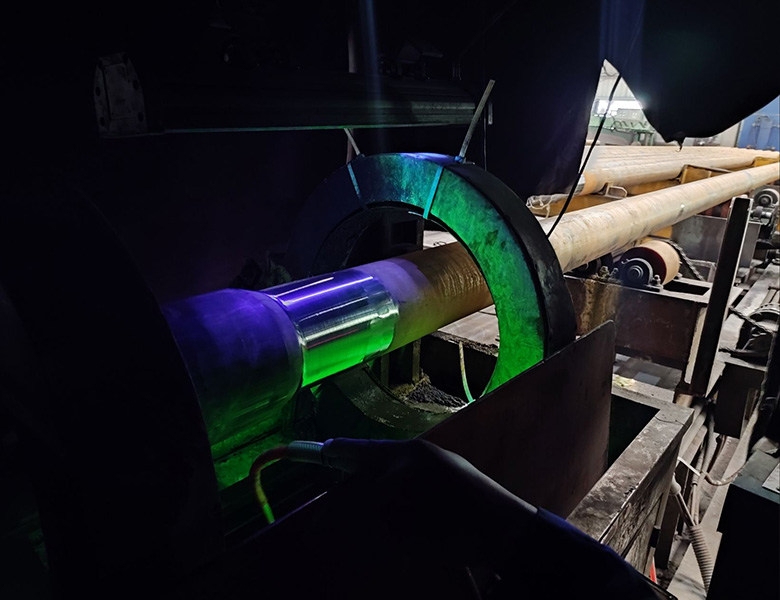

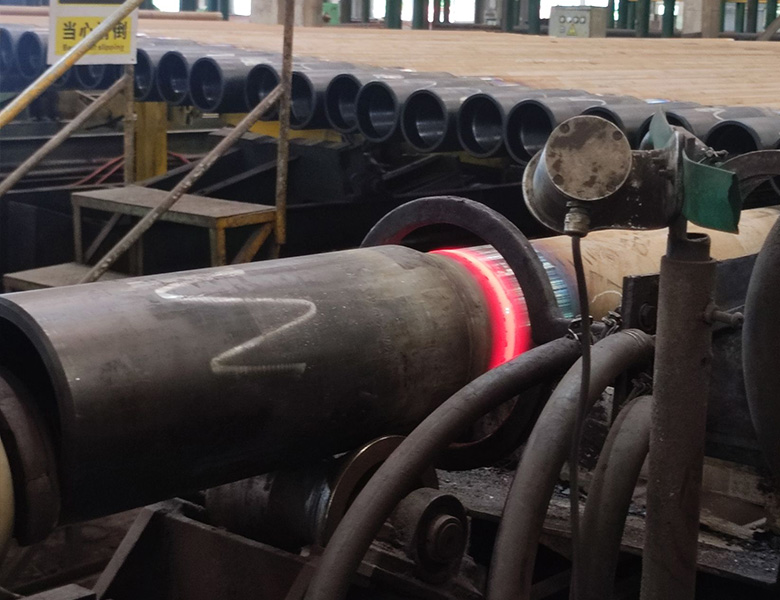

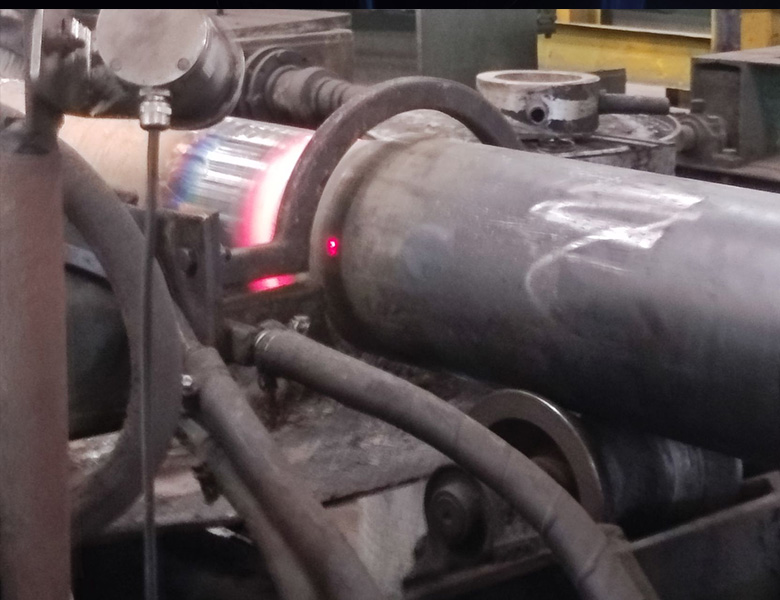

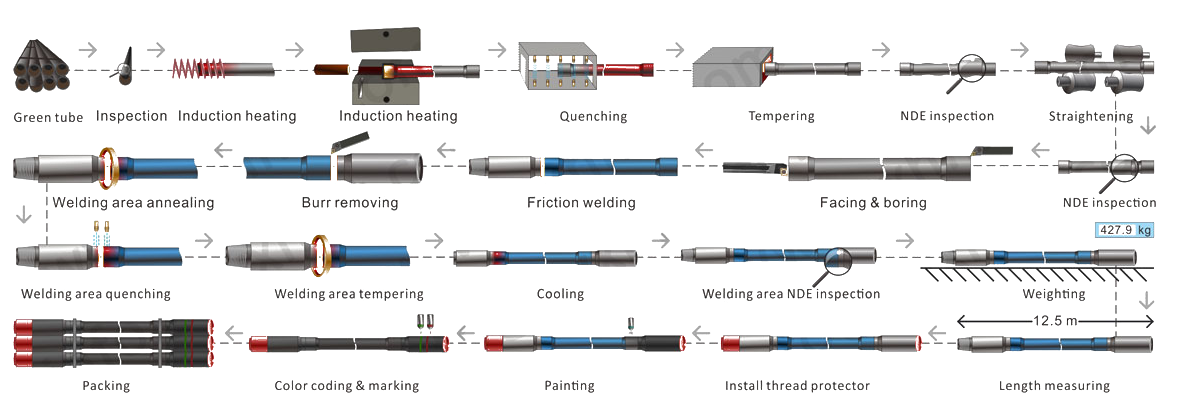

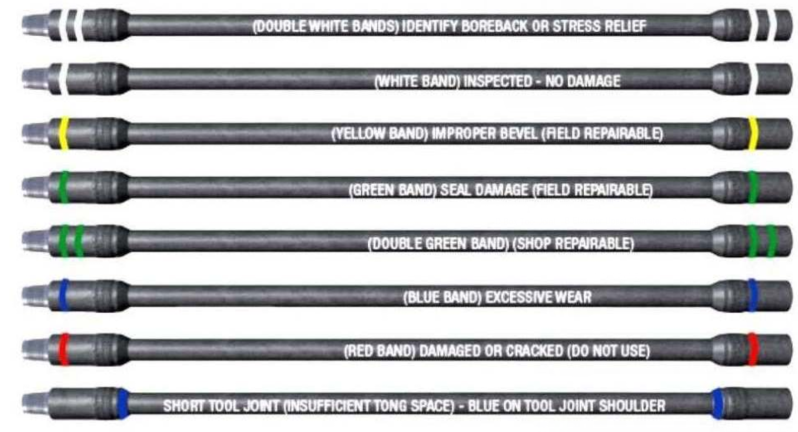

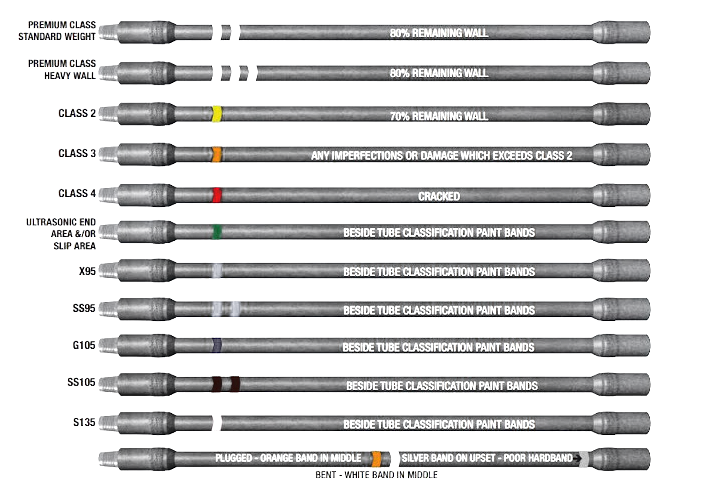

Production of drill pipe



Designations* Tool Joint Data
Pipebody OD (Inches) Poundage (Pounds Per Foot) Grade Upset Type Rotary Shouldered Connection OD (Inches) PIN ID (Inches) Pin OD Length* (Inches) Box OD Length* (Inches)
2-3/8 6.65 E EU NC26 3-3/8 1-3/4 7 8
2-3/8 6.65 X,G EU NC26 3-3/8 1-3/4 7 8
2-3/8 10.40 E EU NC31 4-1/8 2-1/8 7 9
2-3/8 10.40 X,G EU NC31 4-1/8 2 7 9
2-3/8 10.40 S EU NC31 4-3/8 1-5/8 7 9
3-1/2 9.50 E EU NC38 4-3/4 2-11/16 8 10-1/2
3-1/2 13.30 E EU NC38 4-3/4 2-11/16 8 10-1/2
3-1/2 13.30 X EU NC38 5 2-9/16 8 10-1/2
3-1/2 13.30 G EU NC38 5 2-7/16 8 10-1/2
3-1/2 13.30 S EU NC38 5 2-1/8 8 10-1/2
3-1/2 15.50 E EU NC38 4-3/4 2-9/16 8 10-1/2
3-1/2 15.50 X EU NC38 5 2-7/16 8 10-1/2
3-1/2 15.50 G EU NC38 5 2-1/8 8 10-1/2
3-1/2 15.50 S EU NC40 5-1/2 2-1/4 7 10
4 14.00 E IU NC40 5-1/4 2-13/16 7 10
4 14.00 X IU NC40 5-1/4 2-13/16 7 10
4 14.00 G IU NC40 5-1/4 2-13/16 7 10
4 14.00 S IU NC40 5-1/4 2-9/16 7 10
4 14.00 E EU NC46 6 3-1/4 7 10
4 14.00 X,G EU NC46 6 3-1/4 7 10
4 14.00 S EU NC46 6 3 7 10
4-1/2 16.60 E EU NC50 6-5/8 3-3/4 7 10
4-1/2 16.60 X EU NC50 6-3/8 3-3/4 7 10
4-1/2 16.60 G EU NC50 6-5/8 3-3/4 7 10
4-1/2 16.60 S EU NC50 6-3/8 3-1/2 7 10
4-1/2 20.00 E EU NC50 6-3/8 3-3/4 7 10
4-1/2 20.00 X EU NC50 6-5/8 3-1/2 7 10
4-1/2 20.00 G EU NC50 6-3/8 3-1/2 7 10
4-1/2 20.00 S EU NC50 6-5/8 3-1/4 7 10
4-1/2 16.60 E IEU NC46 6-1/4 3-1/4 7 10
4-1/2 16.60 X IEU NC46 6-1/4 3-1/4 7 10
4-1/2 16.60 G IEU NC46 6-1/4 3 7 10
4-1/2 16.60 S IEU NC46 6-1/4 2-3/4 7 10
4-1/2 20.00 E IEU NC46 6-1/4 3-1/4 7 10
4-1/2 20.00 X IEU NC46 6-1/4 3 7 10
4-1/2 20.00 G IEU NC46 6-1/4 2-3/4 7 10
4-1/2 20.00 S IEU NC46 6-3/8 2-1/2 7 10
5 19.50 E IEU NC50 6-5/8 3-3/4 7 10
5 19.50 X IEU NC50 6-5/8 3-1/2 7 10
5 19.50 G IEU NC50 6-5/8 3-1/4 7 10
5 19.50 S IEU NC50 6-5/8 2-3/4 7 10
5 19.50 E IEU 5-1/2FH 7 3-3/4 8 10
5 19.50 X,G IEU 5-1/2 FH 7 3-3/4 8 10
5 19.50 S IEU 5-1/2 FH 7-1/4 3-1/2 8 10
5 25.60 E NC50 6-5/8 3-1/2 3-3/4 7 10
5 25.60 X IEU NC50 6-5/8 3 7 10
5 25.60 G IEU NC50 6-5/8 2-3/4 7 10
5 25.60 E IEU 5-1/2 FH 7 3-1/2 8 10
5 25.60 X IEU 5-1/2 FH 7 3-1/2 8 10
5 25.60 G IEU 5-1/2 FH 7-1/4 3-1/2 8 10
5 25.60 S IEU 5-1/2 FH 7-1/4 3-1/4 8 10
5-1/2 21.90 E IEU 5-1/2 FH 7 4 8 10
5 21.90 X IEU 5-1/2 FH 7 3-3/4 8 10
5-1/2 21.90 G IEU 5-1/2 FH 7-1/4 3-1/2 8 10
5 21.90 S IEU 5-1/2 FH 7-1/2 3 8 10
5-1/2 24.70 E IEU 5-1/2 FH 7 4 8 10
5 24.70 X,G IEU 5-1/2 FH 7-1/4 3-1/2 8 10
5-1/2 24.70 S IEU 5-1/2 FH 7-1/2 3 8 10
6-5/8 25.20 E IEU 6-5/8 FH 8 5 8 11
6-5/8 25.20 X IEU 6-5/8 FH 8 5 8 11
6-5/8 25.20 G IEU 6-5/8 FH 8-1/4 4-3/4 8 11
6-5/8 25.20 S IEU 6-5/8 FH 8-1/2 4-1/4 8 11
6-5/8 27.70 E IEU 6-5/8 FH 8 5 8 11
6-5/8 27.70 X,G IEU 6-5/8 FH 8-1/4 4-3/4 8 11
6-5/8 27.70 S IEU 6-5/8 FH 8-1/2 4-1/4 8 11
