Steel pipes for agricultural irrigation

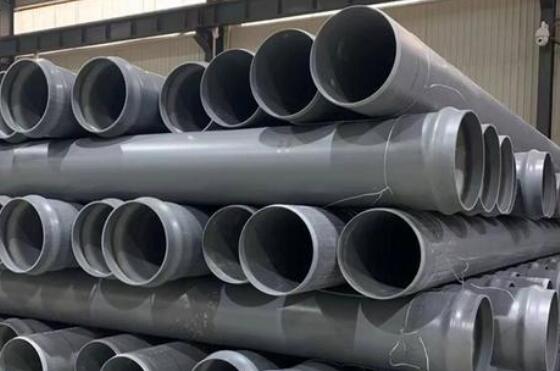

Irrigation pipe, material PVC. PVC resin powder-based raw materials, adding appropriate amount of additives, by mixing, extrusion, sizing, cutting and flaring and other processing technology molding.

Irrigation pipe features:
1, The flow resistance is small, the roughness is 0.008-0.009, the water delivery capacity is increased by 20% compared with the cast iron pipe, the concrete pipe is increased by 40%.
2, High tensile strength, 23 ℃ when the tensile strength of not less than 45MPA.
3, Good compression, pressure to the outer diameter of 1/2 will not break, good mechanical properties.
4, Light weight, easy shipping, PVC-U pipe only the proportion of 1/5 of steel cast iron, concrete 1/2, pipe weight about the same specifications, with the length of ductile iron pipe 1/4, concrete 1/10 Low shipping fee 1/2-1/3.
5, Pipe health non-toxic, no secondary pollution flows, will not produce secondary pollution of water quality; irrigation pipe in a stable temperature and pressure, the service life of not less than 50 years.

Pipe is an important part of pipeline water supply irrigation system, and its investment proportion generally accounts for about 70-80% of the total project investment, which directly affects the quality and cost of pipe irrigation projects.

Technical requirements of irrigation pipe :
1. Withstand the design pressure of work. The allowable working pressure of the pipe should be 1.5 times of the maximum normal working pressure of the pipe. When the pipeline may have a larger water hammer pressure, the allowable working pressure of the pipe should not be less than the maximum pressure when the water hammer.
2. Tube wall to be uniform, wall thickness error should not exceed 5%.
3. Buried underground pipe under the action of agricultural machinery and vehicles and other external loads under the radial deformation rate of not more than 5%.
4. Meet the requirements of transportation and construction, can withstand some local subsidence stress.
5. Pipe wall smooth, no visible internal and external cracks, resistant to chemical soil erosion, anti-aging, the service life to meet the design requirements.
6. Pipe and fittings easy to connect, the connection should meet the work pressure, bending, leakage resistance, strength, stiffness and safety requirements.
7. Mobile pipe to light, collision-resistant, resistant to friction, not easy to be punctured and anti-aging properties such as good.
8. When the delivery of water flow has special requirements, should also consider the special needs of the pipe. Such as irrigation and drinking water pipes, to meet the requirements of transporting drinking water.
